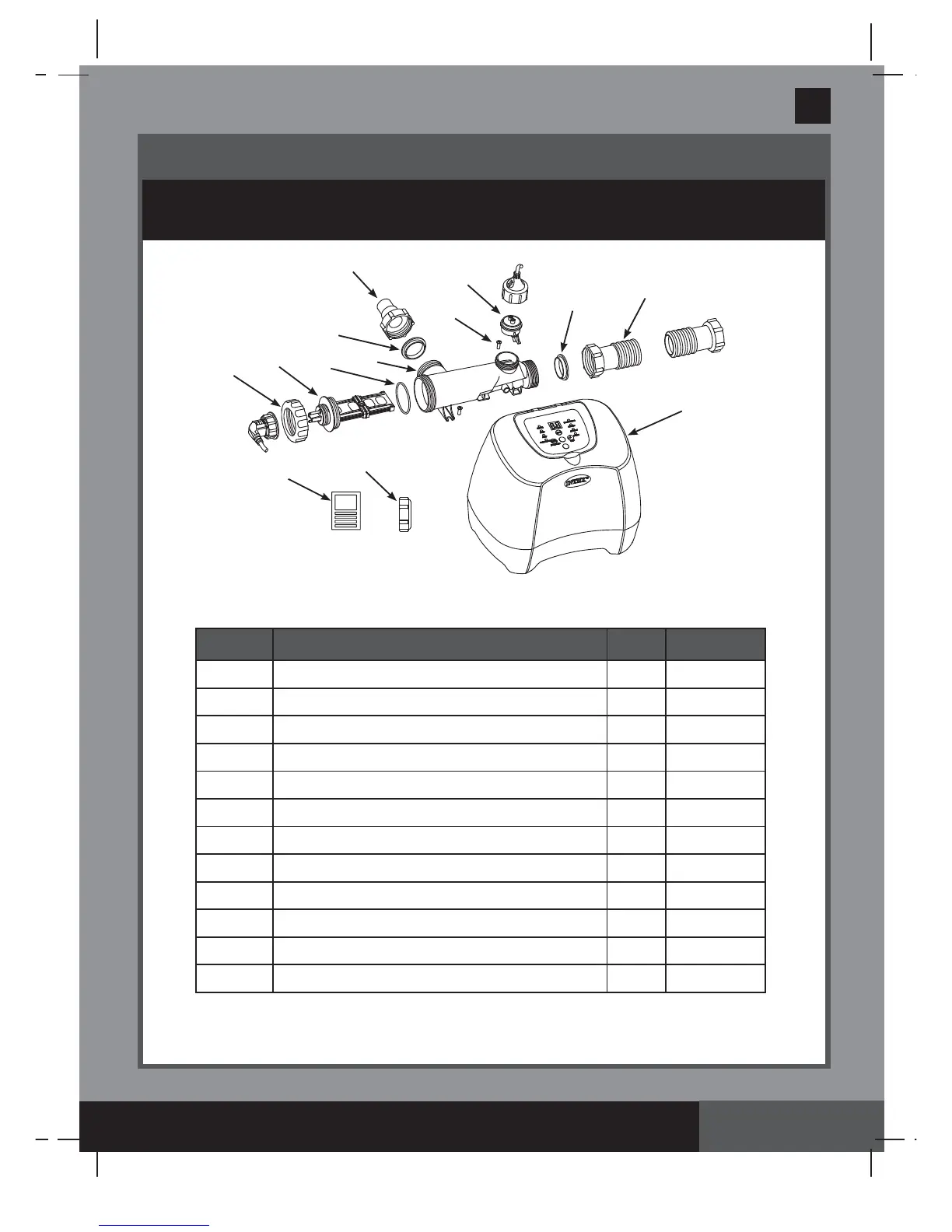

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE:
Drawings for illustration purpose only. Actual product may vary. Not to scale.
When ordering parts, be sure to quote the model number and part numbers.
4
1
3
9
8
7
6
5
2
10
2
12
11
REF. NO. DESCRIPTION QTY.
SPARE
PART NO.
1 ADAPTOR A WITH THREADED COLLAR (OPTIONAL) 1 10849
2 L-SHAPE O-RING 2 11228
3 SCREW 2 11519
4 TITANIUM ELECTRODE NUT 1 11432
5
TITANIUM ELECTRODE 1 11374
6 O-RING ON TITANIUM PLATES 1 11515
7 FLOW SENSOR 1 11460
8 CONNECTOR HOSE WITH THREADED FITTINGS 1 10720
9
ELECTROLYTIC CELL HOUSING 1 12663
10 CONTROL STATION 1 12661
11 CELL COVER 2 11131
12 TEST STRIPS 1 19635
