PRODUCT SPECIFICATIONS
SETUP INSTRUCTIONS
The sand filter removes suspended particles but does not sanitize your pool. Pool chemistry
is a specialized area and you should consult your local pool service specialist for details.
TOOLS REQUIRED: One (1) Phillips screwdriver
Pump location and mounting:
• The system must be installed on a solid level and vibration-free base.
• Provide a location protected from the weather, moisture, flooding and freezing
temperature.
• Provide adequate access, space and lighting for routine maintenance.
• Pump motor requires free circulation of air for cooling. Do not install the pump in a
damp or non-ventilated location.
A team of 2 or more people is recommended for setting up this product.
Sand tank installation:
1.
Place the tank support base at the selected location.
2.
Place the tank on the tank support base

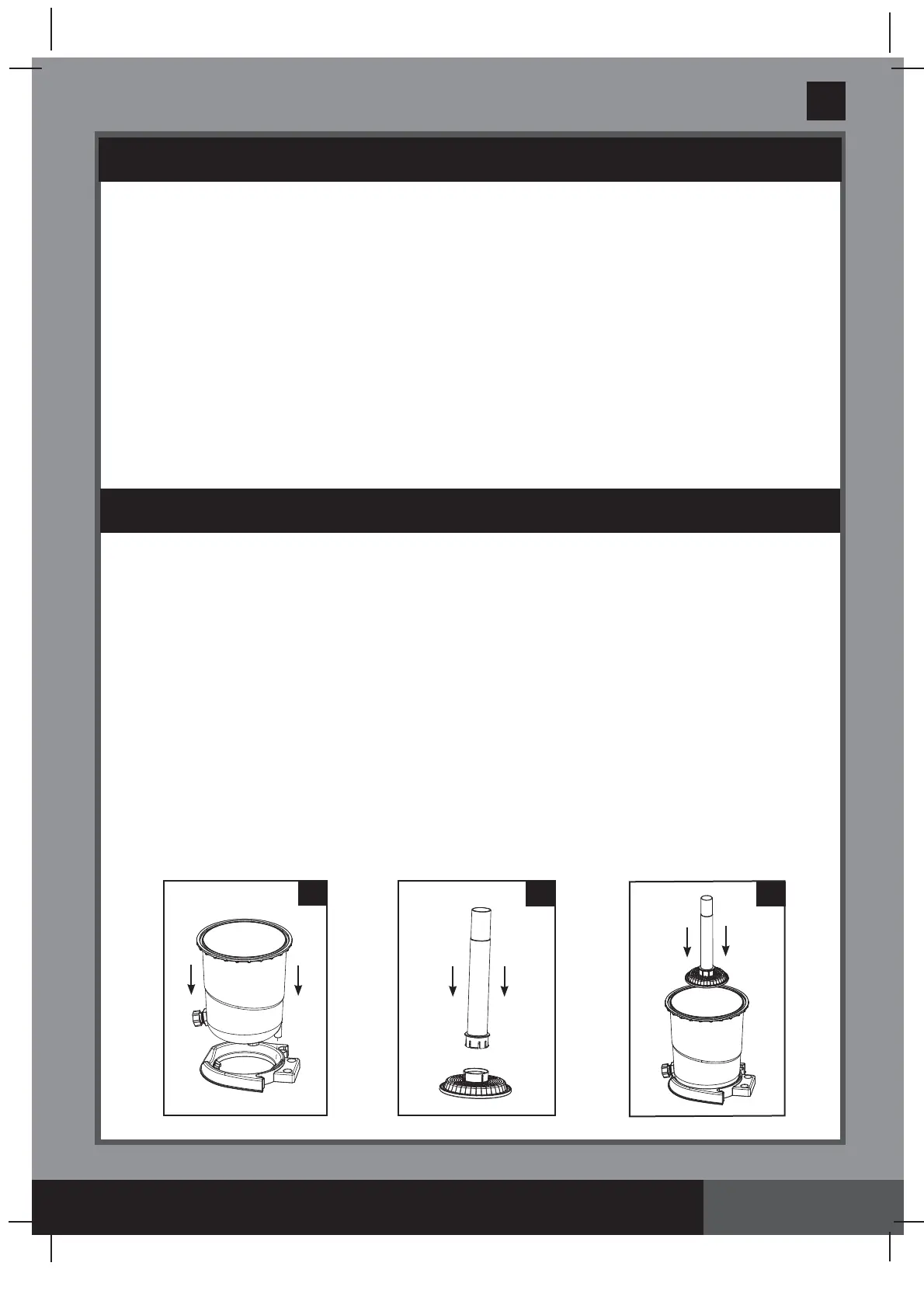

(see drawing 1)
.
3.
Vertically insert the center pipe into the filter grid
(see drawing 2.1)
.
4.
Vertically insert the filter grid and center pipe assembly into the tank. Ensure filter grid
assembly is securely fitted to the bottom of the tank, and the center pipe is vertically
centered inside the tank
(see drawing 2.2)
.
Power: 110-120 Volt AC
Amperage: 0.8 A
Maximum working pressure: 1.0 bar (15 psi)
Effective filtering area: 0.03 m
2
(0.35 ft
2
)
Maximum Flow Rate: 2 m
3
/h (550 GPH)
Recommended filtering media: No. 20 silica sand or glass sand. Particle size
(Not included) range 0.45 to 0.85 mm (0.018 to 0.033 inches).
Uniformity Coefficient less than 1.75.
Recommended filtering media quantity: No. 20 silica sand 6.5 Kg (14.5 Lbs) or glass sand
5.0 Kg (11 Lbs).
Limited Warranty: see “Limited Warranty”
2.1
1
2.2
