106
GS
SAVE THESE INSTRUCTIONS
(106GS) MODEL 638G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 09/15/2017
English
Page 4

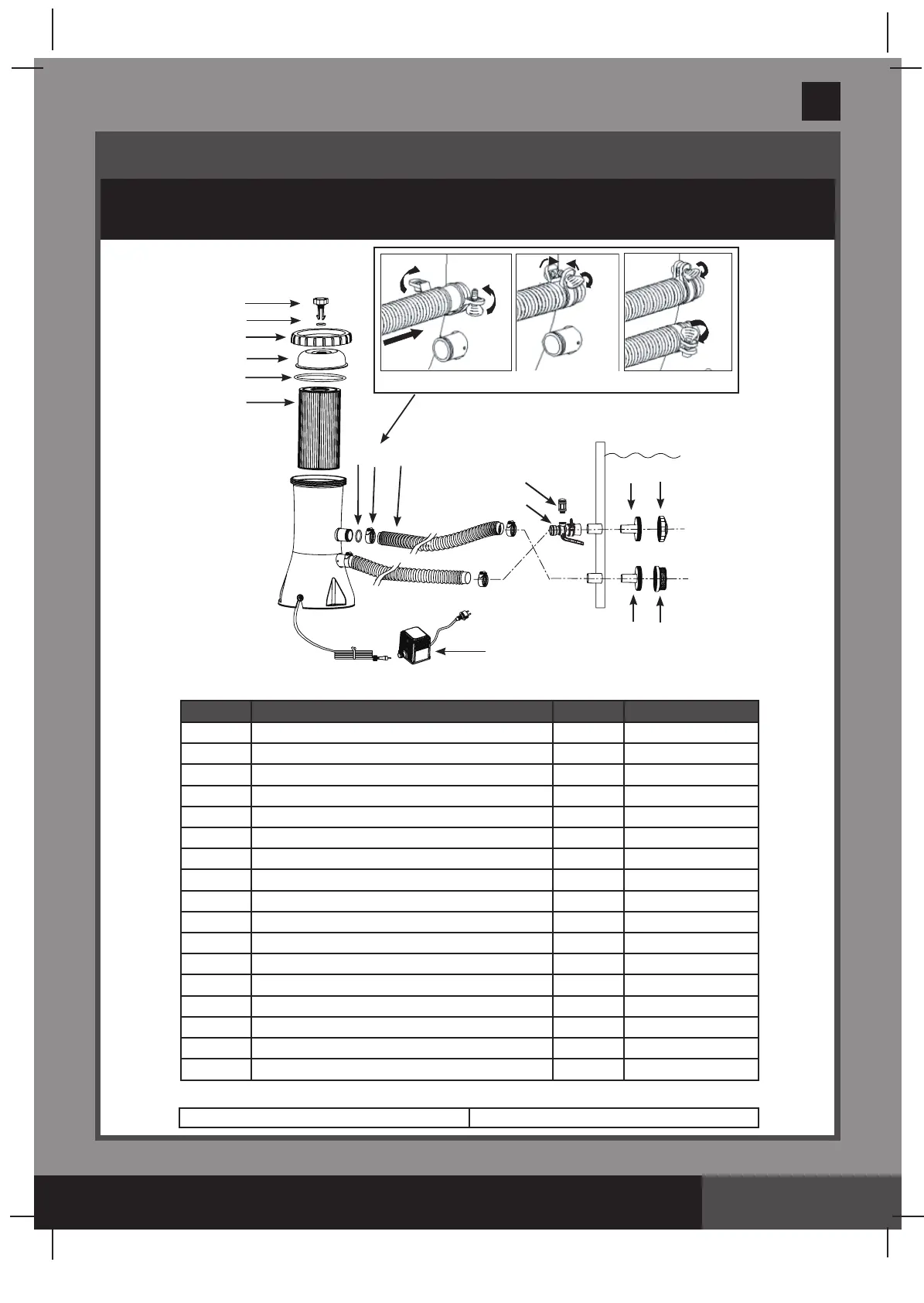

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
1
2
3
4
5
6
7
8
14
9
12
11
10
ABC
13
15
16
When ordering parts, be sure to quote the model number and part numbers.
No tools are required for the assembly.
REF. NO.
DESCRIPTION QTY. SPARE PART NO.
1 AIR RELEASE VALVE 1 10460
2 VALVE O-RING 1 10264
3 FILTER HOUSING COVER 1 11868
4 COVER SEAL 1 10325
5 FILTER CARTRIDGE (29000) 1
6 HOSE SEAL 2 10134
7 HOSE CLAMP 4 11489
8 HOSE 2 10116
9 STRAINER CONNECTOR 1 11070
10 POOL INLET JET NOZZLE 1 12364
11 STRAINER GRID 1 12197
12 TRANSFORMER 1 11648
13 THREADED FILTER HOUSING COLLAR 1 11869
14 INLET STRAINER CONNECTOR 1 12365
*15 AIR JET VALVE 1 12363
*16 POOL INLET AIR ADAPTOR 1 12368
*17 AIR JET VALVE CAP (NOT SHOWN) 1 12373
Type of lter medium Synthetic cartridge #29000
" * ": Optional.
