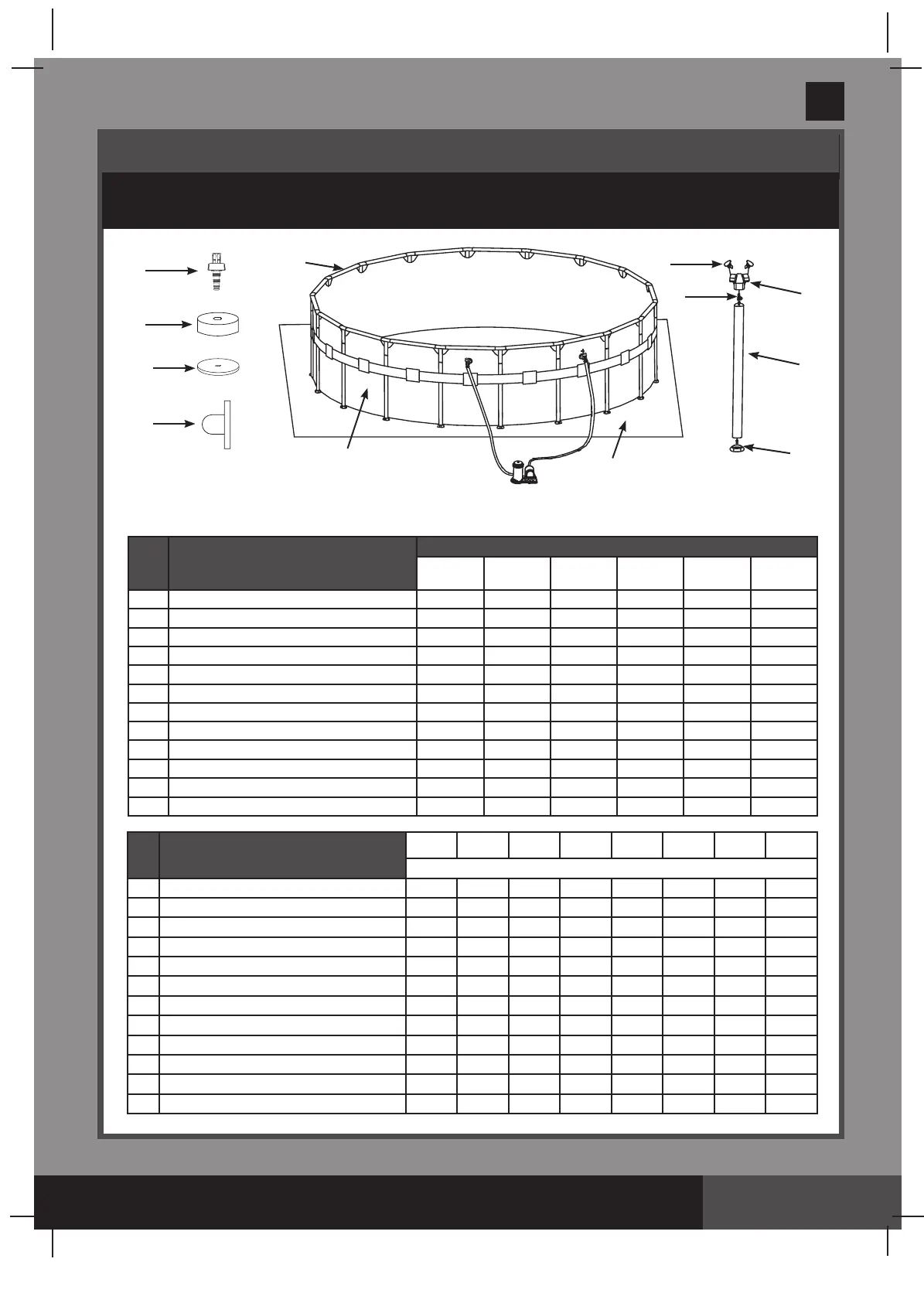

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
14' (427 cm), 16' (488 cm), 18' (549 cm), 20’ (610 cm), 22' (671 cm) & 24' (732 cm) models
NOTE:
Drawings for illustration purpose only. Actual product may vary. Not to scale.
REF
NO.
DESCRIPTION
14’ x 42” (427
cm x 107cm)
14’ x 48” (427
cm x 122cm)
16’ x 48” (488
cm x 122cm)
18’ x 48” (549
cm x 122cm)
18’ x 52” (549
cm x 132cm)
20’ x 52” (610
cm x 132cm)
22’ x 52” (671
cm x 132cm)
24’ x 52” (732
cm x 132cm)
SPARE PART NO.
1
T - JOINT
12423 12423 12427 12427 12427 12427 12427 12427
2
VERTICAL LEG
12425 12426 12429 12429 12430 12430 12430 12430
3
LEG CAP
11361 11361 11453 11453 11453 11453 11453 11453
4
HORIZONTAL BEAM
12424 12424 12428 12428 12428 12428 12428 12428
5
POOL LINER (DRAIN VALVE CAP INCLUDED)
12440 12441 12434 12435 12436 12437 12438 12439
6
VERTICAL LEG SPRING PIN
12432 12432 12432 12432 12432 12432 12432 12432
7
GROUND CLOTH
18932 18932 18927 18933 18933 11290 11510 18935
8
DRAIN CONNECTOR
10201 10201 10201 10201 10201 10201 10201 10201
9
DRAIN VALVE CAP
10649 11044 11044 11044 11044 11044 11044 11044
10
POOL COVER
11054 11054 10754 18937 18937 11289 11509 18929
11
STRAINER HOLE PLUG (WITH 1 EXTRA)
10127 10127
12
T - JOINT SPRING PIN
12433 12433 12431 12431 12431 12431 12431 12431
REF
NO.
DESCRIPTION
POOL SIZE &
QUANTITIES
14’
(427cm)
16’
(488cm)
18’
(549cm)
20’
(610cm)
22’
(671cm)
24’
(732cm)
1
T - JOINT
14 16 18 20 22 24
2
VERTICAL LEG
14 16 18 20 22 24
3
LEG CAP
14 16 18 20 22 24
4
HORIZONTAL BEAM
14 16 18 20 22 24
5
POOL LINER (DRAIN VALVE CAP INCLUDED)
1 1 1 1 1 1
6
VERTICAL LEG SPRING PIN
14 16 18 20 22 24
7
GROUND CLOTH
1 1 1 1 1 1
8
DRAIN CONNECTOR
1 1 1 1 1 1
9
DRAIN VALVE CAP
1 1 2 2 2 2
10
POOL COVER
1 1 1 1 1 1
11
STRAINER HOLE PLUG (WITH 1 EXTRA)
3
12
T - JOINT SPRING PIN
28 32 36 40 44 48
1
2
3
4
5
7
12
6
8
9
10
11
