132
Model Input reactor Output reactor
GD20-022G-4 ACL2-022-4 OCL2-022-4
GD20-030G-4 ACL2-030-4 OCL2-030-4
GD20-037G-4 ACL2-037-4 OCL2-037-4
GD20-045G-4 ACL2-045-4 OCL2-045-4
GD20-055G-4 ACL2-055-4 OCL2-055-4
GD20-075G-4 ACL2-075-4 OCL2-075-4
GD20-090G-4 ACL2-110-4 OCL2-110-4
GD20-110G-4 ACL2-110-4 OCL2-110-4
Note:
The rated derate voltage of the input reactor is 2%±15%.The rated derate voltage of the output reactor is
1%±15%. Above options are external, the customer should indicate when purchasing.
C.6 Filter

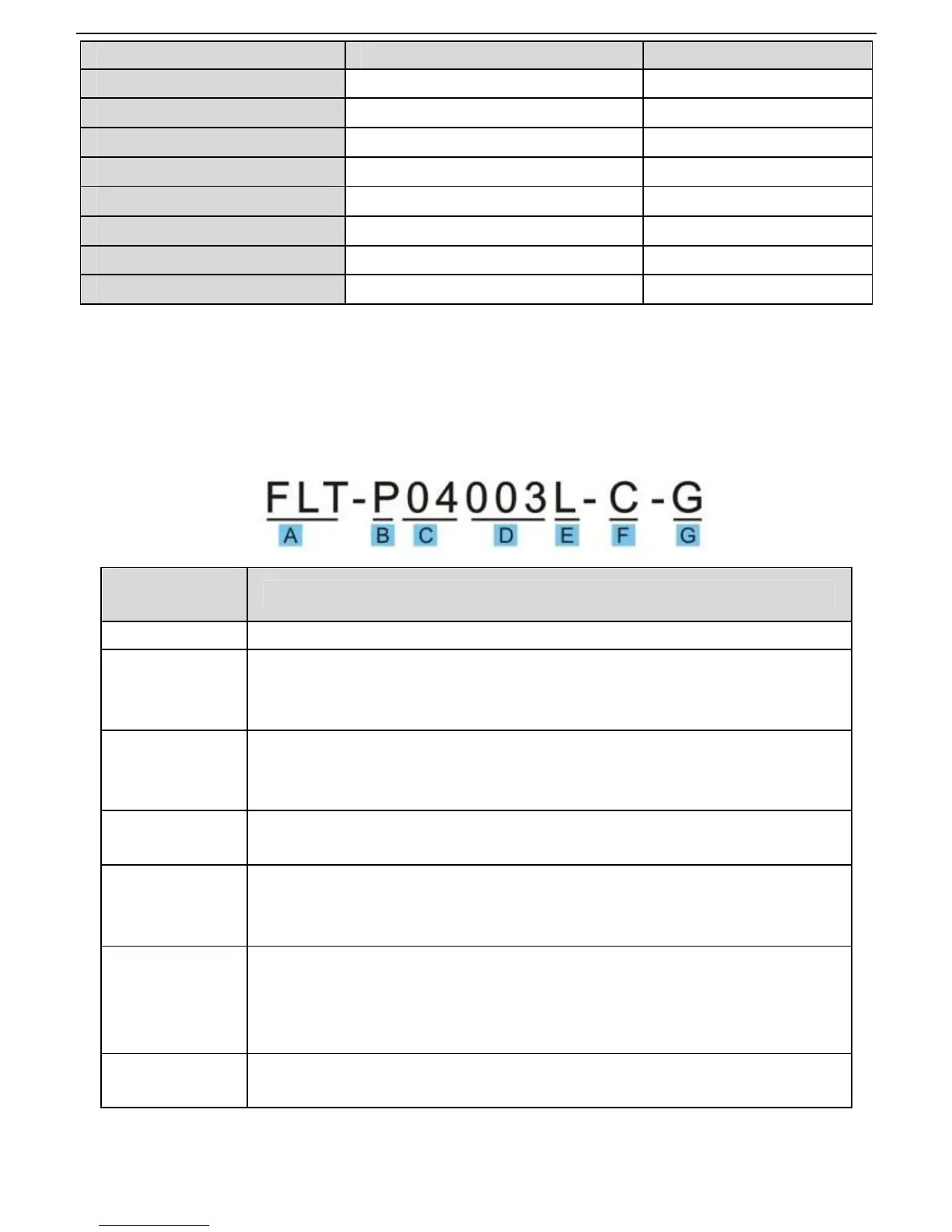

C.6.1 C3 Filter type instruction
Character
designation
Detailed instruction
A FLT:inverter filter series
B
Filter type
P:power supply filter
L:output filter
C
Voltage degree
S2：AC 1PH 220V(-15%)~240V(+10%)
04: AC 3PH 380V (-15%)~440V(+10%)
D
3-digit development serial number. For example, 003 stands for the serial
number of C3 filters in development
E
Installation type
L: Common type
H: High performance type
F
Utilization environment of the filters
A:the first envirtonment (IEC61800-3:2004) category C1 (EN 61800-3:2004)
B:the first envirtonment (IEC61800-3:2004) category C2 (EN 61800-3:2004)
C:the second envirtonment (IEC61800-3:2004) category C3 (EN 61800-3:2004)
G
Lot No.
G: Special for external C3 filter
