6A – 136 ENGINE MECHANICAL
RTW36ASH000601

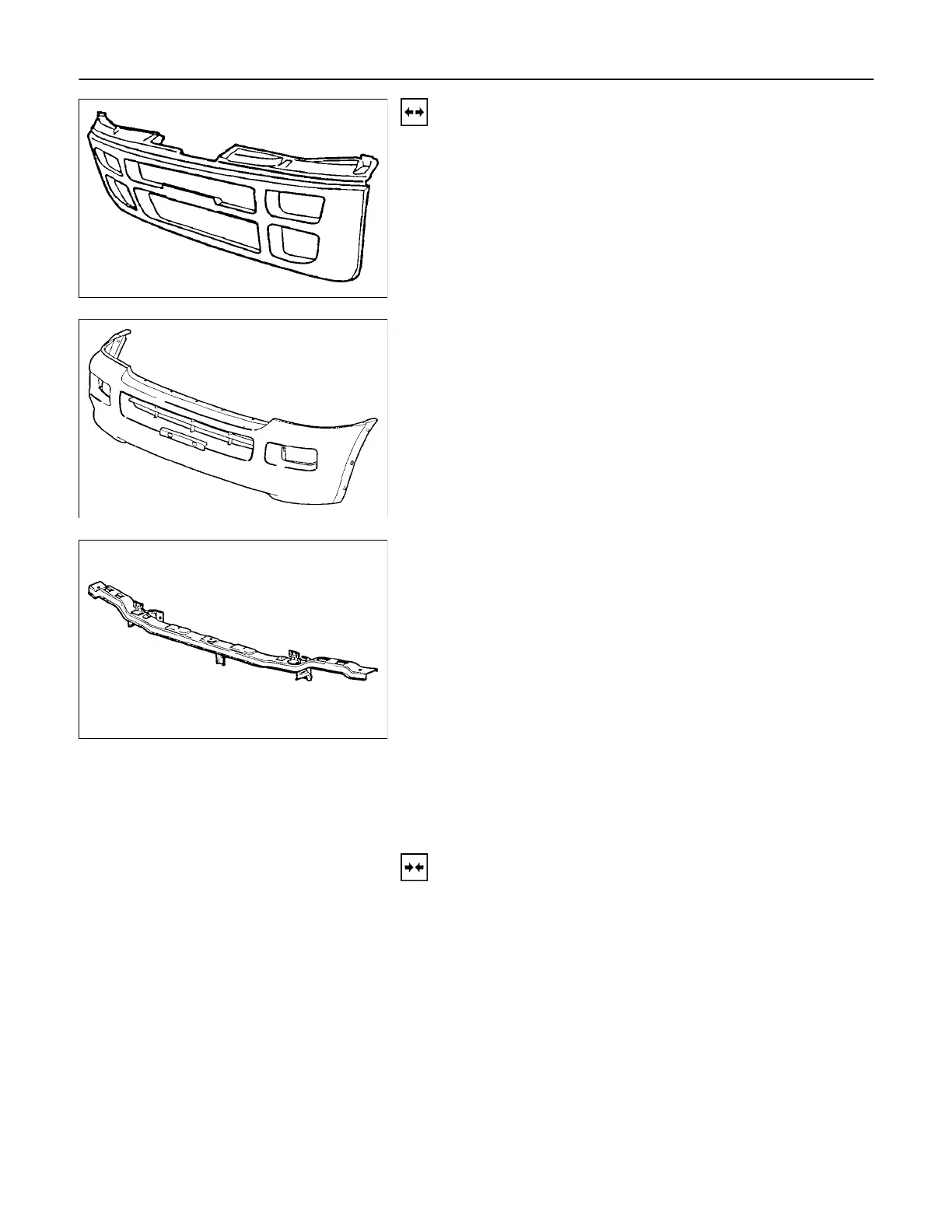

Removal
1. Radiator Grille
• Refer to removal procedure in Sheet Metal section.
RTW36ASH000501
2. Front Bumper Fascia
• Remove the nine clips and four screws.
• Disconnect the fog light harness connectors.
RTW46ASH002101
3. Front Bumper Impact Support Assembly
• Remove the nut and two bolts.
4. Inter Cooler
• Remove the nut and two bolts.
• Disconnect the air hose.
Installation
4. Inter Cooler
• Tighten the nut and two bolts.
3. Front Bumper Impact Support Assembly
• Tighten the nut and two bolts.
2. Front Bumper Fascia
• Install the nine clips and four screws.
• Connect the fog light harness connectors.
1. Radiator grille
• Refer to installation procedure in Sheet Metal section.
