Inspection and Installation
Copyright © Itech Electronic Co., Ltd. 3
1.3 Adjustment of Handle
IT6800A/B series power supply are equipped with a handle for user to easily
carry and place it.

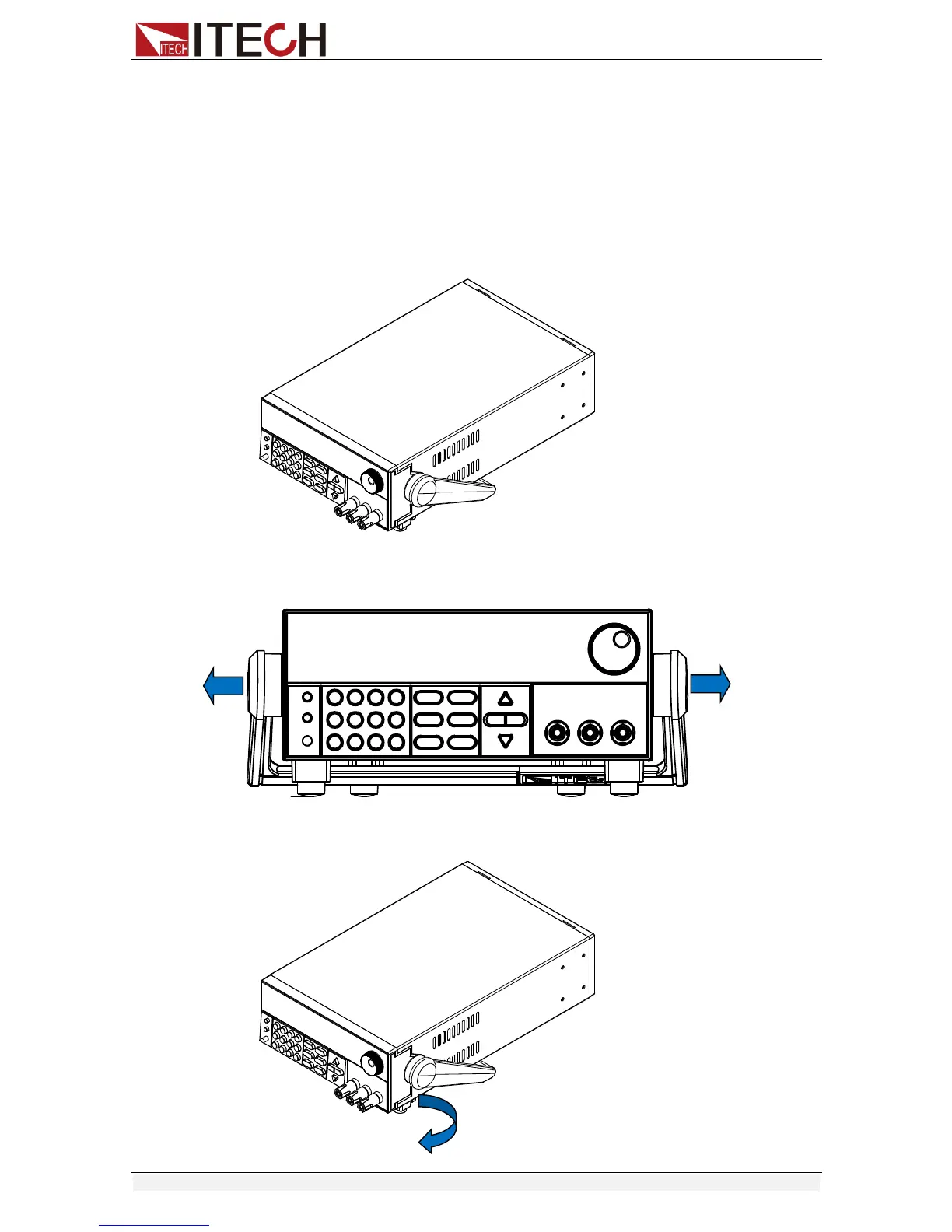

The power supply handle may be adjusted based on three methods (as shown
in icons below). Be sure that appropriate force is applied to adjust the power
supply handle to appropriate position. (Take the example of IT6862A)
Horizontal placement
Place the instrument on the desk horizontally.
Adjustment
Adjust the power supply handle to the state of rotation.
Adjust the power supply handle to appropriate position.
To Next Page
