SERVICE MANUAL
D-1

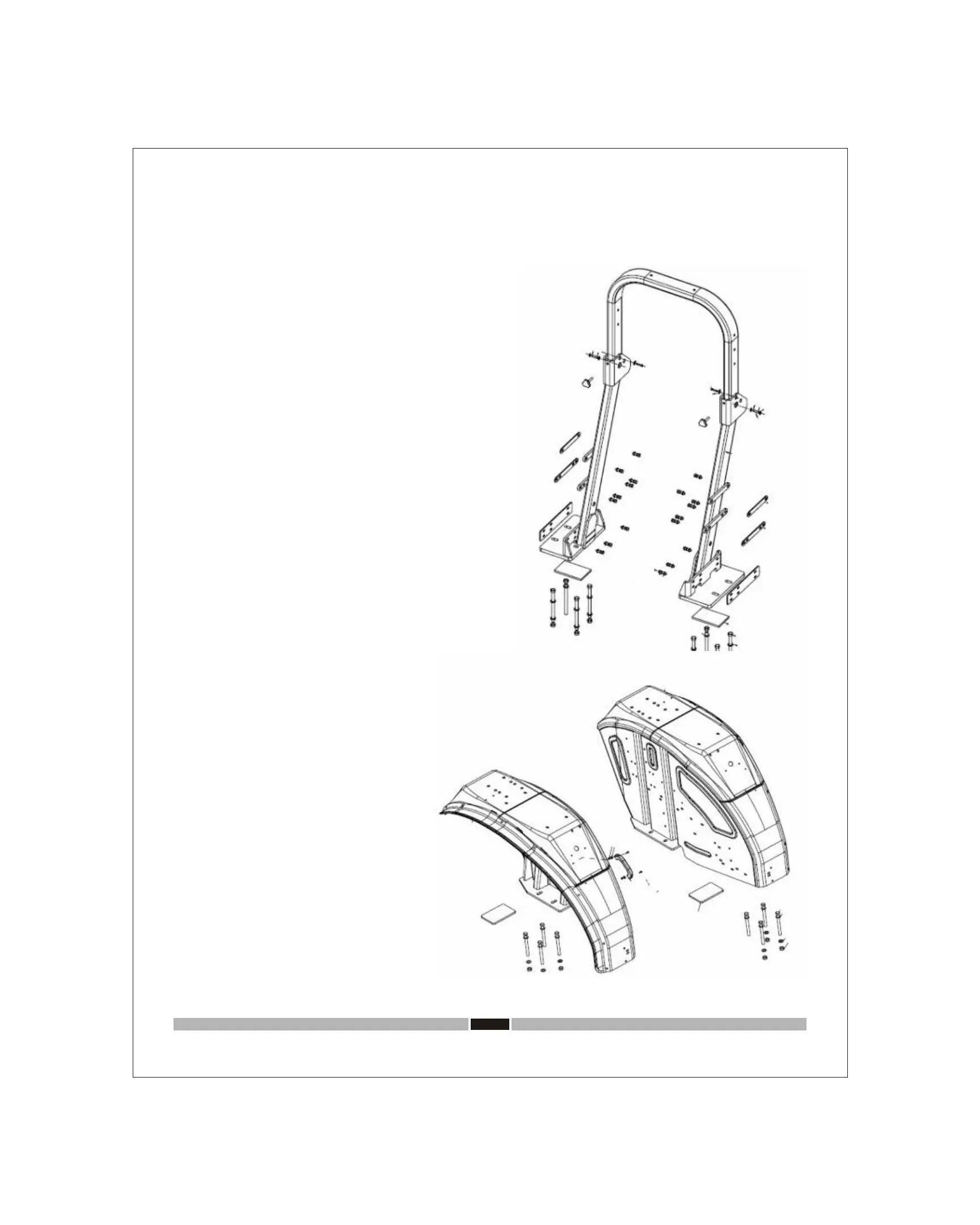

Dismantling of Canopy
For removing the canopy from the tractor remove hex
bolts and hex M10x1.5x40, and stud mtg with trumpet
housing size M16X1.5.And remove all the pins fitted on
canopy.
Assembling of Canopy
To assemble canopy on tractor ensure that rubber pads
are Fit on both of the sides of Trumpets Housing, Fit hex
bolts M10x1.5x40, and stud mtg with trumpet housing
size M16X1.5.And fit all the pins fitted on canopy.
Disassembling of Fender assembly
To dismantle fender assembly remove
Nut/bolts M10x1.5x40, and stud size M16X1.5.
Assembling of Fender assembly
To assemble fender assembly keep rubber pads on
trumpet housing fit Nut/bolts M10x1.5x40, and stud
size M16X1.Ensure all nut/bolts are properly tighted.
D 1A. SHEET METAL
ITL
To Next Page
