USER MANUAL NG
The NG machines with air-cooler condenser take the air through the front section, and drive it off through the
lateral, back and also front louvers due to their new oblique condenser structure and placement. Do not place
anything over the maker or in facing the front louver.
In case the front louver is not enough, the exit is either total or partially obstructed or due to its placement it
will receive hot air from another device, we recommend, in case it is not possible to change the location of
the machine, to install a water condenser unit.
The location must allow enough clearance for water, drain and electrical connections in the rear of the ice
machine.
IT IS IMPORTANT THAT THE WATER PIPING DO NOT PASS BY OR NEAR SOURCES OF HEAT IN
ORDER NOT TO LOSE ICE PRODUCTION.

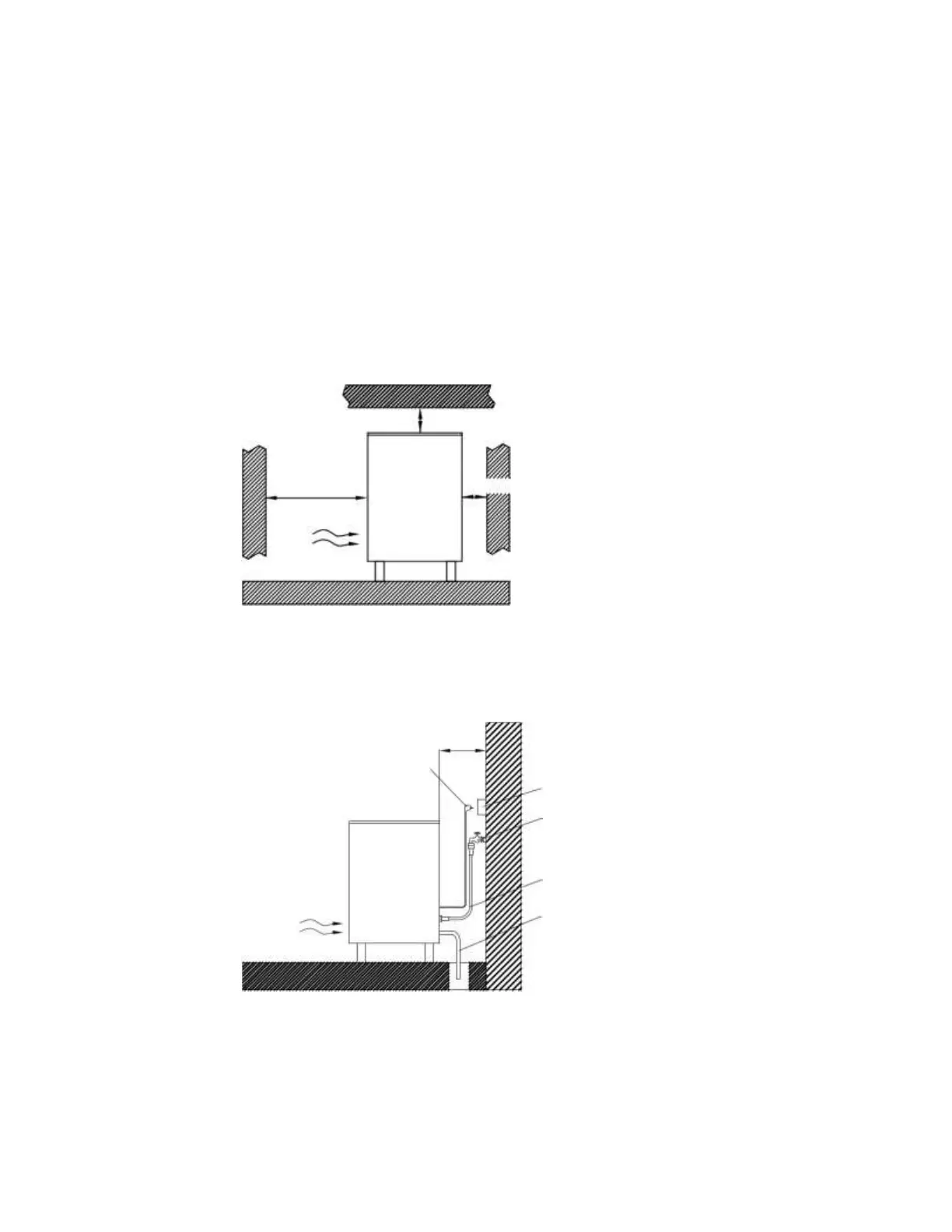

MINIMUM DISTANCE TO OBSTACLES
Side View
>5cm / >2”
>75cm / >29”
>10cm / >4”
* There’s no minimum distance to obstacles in the sides of the machine
CONNECTION DIAGRAM
>10cm
>4”
Plug
Socket
Tap
Water connection hose
Discharge hose
Thread the support legs to the base of the machine in the housing set to such end and regulate the height as
to have the equipment perfectly levelled.
