8
All dimensions in millimetres with inch equivalents in brackets.

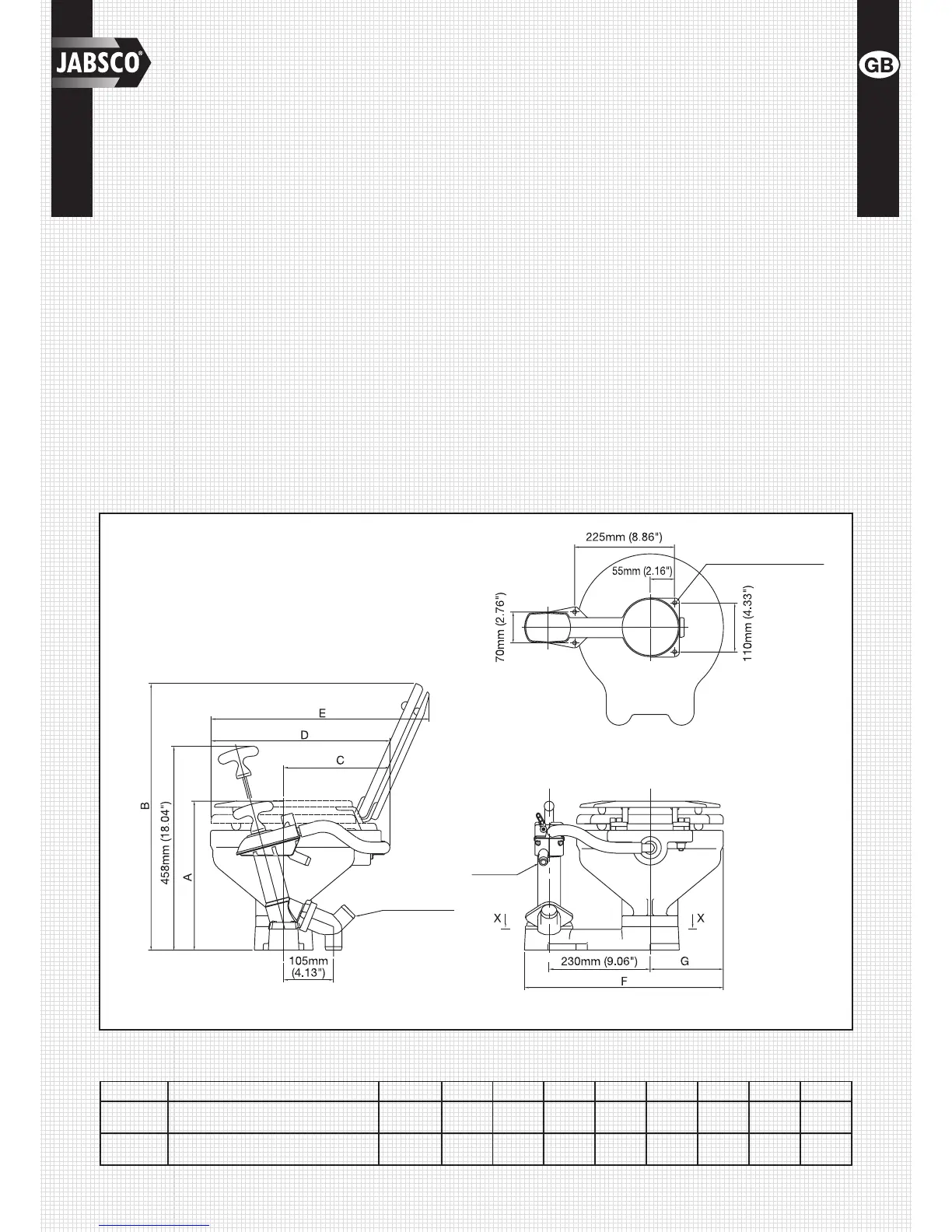

Dimensions and Weights
Trouble Shooting
Bowl fills when toilet not •
in use
Shut Seacocks.-
Fit Vented Loops-
Waste water re-appears •
in bowl
Check Bottom Valve Gasket -
(16) and Joker Valve (33).
Bowl does not empty & •
difficult to push handle
down
Open Outlet Seacock.-
Fully shut Flush Control Lever -
(23).
Check Joker Valve (33), -
Discharge Hose or Outlet
Seacock for blockage.
•
Bowl does not empty
and difficult to pull
handle up
Remove pump and check for -
blockage.
Bowl does not empty •
although handle is easy
to push & pull
Check Piston O-ring (30), -
Bottom
Valve Gasket (16) &
Joker Valve (33).
•
Water does not come in
and handle springs up if
pushed down
Open Inlet Seacock.-
Fully open Flush Control -
Lever (23).
Water does not come in •
although handle is easy
to push and pull
Open Flush Control Lever -
(23).
Check Top Valve Gasket (21) -
and Piston O-ring (30).
Check Inlet Hose connections -
are airtight.
•
Flush water is slow to
appear during pumping
Shorten Inlet Hose from main -
Seacock.
Do not fit Vented Loop -
between Inlet Seacock &
Pump
Fit between Pump & Bowl.-
Fit Non-Return Valve (29295--
1011) next to Inlet Seacock.
View X-X outline
(showing base fixing holes)
Diam. 19mm
(0.75") I.D.
Hose inlet
Diam. 38mm (1.5")
I.D. Hose outlet
(multi angle)
4 holes Diam. 9mm (0.35")
Model No Description Net Weight A B C D E F G
29090-3000 MANUAL TOILET COMPACT BOWL 9.5kg
(21lb)
335
(13.19)
615
(24.21)
247
(9.72)
425
(16.73)
485
(19.09)
450
(17.72)
165
(6.50)
mm
(ins)
29120-3000 MANUAL TOILET REGULAR BOWL 10.9kg
(24lb)
345
(13.58)
700
(27.56)
280
(11.02)
490
(19.29)
580
(22.83)
465
(18.31)
180
(7.09)
mm
(ins)
