dB

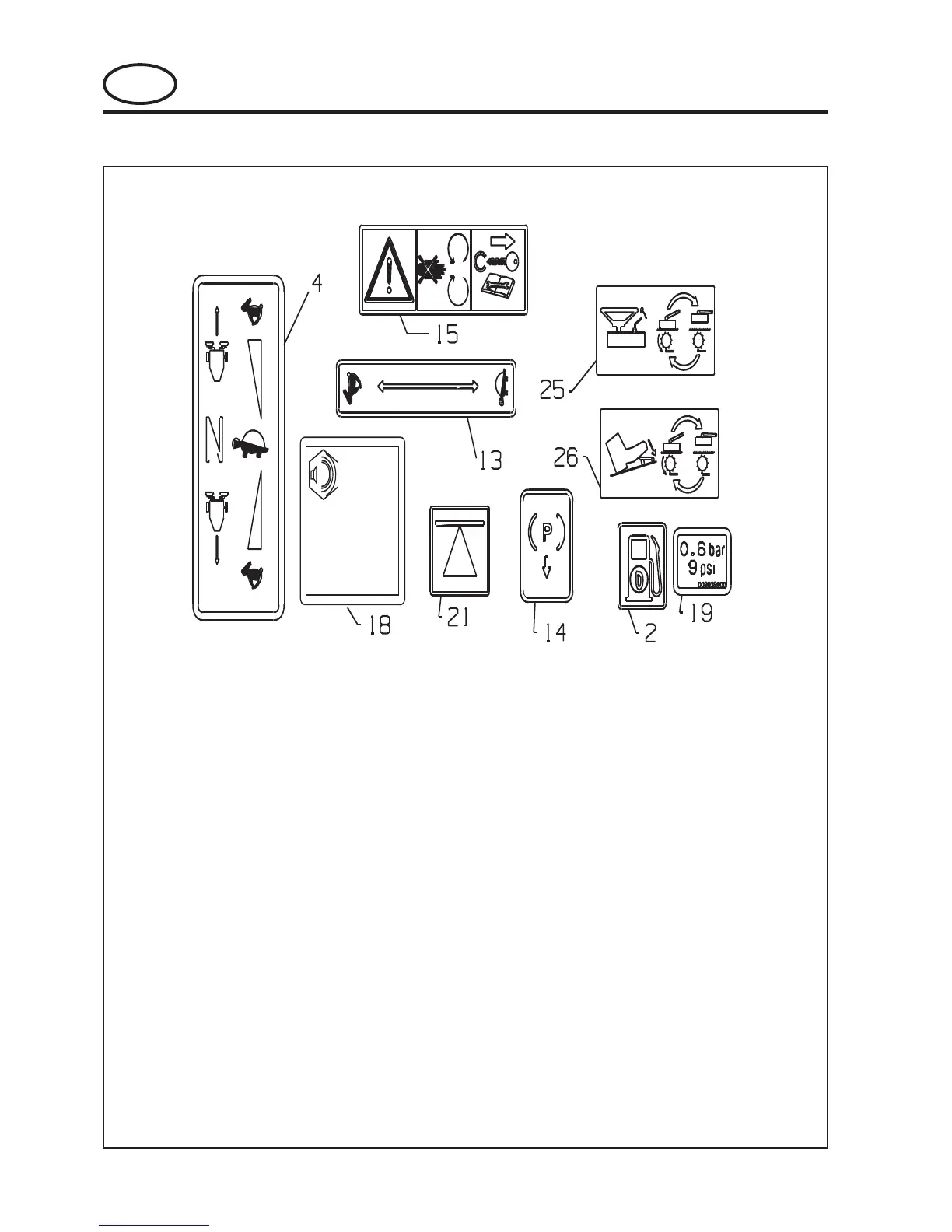

SAFETY & INSTRUCTION DECALS
1 A903488 Do Not Open or Remove
Safety Shields While the Engine is
Running.
2 838419 Diesel Fuel Only
4 840065 Speed Control
6 A911410 Danger of Explosion if the
Battery Terminals are Short Circuited.
8 A903493 Avoid Fluid Escaping
Under Pressure. Consult Technical
Manual for Service Procedures.
9 A903489 Keep a Safe Distance
from the Machine.
10 A903491 Read Operator's Manual.
11 A903492 Stay Clear of Hot
Surfaces.
13 838363 Engine Speed Control.
14 838367 Parking Brake P.
15 840748 Keep hands out of moving
parts. Shut of engine and remove key
before servicing equipment.
18 A903477 Maximum Sound Power
Level.
19 A903950 Tyre Pressure.
20 A911416 Maximum permitable
working slope.
21 A911430 Jacking Point
25 A293952 Paddle Control. Mow/
Raise Cutting Units.
26 A923953 Footswitch Control. Mow/
Raise Cutting Units.
