Jacobsen JMP653F Quick Start Guide

QUICK START GUIDE
en-10

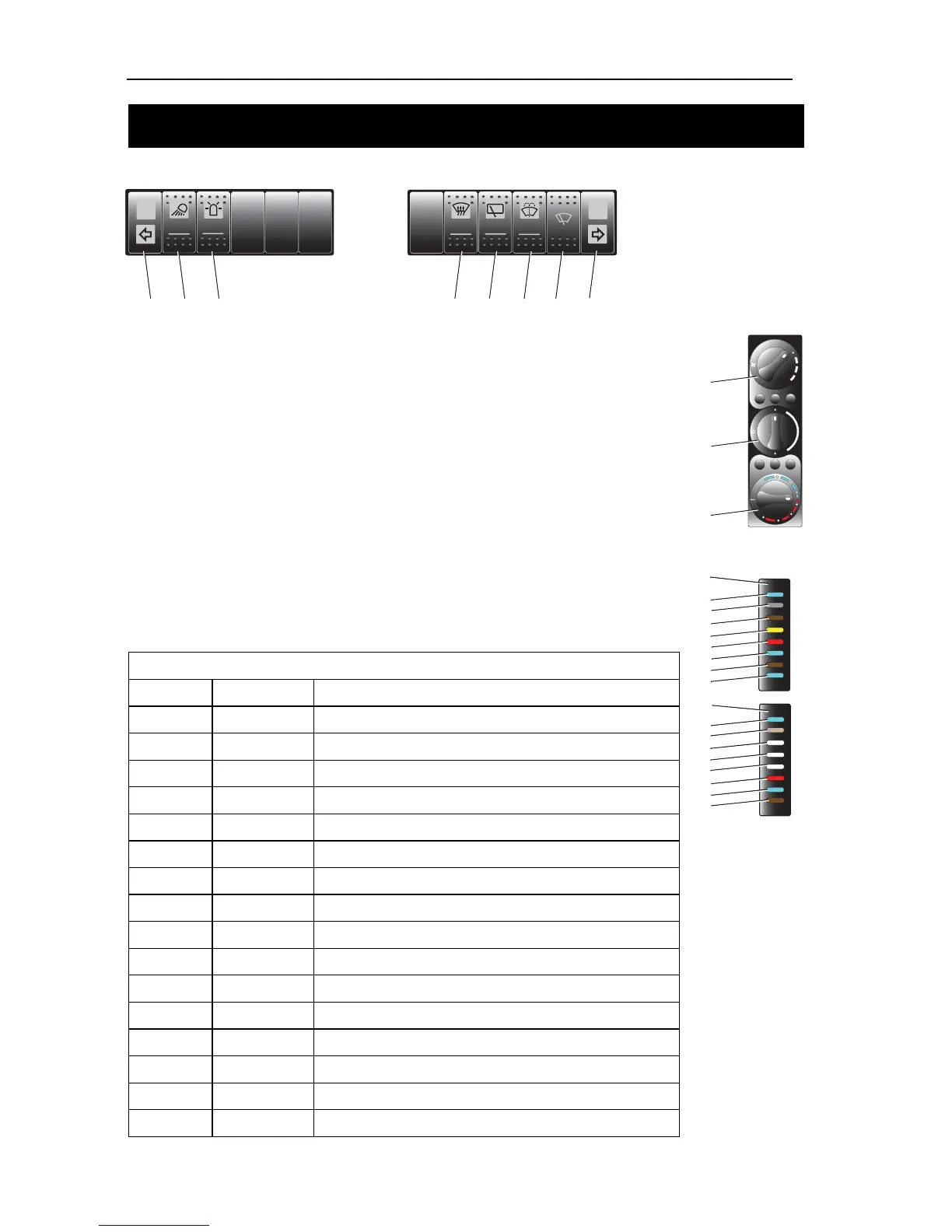

CONTROLS
A Left Turn Signal
B Working Lights Switch (Optional)
C Beacon Switch
D Front Screen De-Mist Switch
E Rear Screen Wiper Switch (Optional)
F Front Screen Wash Switch
G Front Screen Wiper Switch
H Right Turn Signal
J Fan Control
K Air Conditioning Control
L Temperature Control
M Fuse Holder
N Fuse Holder
FUSE HOLDER
Fuse Rating Protected Circuits
M8 15A Wiper Front
M7 25A Front Screen Heating
M6 7.5A Radio (15)
M5 20A Working Lights / Locater Lighting Left
M4 10A Wiper Rear / Marker Lights
M3 15A Air Condition (Fan Condenser)
M2 7.5A Air Condition
M1 15A Air Condition (Fan)
N8 15A Low Beam
N7 5A Parking Lights (15)
N6 - -
N5 - -
N4 - -
N3 10A Radio (30) / Interior Light
N2 15A Beacon
N1 7.5A Air Condition (Enable Signal Compressor)
A
B
CH
G
F
E
D
3
2
1
0
A
/
C
O
F
F
F
O
F
15
25
7.5
20
10
15
7.5
15
15
5
10
15
7.5
J
K
L
N
8
7
6
5
4
3
2
1
8
7
3
2
1
6
5
4
M
CAB CONTROLS
