Jacuzzi AMIGA PLUS User Manual

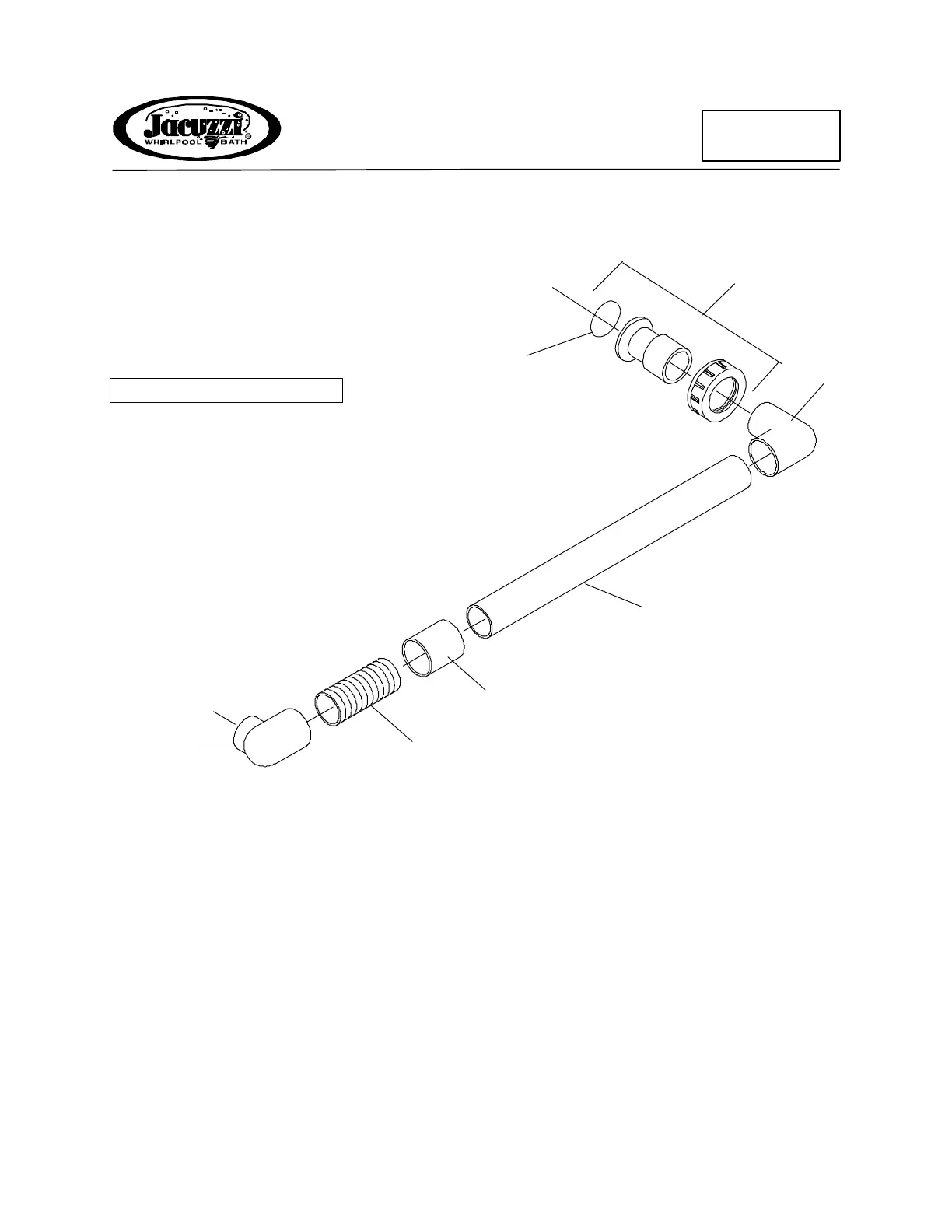

SUCTION PLUMBING
AMIGA PLUS
MODEL #N880000
MODEL #N890000
ISSUE DATE: 9/99
2
*See General Bath Parts Catalog
To Pump Suction
*To Suction
Fitting
1
2
3
2” x 24.00”L.
2” Flex
x 6.00”L.
5
ITEM P/N DESCRIPTION QTY
1
2
3
4
5
5
9250000
9231000
0426000
0851000
B072000
B071000
Repair Kit, Union Adapter
O-Ring, Union
Ell, 90, 2” S x S
Coupling, 2” S x S
Ell, Drain Down, RH
Ell, Drain Down, LH
4
1
1
1
1
1
1
NOTE: P/N B071000 is used on RH units. P/N B072000 is
used on LH units.
Guillen's Enterprises, inc
jacuzziparts.com
800-222-7855
www.guillens.com - (800) 222-7855
