Jacuzzi AMIGA PLUS User Manual

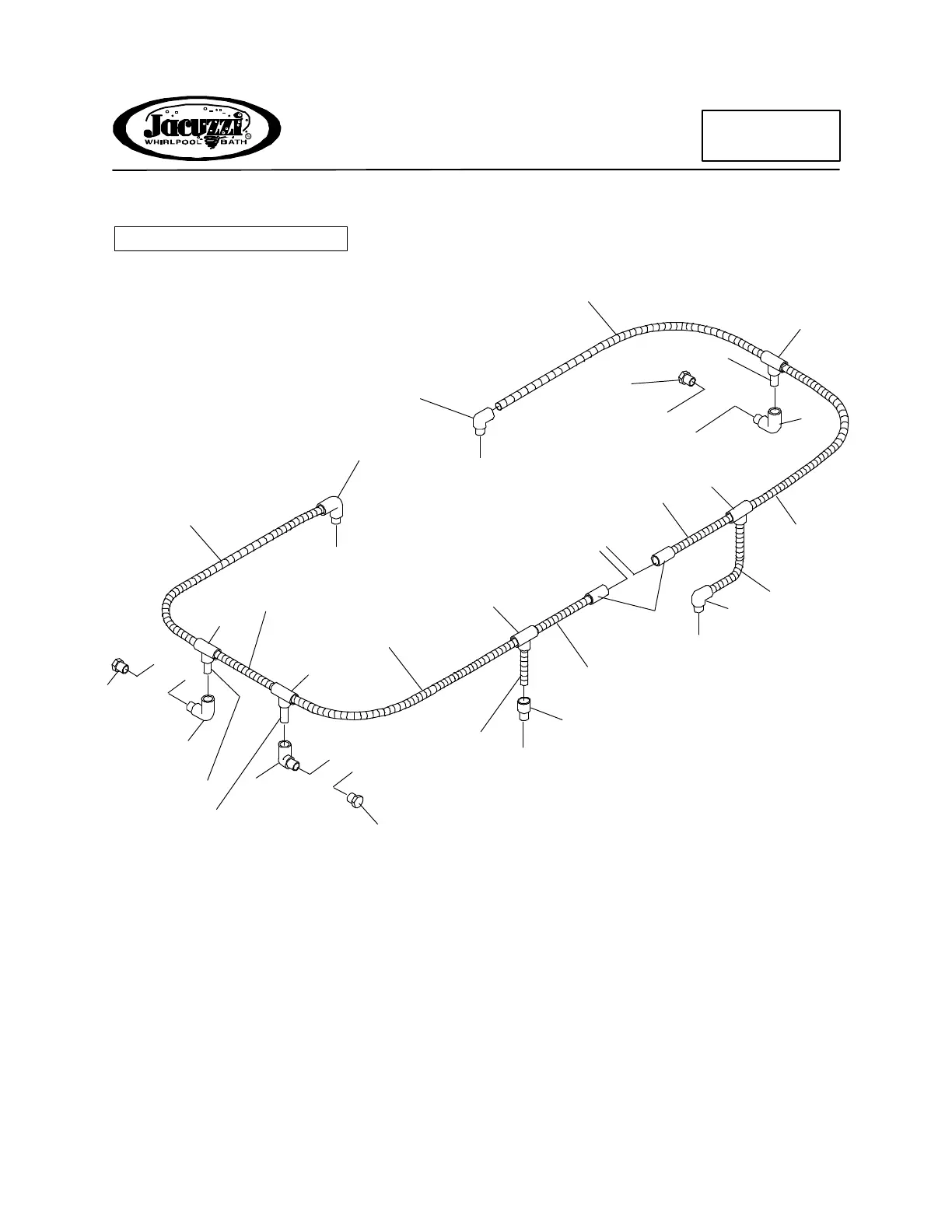

AIR LINE PIPING
AMIGA PLUS
MODEL #N880000
MODEL #N890000
ISSUE DATE: 9/99
3
*See General Bath Parts Catalog
ITEM P/N DESCRIPTION QTY
1
2
3
4
5
0647000
0455000
7164000
C279000
B777000
Coupling, 1/2” S x S
Tee, 1/2” S x S x S
Ell, 90, 1/2” Street
Adapter, 1/2” S x SPGT
Plug, 1/2” SPIG
2
5
6
1
3
*To HTC
Jet
*To HTC
Jet
*To HTC
Jet
*To 3-Position
Control Panel
*To BMH Jet
*To BMH Jet
*To BMH Jet
*To BMH Jet
1
1/2” Flex
x 8.25”L.
4
1/2” Flex
x 7.50”L.
2
1/2” Flex
x 21.00”L.
5
3
3
1/2” x 2.50”L.
1/2” x 3.50”L.
2
2
1/2” Flex
x 8.50”L.
5
1/2” Flex
x 24.00”L.
3
3
1/2” Flex
x 33.00”L.
5
3
1/2” x 2.50”L.
2
1/2” Flex
x 18.25”L.
2
1/2” Flex
x 9.25”L.
1/2” Flex
x 9.50”L.
3
Guillen's Enterprises, inc
jacuzziparts.com
800-222-7855
www.guillens.com - (800) 222-7855
