Jacuzzi J-400 Series User Manual

Page 13
J-400 Series


L2
L1

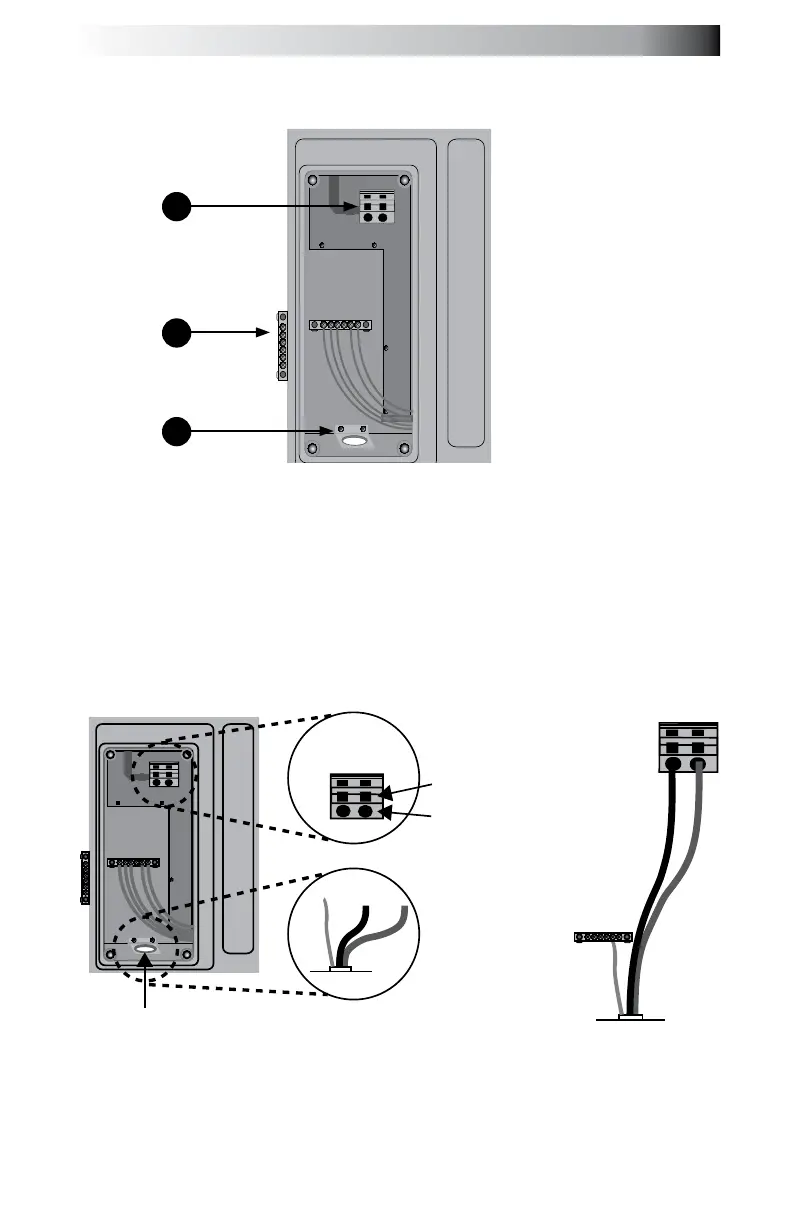

1. Main Terminal Block
2. Bonding Lug/Grounding Terminal
3. Power wires Entrance (Electrical tting and conduit must be
installed)
Figure C
Terminal Connection
(North American 240 VAC Connection Shown)
*Electrical tting and conduit must be installed
BLK
RED
Power In
*
Green
Power In*
Main
Terminal
Block
Use screwdriver
to pry open
the connector
Insert power
wires and
secure connection
L2
L1
L2
L1
BLK
RED
Power In*
Green
L2L1
Main
Terminal
Block
Grounding
Lug
2
1
3

Jacuzzi J-400 Series Specifications

General

Shell Material	Acrylic
Voltage	240V
Seating Capacity	6-7 persons
Heater	5.5kW
Control System	ProTouch
Lighting	LED multi-color lighting system
Insulation	Full-foam insulation
