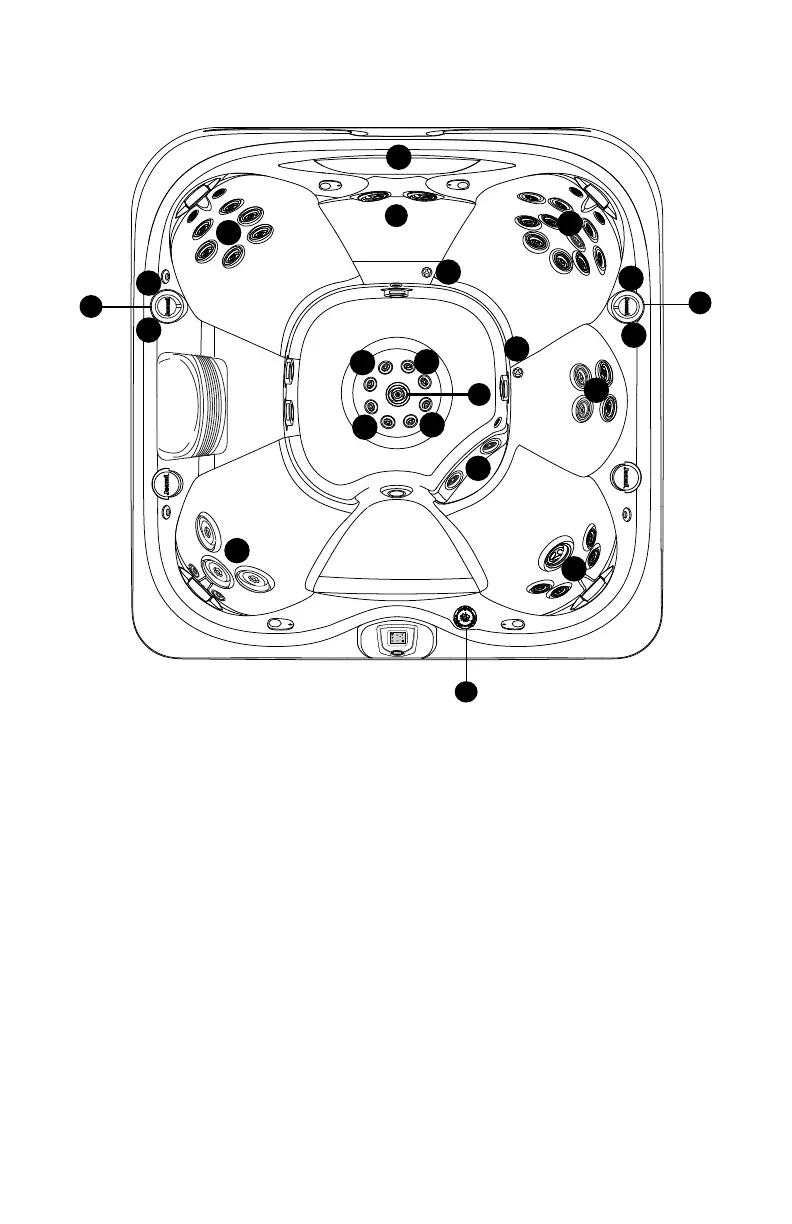

9.5 J-485 Massage/Waterfall Selector Diagram
Massage Selectors (1-2)
• Massage selector 1 diverts jets pump Nº 1 output between jets
groups 1a-1b.
• Massage selector 2 diverts jets pump Nº 2 output between jets
groups 2a-2b.
Continuously Powered Jets
• Jets 3 are always on when jets pump Nº 1 is running.
• Jets 4 are always on when jets pump Nº 2 is running.
Waterfall Selector
• Waterfall selector (5) controls circulation pump output to waterfall.
