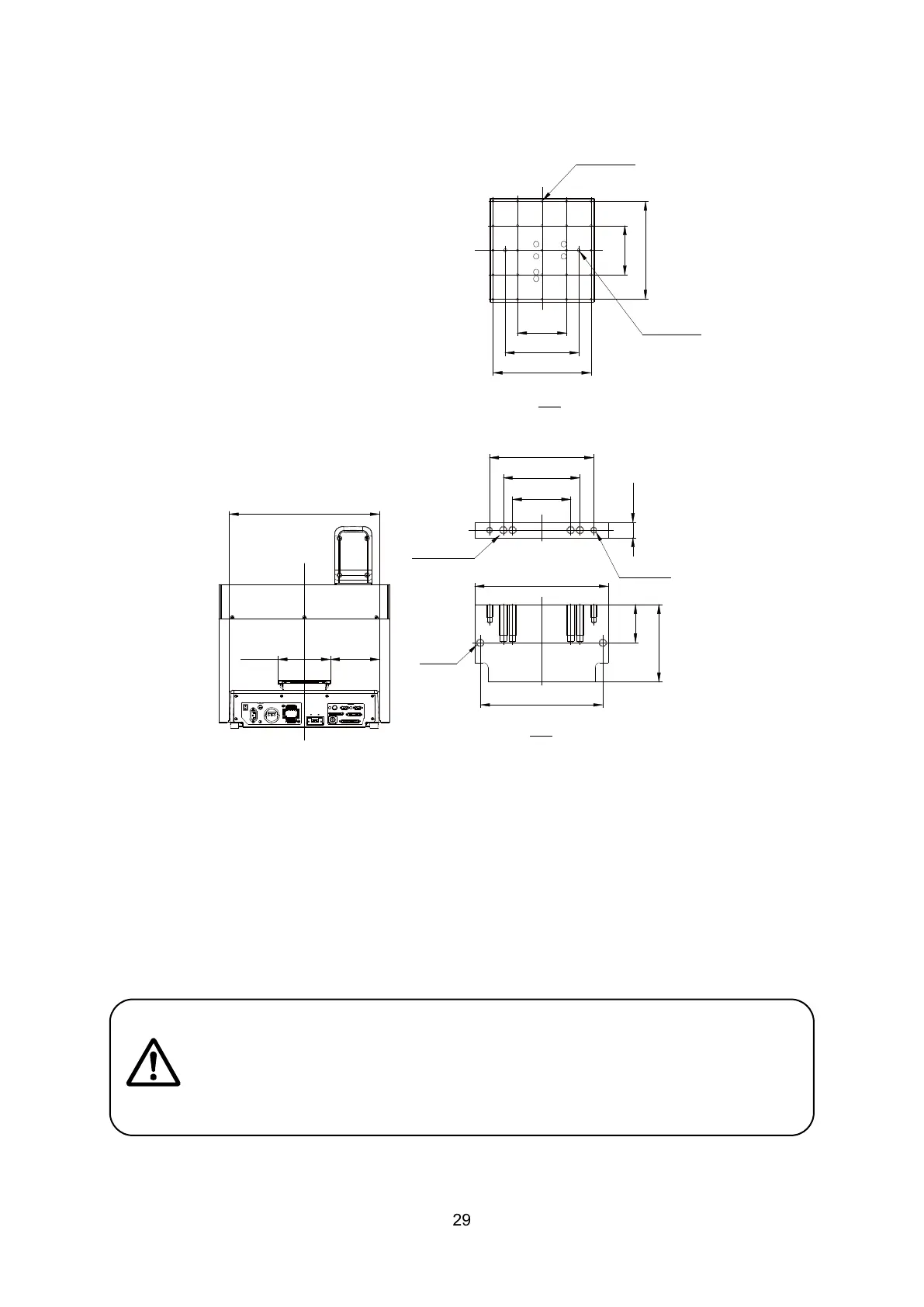

Specifications
Deskt
op Robo
t J
R
3
000
2-M5
25
38
50
68
80
87
50.5
2-M4
4-M5
10
(Opening)
(20 depth)
(8 depth)
170
160
490
25-M4
80
160
80
160
120
2-φ5H6
(5 depth)
(4 depth)
A
B
Warning
Be
sure
to
lea
ve
a
space
of
30cm
or
more
between
the
rear
of
the
robo
t
an
d
the
wall
or
an
y
other
ob
stacl
e
when
you
ins
tall
the
robo
t.
If
th
e
robo
t
is
to
o
close
to
th
e
wall
,
etc
.
it will be hard to do
maint
enance,
etc.,
and also due
to the
cooling fan on the
rear of
the
unit
, the
robo
t ma
y overh
eat
or m
alfu
nctio
n.
29
29
31
Table of Contents
Default Chapter
2
Preface
2
Table of Contents
4
Contents
4
For Your Safety
7
1 Lineup
16
Understanding the Model Number
18
2 Identification Plate
19
Reading the Identification Plate (Sample)
19
Identification Plate Locations
20
3 I/O Polarity
22
4 External Dimensions
25
Unit External Dimensions
25
Jr3203
25
Jr3204
27
Jr3303
29
Jr3304
31
JR3403 Single Column (Standard)
33
JR3403 Double Column (Optional)
35
JR3404 Single Column (Standard)
37
JR3404 Double Column (Optional)
39
Unit Fixtures (4 Locations)
41
Common to the JR3200 Series
41
Common to the JR3300 Series
42
Common to the JR3400 Series
43
Teaching Pendant (Optional)
44
Switchbox
45
5 Range of Movement
46
6 Attaching Equipment
47
7 I/O-Sys
49
Connectors
49
Pin Nos. (Robot Side)
51
Cable Wiring
51
Output Capacity
52
Input Signal (NPN)
53
Output Signal (NPN)
54
Circuit Diagram (NPN)
55
Input Signal (PNP)
57
Output Signal (PNP)
58
Circuit Diagram (PNP)
59
8 I/O-Sys Function Assignment
61
9 Fieldbus Function Assignment
62
10 I/O-1 (Optional)
63
Connector
63
Pin Nos. (Robot Side)
65
Function Assignment List
65
Cable Connection
66
Power Supply Capacity
66
Input Signal (NPN)
67
Output Signal (NPN)
68
Circuit Diagram (NPN)
69
Input Signal (PNP)
71
Output Signal (PNP)
72
Circuit Diagram (PNP)
73
11 I/O-S (Optional)
75
Connector
75
Pin Nos. (Robot Side)
76
Safety Device
77
12 Fieldbus (Optional)
78
Fieldbus Settings
79
Devicenet
80
Connector Diagram
80
Network Status
80
Module Status
80
Connector Pin Assignment
80
Settable Contents
81
Profibus
81
Connector Diagram
81
Operation Mode (OP) / Status (ST)
82
Connector Pin Assignment
82
Settable Contents
82
Profibus Master (PLC) Settings
83
CC-Link
84
Connector Diagram
84
Run (RUN) / Error (ERR)
84
Connector Pin Assignment
84
Settable Contents
84
13 I/O-Mt (Optional)
87
Connector
87
Pin No. (Robot Side)
88
Function Assignment
88
Cable Wiring
89
Output Capacity
90
Input Signals
90
Output Signals
91
Circuit Diagram
92
14 Memory Port
93
Teaching Data Backup
94
System Software and PS Data (Model Setting Data) Updates
95
MEMORY Port Settings (Administration Settings Mode)
96
15 Lan Port
97
Connector
97
Pin Nos. (Robot Side)
98
16 Com 1 - 3
99
Connector
99
Pin Nos. (Robot Side)
100
COM Connector Pin Connection
100
17 Tpu (Teaching Pendant Connector)
102
Connector
102
Pin Nos. (Robot Side)
103
Pin Connections
103
Circuit Diagram
104
18 Switchbox Connector (Switchbox Specifications)
105
Connector
105
Pin Nos. (Robot Side)
105
Circuit Diagram
106
19 Command List
107
Point Job Data
107
Execute Conditions
111
PLC Programs
111
20 Variable List
112
21 Function List
115
22 System Flag List
119
23 Error Message List
121
5
