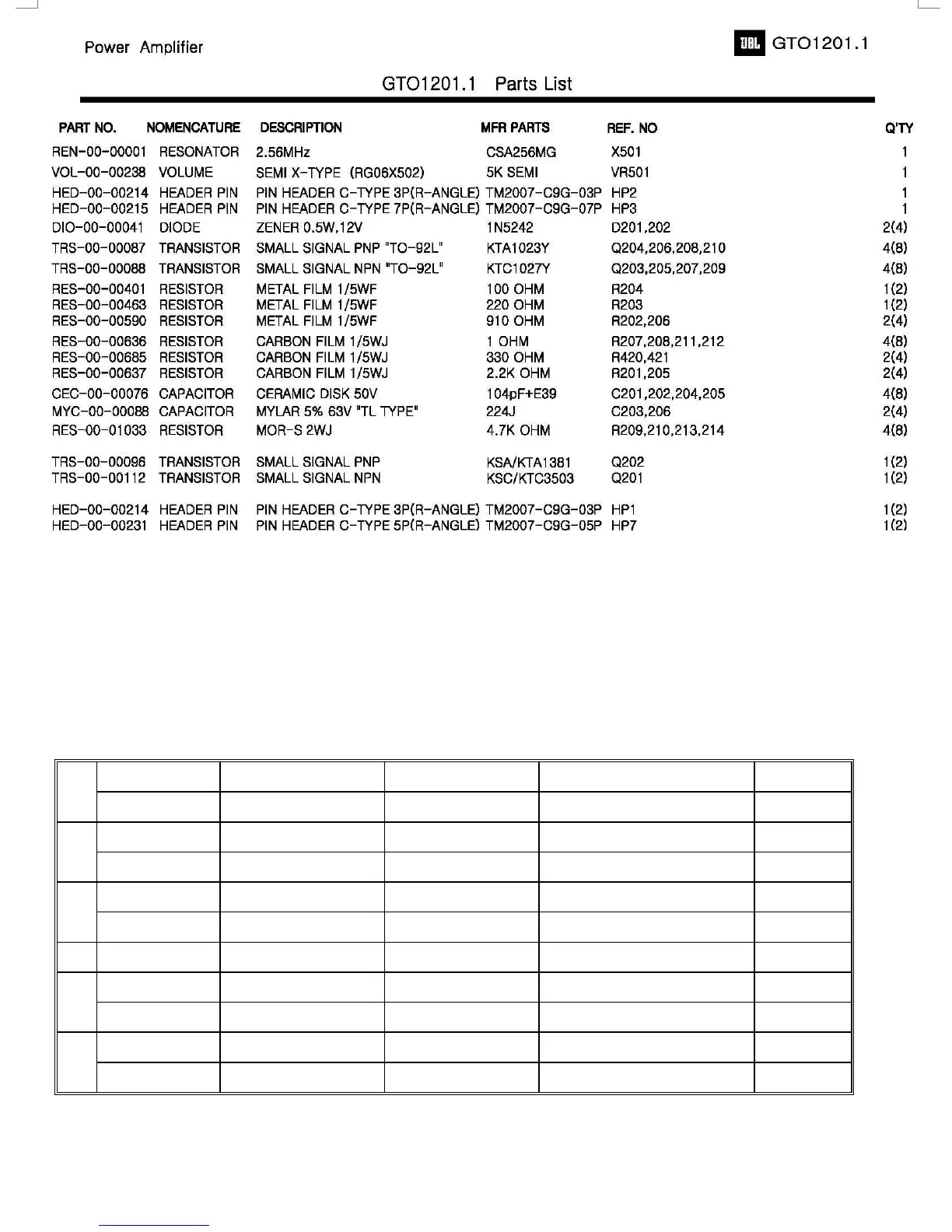

GTO 1201.1 Version II Electrical Parts List Addendum
The following chart below represents the only electrical parts
differences in Version I and II models:
MODEL PART NAME PART NO SPEC DESIGNATOR
GTO 1201.1 RESISTOR RES-00-00756 1/5WJ 820 OHM R116
1
GTO 1201.1II RESISTOR RES-00-00474 1/5WF 240 OHM R116
GTO 1201.1 RESISTOR RES-00-00482 1/5WF 2K OHM R117
2
GTO 1201.1II RESISTOR RES-00-00577 1/5WF 750 OHM R117
GTO 1201.1 RESISTOR RES-00-00575 1/5WF 7.5K OHM R118
3
GTO 1201.1II RESISTOR RES-00-00402 1/5WF 10K OHM R118
GTO 1201.1
POWER TERMINAL
TER-00-00238 (3P) WT-9842 TER1
4
GTO 1201.1II
POWER TERMINAL
TER-00-00277 (3P) DK-03B03-AG-1-DN TER1
GTO 1201.1
SPEAKER TERMINAL
TER-00-00239 (4P) WT-9321 TER2
5
GTO 1201.1II
SPEAKER TERMINAL
TER-00-00275 (4P) DK-04A03-AG-1-DN TER2
