6. Bi-Wire Connection
The 4319 connection assembly has two sets of input terminals that
are connected by metal jumper bars. The upper set of terminals is
for the midrange/tweeter, and the lower set of terminals is for the
woofer.
This arrangement allows you to bi-wire the speakers using a single
stereoamplierorbi-wireusingtwostereoampliers.Bi-wiring
canoffersonicadvantagesandmoreexibilityinpoweramplier
selection over a conventional single-wire connection.

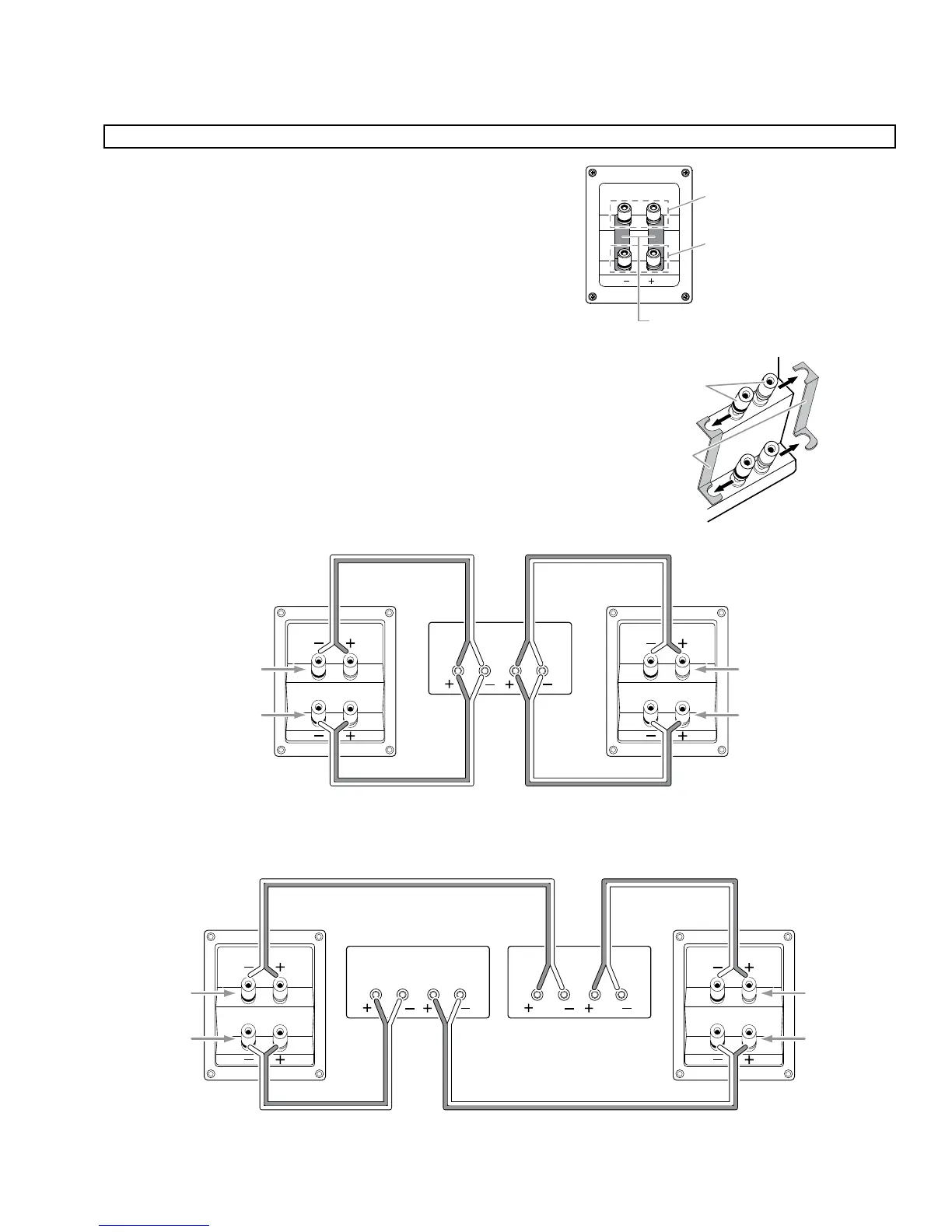

Tobi-wirethe4319,rstremovetheterminaljumpersasshown
in the illustration on the right.
Ifyou’rebi-wiringwithasinglestereopoweramplier,connect
the speakers according to the following illustration.
Ifyou’rebi-wiringwithtwostereopowerampliers,connect
the speakers according to the following illustration.
In either case, follow the instructions for the different connector types in Basic Single-Wire Connection, on the previous page.
NOTE: For more information about various speaker wire and connection options, contact your local JBL dealer.
Studio Monitor Model 4319
Jumper
Bars
Midrange/Tweeter
Terminals
Woofer
Terminals
A. Unscrew all Four Caps
B. Remove Jumpers
Right
Ch.
Left
Ch.
Amplifier
Mid/Tweeter
Connection
Woofer
Connection
Right
Speaker
Left
Speaker
Mid/Tweeter
Connection
Woofer
Connection
Right
Ch.
Left
Ch.
Amplifier 1
Right
Ch.
Left
Ch.
Amplifier 2
Mid/Tweeter
Connection
Woofer
Connection
Right
Speaker
Left
Speaker
Mid/Tweeter
Connection
Woofer
Connection
