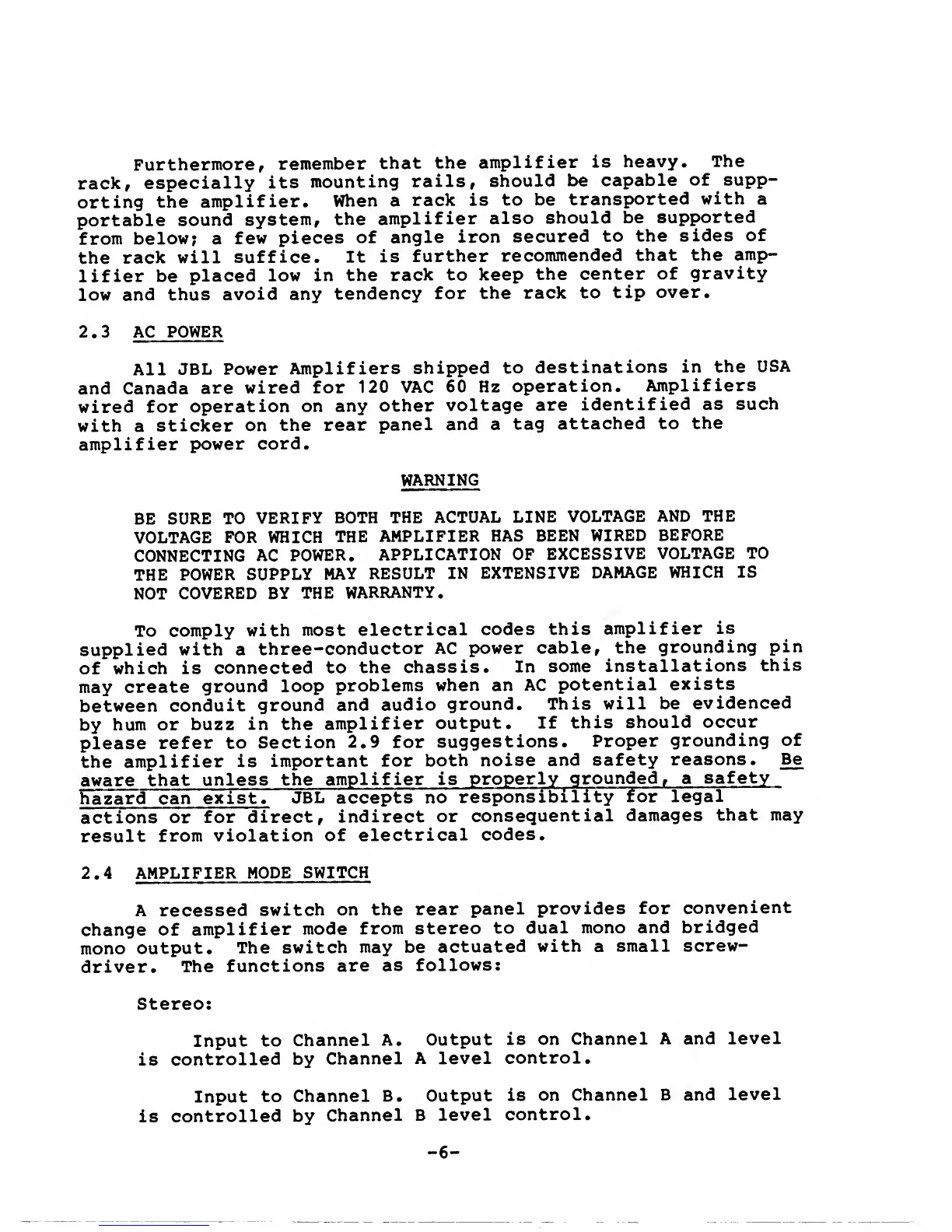

Furthermore,
remember
that
the
amplifier
is
heavy.
The
rack,
especially
its
mounting
rails,
should
be
capable
of supp-
orting
the
amplifier.
When
a
rack is
to
be
transported
with
a
portable
sound
system,
the
amplifier
also
should
be
supported
from
below; a
few pieces
of
angle
iron
secured
to
the
sides
of
the rack
will
suffice.
It
is
further
recommended
that
the
amp-
lifier be
placed
low
in the
rack
to keep
the center
of
gravity
low and
thus
avoid any
tendency
for
the rack
to
tip
over.
2.3 AC
POWER
All
JBL
Power
Amplifiers
shipped
to
destinations
in
the
USA
and
Canada
are
wired for
120 VAC
60 Hz
operation.
Amplifiers
wired for
operation
on
any
other
voltage
are
identified
as
such
with
a
sticker on
the
rear
panel
and a
tag
attached to
the
amplifier
power
cord.
WARNING
BE
SURE TO
VERIFY
BOTH
THE
ACTUAL
LINE
VOLTAGE
AND THE
VOLTAGE
FOR WHICH
THE
AMPLIFIER
HAS
BEEN
WIRED
BEFORE
CONNECTING AC
POWER.
APPLICATION
OF
EXCESSIVE
VOLTAGE
TO
THE
POWER
SUPPLY
MAY
RESULT
IN
EXTENSIVE
DAMAGE
WHICH
IS
NOT
COVERED
BY THE
WARRANTY.
To
comply
with
most
electrical
codes
this
amplifier
is
supplied
with a
three-conductor
AC power
cable,
the
grounding
pin
of
which is
connected
to
the
chassis.
In
some
installations
this
may
create
ground
loop
problems
when an
AC
potential
exists
between
conduit
ground and
audio
ground.
This
will be
evidenced
by
hum or
buzz
in the
amplifier
output.
If
this
should
occur
please
refer to
Section
2.9 for
suggestions.
Proper
grounding
of
the
amplifier is
important for
both
noise
and
safety
reasons.
Be
aware
that
unless
the
amplifier is
properly
grounded, a
safety
hazard can
existT
JBL~aiccepts no
"responsibility
for
legal
actions or
for
direct,
indirect
or
consequential
damages
that may
result
from
violation
of
electrical
codes.
2.4
AMPLIFIER
MODE SWITCH
A recessed
switch
on
the rear
panel
provides
for
convenient
change of
amplifier
mode
from stereo
to
dual mono
and
bridged
mono
output.
The switch
may be
actuated
with
a
small
screw-
driver.
The
functions
are
as
follows;
Stereo;
Input to
Channel
A.
Output
is on
Channel
A and
level
is
controlled
by
Channel
A level
control.
Input
to
Channel
B.
Output
is on
Channel
B and
level
is
controlled
by
Channel
B
level
control.
-
6
-
