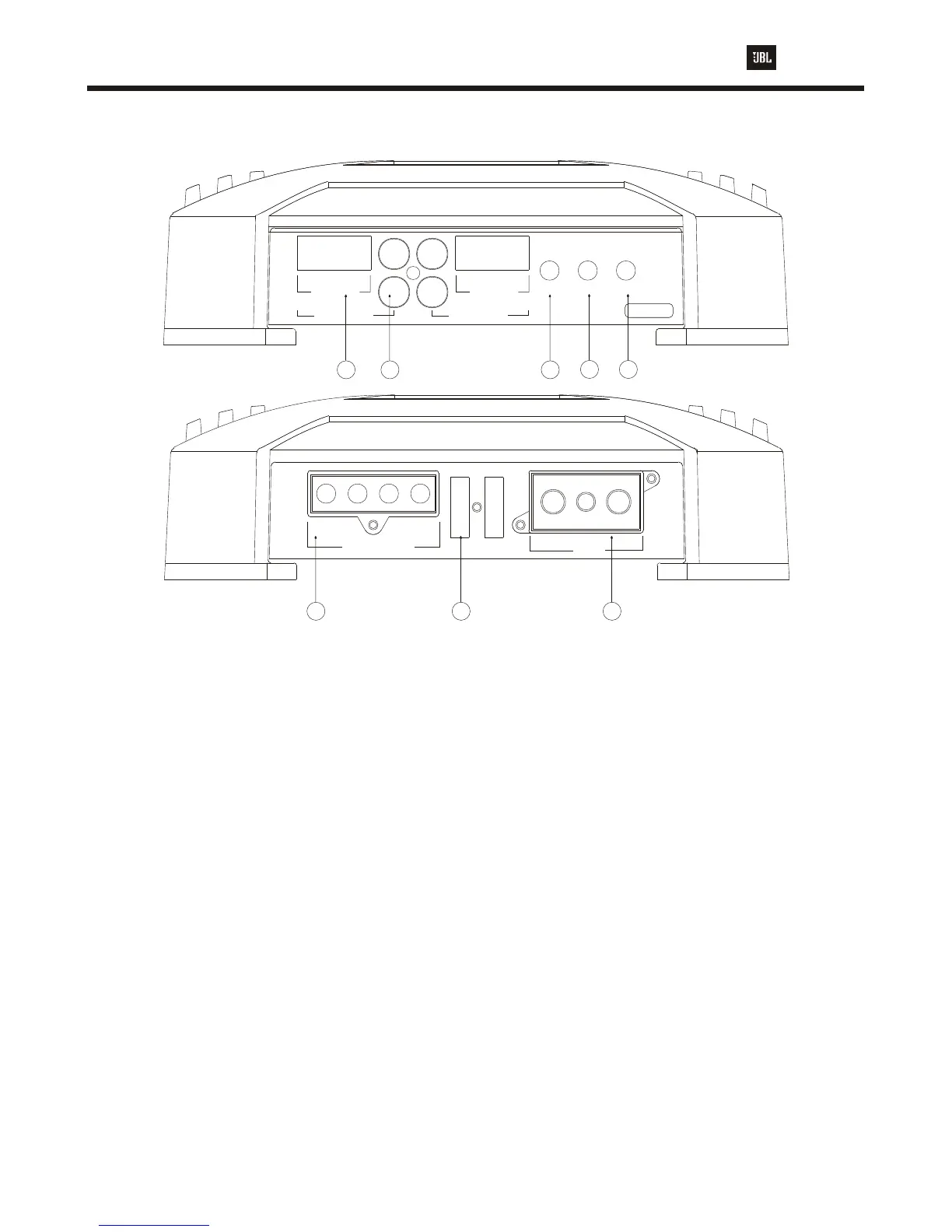

Controls and Connections
Controls and Connections
Mounting the Amplifier
1. It allows left and right input channels to be
connected to the amplifier using RCA plugs.
2. Speaker Output Connector - Connect speaker
wiring to these connectors. See wiring instruc-
tions on page 4 for more information.
3. Fuse - Two 30 Amp ATC type Fuses.
The JBL BP Series amplifiers can be mounted in virtually any location inside the vehicle.
However, make sure to keep the amplifier away from heater vents or ducts.
1. At the chosen site, use the amplifier as a mounting template and mark the locations of the
four mounting holes.
2. Drill a small pilot hole at each marked location.
3. Mount the amplifier and securely tighten the mounting screws.
4. Power Connection for 12V+, GND and REM
connections for power wires. See wiring instruc-
tions on page 4 for more information.
5. Input-Level Control - Adjusts input sensitivity
for pre-amp level and speaker level inputs.
6. The electronic crossover is a 12dB/oct.
Low pass filter which can be Set at any frequency
between 32Hz and 320Hz.
7. The bass boost control will provide up to 6dB of boost
at 50Hz.
8. It allows left and right input channels such as high level
speaker output signals to be the ampifier.
1 Channel Automotive Amplifier
3
BP-600.1
FUSE 30Ax2
- + - +
SPEAKER OUTPUTS
+BATT
REM GND
POWER
+ R - - L + + R - - L +
HIGH LEVEL HIGH LEVEL
INPUT
LEVEL
4V 250mV 32Hz 320Hz 0dB +6dB
LPF
FREQ
BASS
BOOST
R
R
L
L
FRONT INPUTS REAR INPUTS
.
.
.
.
.
.
BP600.1
8 1
5
6
7
2 3 4
