1 - Cable Tie - If using loose wire, this cable tie can secure the loose ends of wire that
are connected to the terminal block. The strap can be tightened by pulling on the loose
end and then tightening the holding screw.
2 - Adjustable Metal Strap - This adjustable steel tie fitting is provided for those applica-
tions where it can be utilized to affix a set of wires. It can be useful for regions where
such a fitting is allowed for terminating a flexible conduit. It can also be used for tight-
ening down onto incoming wires to provide strain relief. It might be necessary to place
electrical tape or heat shrink over any wire bundle, underneath the metal strap, to physi-
cally protect the wire from the strap.
3 - PEM Screws - Two screws, which are threaded into PEM fittings in the backcan,
one on the back and one on the side, can be used to attach a wide variety of strain fit-
tings. Please remove the correct screws with the PEM fitting, as shown on the Product
Feature Identification Picture on Page 3, NOT the two screws that hold the backcan in
place. Check building codes in your area for what kind of physical strain relief fittings
are required in your region.
Always use the proper fitting in accordance with
your area's building codes and regulations.
CAUTION:

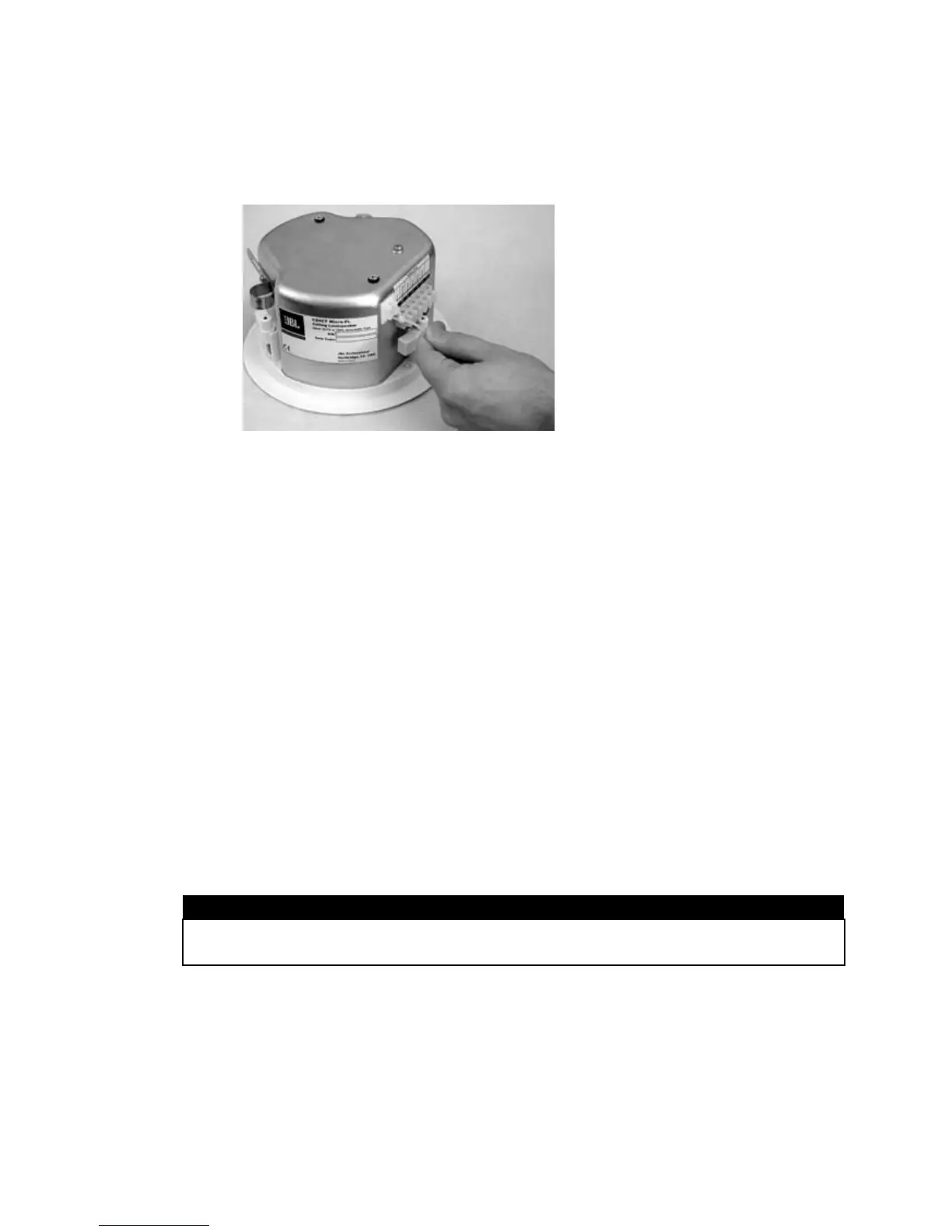

Figure 7:
Tightening the Cable Tie
