1.3 Rear Panel Controls and Connectors
A. AC Power Inlet – Detachable IEC
B. Amplifier Output Connector
C. Hi-Z Switch – Enables the 70V and 100V outputs and activates the 70Hz high
pass filter
D. Dual RCA Input Connector – Stereo, unbalanced sources will be summed
together (Ch2-4)
E. Audio Input Connector – 3 pin Euro-block connector, balanced input (Ch2-4)
F. Sleep Disable Switch – Disables the Sleep mode if you don’t want the unit go
into sleep mode after 2 hours with no input signal.
G. Remote volume connector – RJ-45 style connector to connect to JBL CSR-V
control module

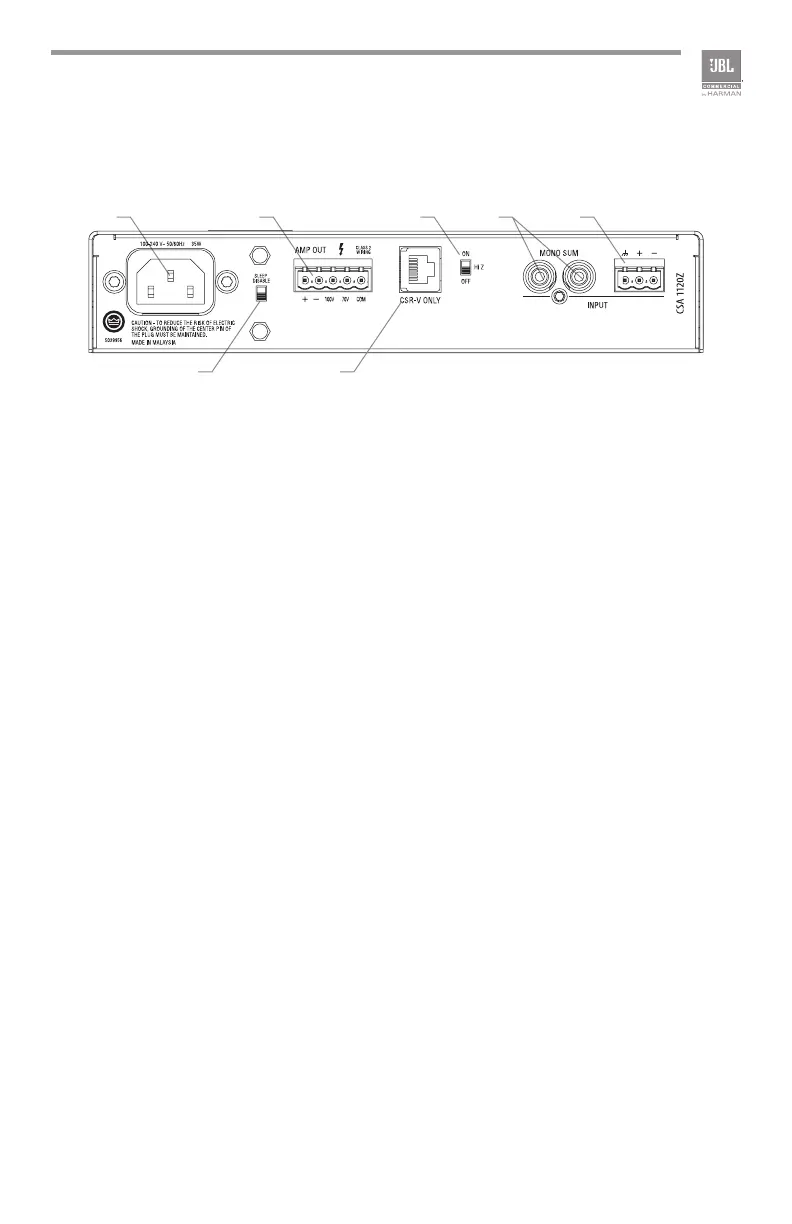

Figure 1.3 Rear View - CSA 1120Z
A B C ED
F
G

JBL CSA 1120Z Specifications

General

Amplifier class	-
Frequency range	20 - 20000 Hz
RMS rated power	120 W
Input sensitivity	1400 mV
Audio output channels	1.0 channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	- %
Package weight	4500 g
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Line inputs (RCA)	2
Speakers connectivity type	RCA
Storage temperature (T-T)	-20 - 85 °C
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	0 - 95 %
Purpose	Home
On/off switch	Yes
Product color	Black
Volume control	Rotary
Connectivity technology	Wired
Sustainability certificates	RoHS, ENERGY STAR
Certification	CE, FCC

Weight and Dimensions

Depth	303.4 mm
Width	218.5 mm
Height	43.3 mm
Weight	3100 g
