JBL CSA 180Z User Manual

8
1.2 Front Panel Controls and Indicators
A. Output Volume Control
B. Power Switch
C. Illuminated ring around the output volume control will light green with signal
presence while red indicates clipping, i.e. the signal has reached the
threshold of audible distortion.
D. Tone Controls - Bass and Treble potentiometers on each output channel
E. Illuminated ring around the power switch. Green indicates that the unit is
connected to the AC mains and is in standby or sleep mode. Blue
indicates that the unit is on and in normal operating mode.

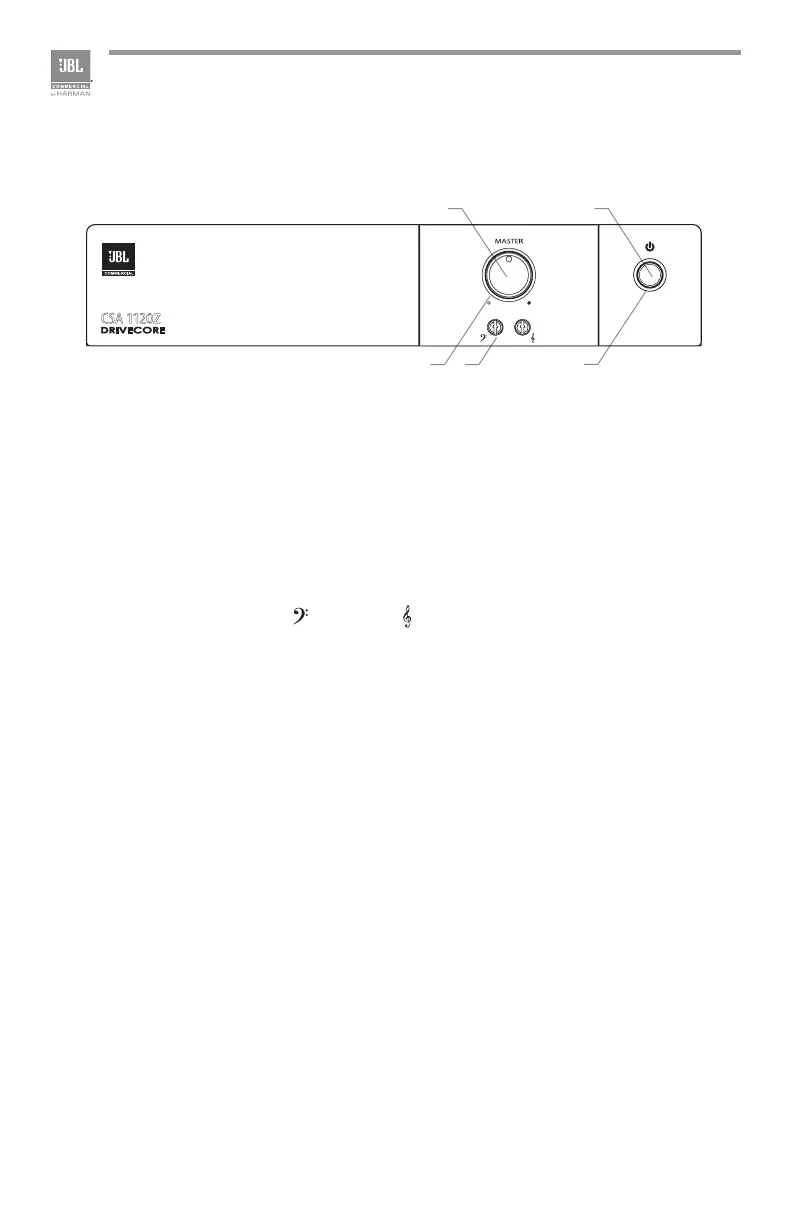

Figure 1.2 Front View of Single Channel Model
A B
E
C
D
CSA 1120z

JBL CSA 180Z Specifications

General

Amplifier class	-
Frequency range	20 - 20000 Hz
RMS rated power	80 W
Input sensitivity	1400 mV
Audio output channels	1.0 channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	- %
Package weight	4500 g
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Line inputs (RCA)	2
Speakers connectivity type	RCA
Storage temperature (T-T)	-20 - 85 °C
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	0 - 95 %
Purpose	Home
On/off switch	Yes
Product color	Black
Volume control	Rotary
Connectivity technology	Wired
Sustainability certificates	RoHS, ENERGY STAR
Certification	CE, FCC

Weight and Dimensions

Depth	303.4 mm
Width	218.5 mm
Height	43.3 mm
Weight	3100 g
