JBL EON 515 User Manual

11
EON305 Specications
System Type: 15", two-way, bass-reex design
Frequency Range (-10 dB): 38 Hz - 20 kHz
Frequency Response (±3 dB): 50 Hz - 18 kHz
Coverage Pattern: 100º x 60º nominal
Directivity Index (DI): 9 dB
Directivity Factor (Q): 8
Crossover Frequency: 1.9 kHz
System Power Rating: 250 W continuous, 500 W program,1000 W peak
Sensitivity (1w/1m): 98 dB
Maximum SPL: 128 dB
Nominal Impedance: 8 Ohms
LF Driver: 1 x M115-8 380 mm (15 in) woofer
HF Driver: 1 x JBL 2414H-1 25.4 mm (1 in) polymer diaphragm compression driver
Input Connector: Parallel Neutrik
®
NL4 / 1/4” combo connectors.
Protection: Sonic Guard™
Enclosure: PP impact copolymer, multi-purpose main & monitor orientation.
Handles: One left/right side, one on top.
Suspension / Mounting:
36 mm pole socket with stabilizing screw, 4 x M10 suspension points
1 x M10 pull-back point.
Grille: Powder coated perforated steel with acoustically transparent black screen backing.
Dimensions (H x W x D): 685 x 438 x 366 mm (27 x 17.3 x 14.4 in)
Net Weight: 15 kg (33 lb)

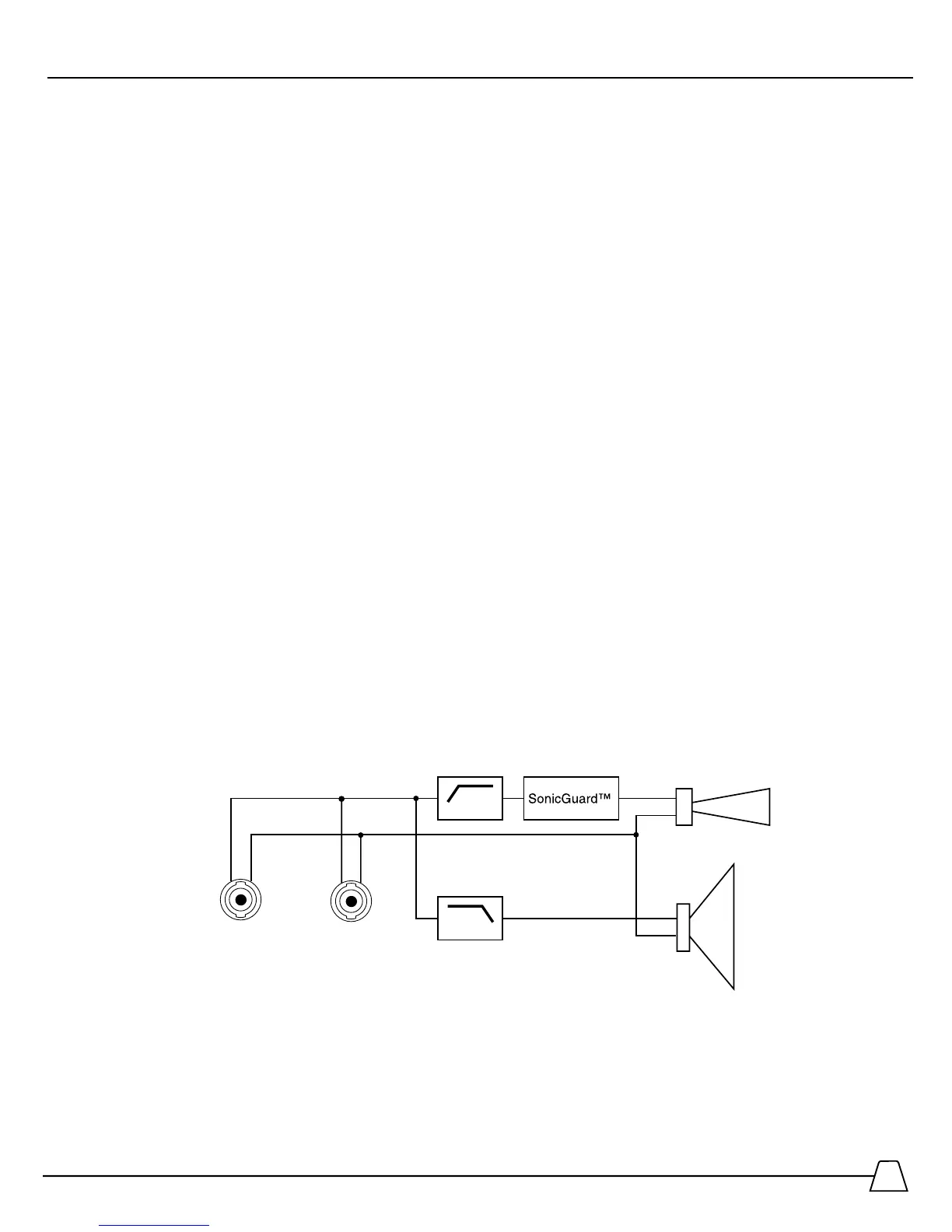

Block Diagram
+
-
+
-
HPF
LPF
1- (GND)1+ (TIP)
1- (GND)1+ (TIP)
INPUT/OUTPUT

JBL EON 515 Specifications

General

Max SPL	132 dB
Amplifier Type	Class D
Input Impedance	20k ohms (balanced), 10k ohms (unbalanced)
System Type	Self-powered, 2-way, bass-reflex
Frequency Response	39 Hz - 20 kHz
Woofer Size	15 inches
HF Driver	1" Neodymium compression driver
Input Connectors	XLR, 1/4" TRS
Weight	14.8 kg
