XLR/F to XLR/M Microphone Cable The standard cable for interconnection of microphone and line level signal
in professional audio systems.
• Microphone to mixer
• Microphone to EON15 G2 INPUT 1
• Professional audio mixer to EON15 G2 INPUT 1
• “Daisy chaining” EON15 G2 speaker systems
TRS (Balanced)
1/4”
Phone to XLR/M For connecting balanced devices with 1/4” connector to EON XLR input.
TRS (Unbalanced)
1/4” Phone to XLR/M For connection of instruments with unbalanced outputs to balanced XLR input.
• Sources (signal processors, electronic instruments) with
1/4” unbalanced outputs
to amps, processors, and powered speakers with balanced XLR/F inputs.
TS (Unbalanced) 1/4” Phone XLR/M This cable is electrically identical to “TRS (unbalanced) 1/4” Phone to XLR/M
above and may be used interchangeably.
XLR/M to RCA (phono) cable Connects consumer audio products and some DJ mixer outputs to professional
audio equipment inputs.
TS (Unbalanced)
1/4” Phone • Connects outputs of consumer audio equipment to unbalanced line inputs of
(phono) cable EON15 G2 and many mixers
• Connects unbalanced line outputs to many mixers to the inputs of consumer
audio recorder.
TRS
1/4” Phone to dual 1/4” Phone Splits a stereo output into separate left/right signals.
• Connects stereo electric guitar to two unbalanced audio inputs.
• Connects a headphone output to two unbalanced audio inputs.
• Change to a TRS mini-phone to connect to the output of portable CD
players and computer sound cards to a mixer or powered speakers.
Also used to connect signal processors to the “insert” of many mixing consoles.
XLR/F to XLR/M Audio Ground Lift Used to “telescope” a ground to eliminate hum caused by “ground loops”. For
use only with balanced inputs and outputs.

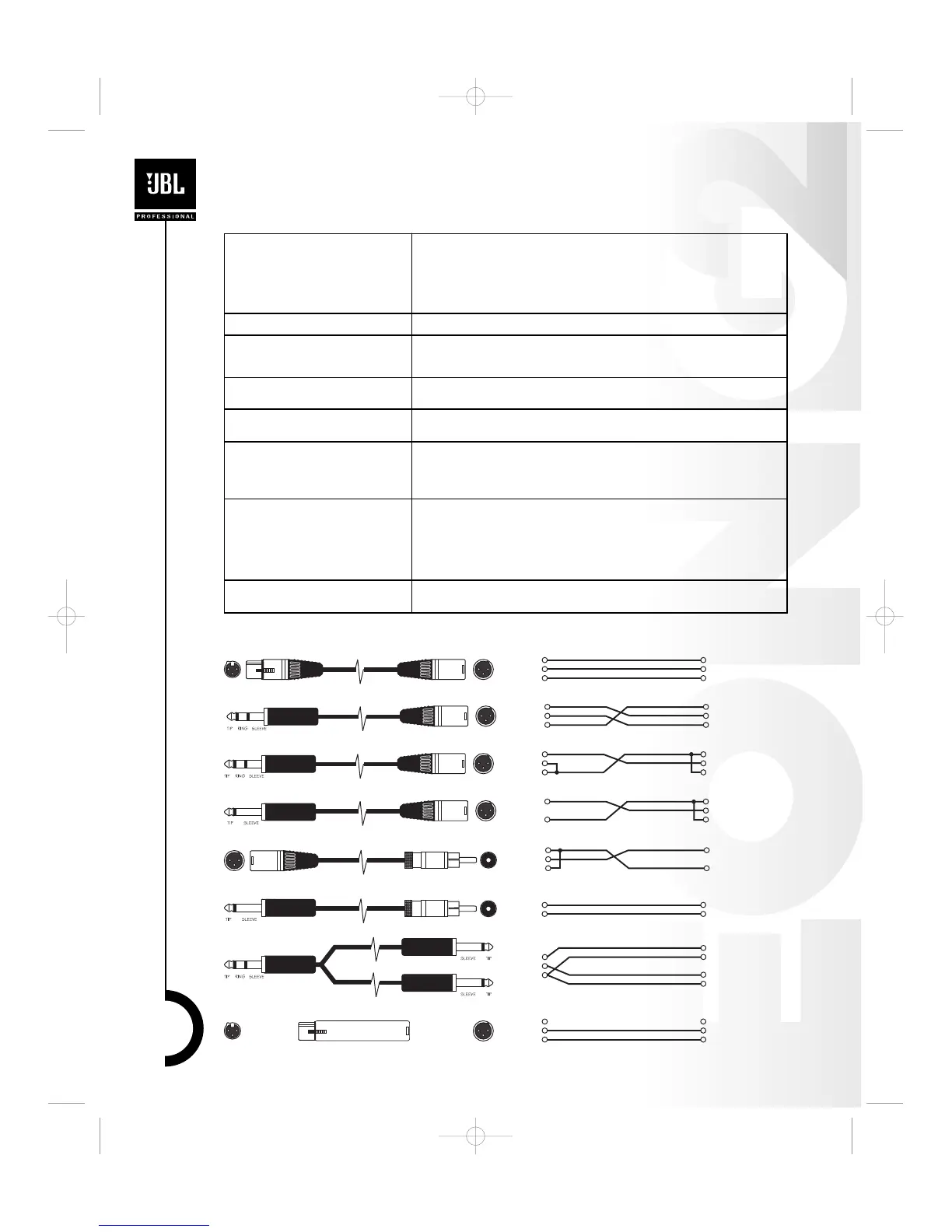

Cables and Connectors
1 (shield)
2
3
1
2
3
XLR/F to XLR/M Microphone Cable
TRS (Unbalanced) 1/4” Phone to XLR/M Cable
Tip
Ring
Sleeve
1 (shield)
2
3
TS (Unbalanced) 1/4” Phone to XLR/M Cable
Tip
Sleeve
1 (shield)
2
3
TRS 1/4” Phone to dual TS 1/4” Phone
Tip
Ring
Sleeve
Tip
Sleeve (shield)
Tip
Sleeve (shield)
XLR/M to RCA (phono) Cable
1
2
3
Center
Shield
TRS (Balanced) 1/4” Phone to XLR/M Cable
Tip
Ring
Sleeve
1 (shield)
2
3
1 (no connection)
2
3
1
2
3
XLR/F to XLR/M Audio Ground Lift
Tip
Sleeve
Center
Sleeve (shield)
TS (Unbalanced) 1/4” Phone to RCA (phono) Cable
