17–18. Input
Either Video or Aux will
illuminate, depending on which
input is chosen.
19–23. Surround
One of these will illuminate,
depending on which surround
mode is chosen.
24. Status Bar Indicators
These LEDs show the relative
setting of volume, balance,
center level, surround level,
bass and treble controls
(see “Status Bar Indicators”
section).
25. On
This will illuminate when
the Master On/Off is switched
to On/Standby and a signal
is present.
26. Standby
This will illuminate when the
Master On/Off is switched to
On/Standby and a signal is not
present.
27. Mute Symbol
This will flash whenever the
Mute feature is engaged.

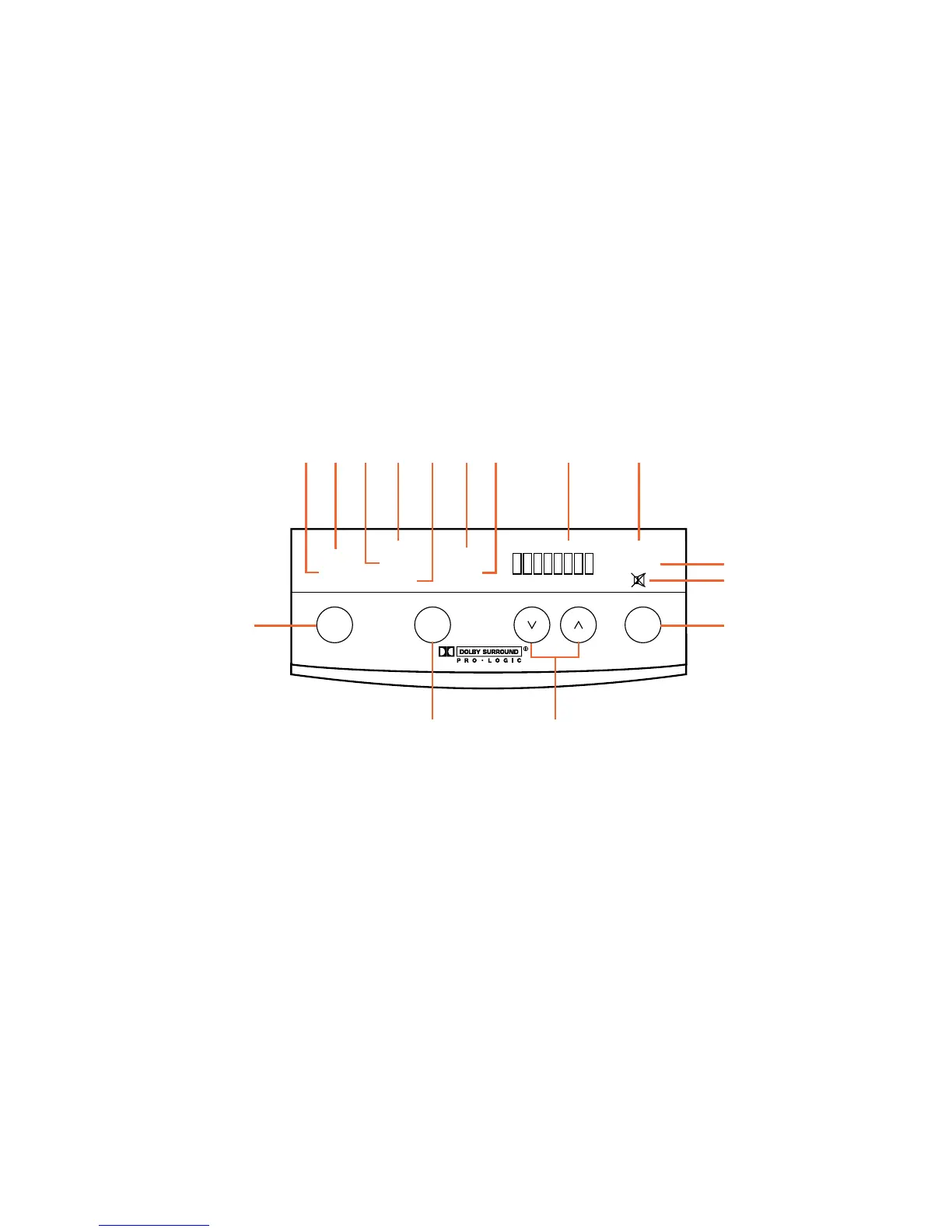

Front Panel Indicators
6. Surround
Press (+) on the remote control
to increase the relative volume
of the surround channels. Press
(–) on the remote control to
decrease the relative volume of
the surround channels.
7. Balance
Press (R) on the remote control
to decrease the volume
of the left channel. Press (L) on
the remote control to decrease
the volume of the right
channel.
8. Treble
Press (+) to increase the level of
high-frequency information.
Press (–) to decrease the level
of high-frequency information.
9. Bass
Press (+) to increase the level
of low-frequency information.
Press (–) to decrease the level
of low-frequency information.
10–14. Surround Modes
From the remote, press one
of these buttons to directly
choose the desired surround
mode (see “Surround Modes”
section). From the front panel,
press (Surround Mode) to cycle
between the surround modes.
15–16. Input Selector
From the remote, press either
(Aux) or (Video) to select the
desired input. From the front
panel, press (Input) to select
the desired input.
