gX-a604 Input connectIons: 4-channel operatIon

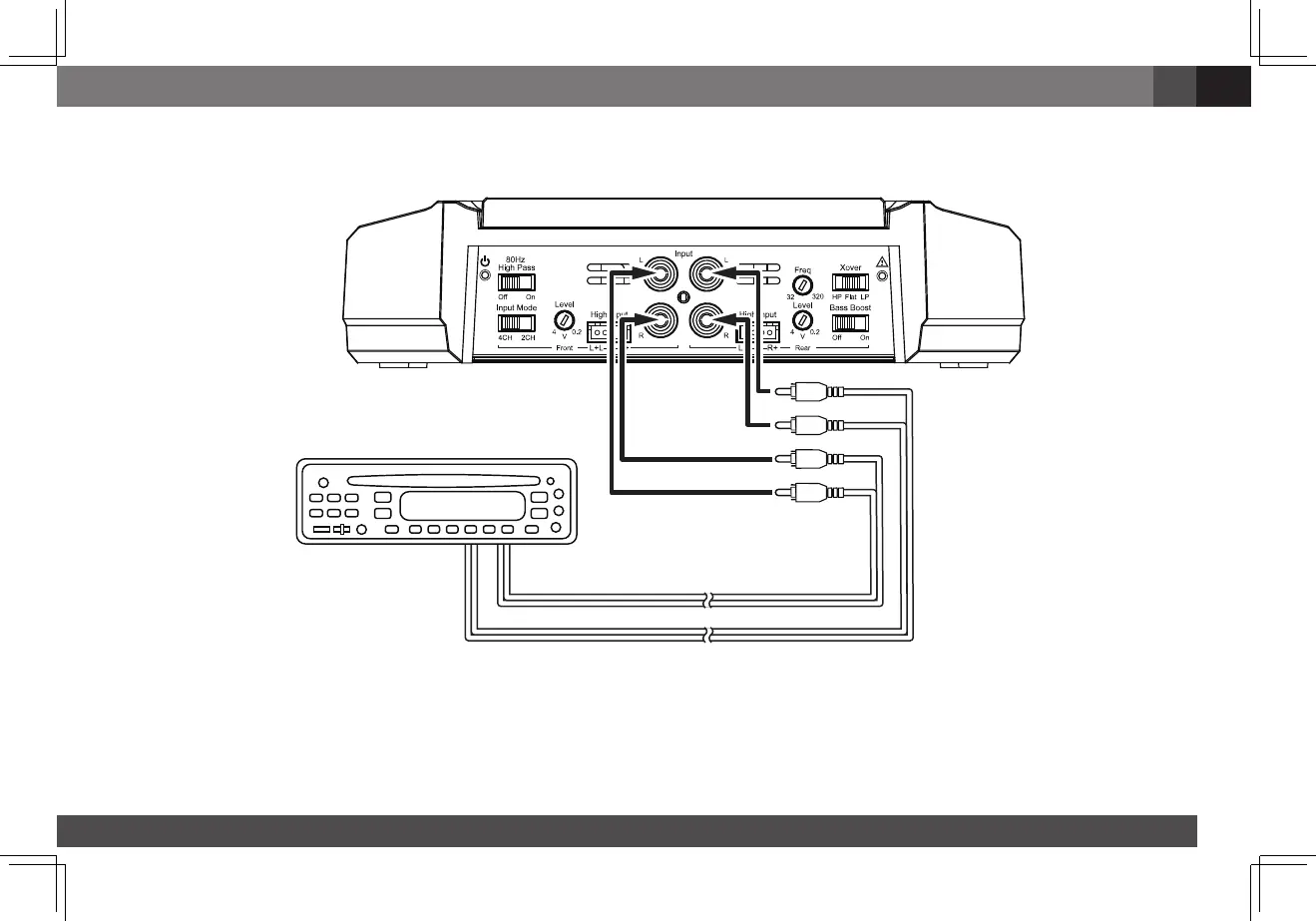

Connectyoursourceunitorprocessor’sfrontandrearleftandrightoutputstotheamplifier’sinputsasshownintheillustration.
Source Unit
Front Line Outputs
Rear Line Outputs
See Set The Crossover Controls, onpage20,forinformationaboutsettingtheamplifier’scontrolsfor4-channeloperation.
To use the speaker-level inputs instead of the line-level inputs, see Using The Speaker-Level Inputs, on page 12.

JBL GX-A604 Specifications

General

Signal-to-Noise Ratio (SNR)	93 dB
Number of amplifier channels	4 channels
Frequency response	20 Hz
