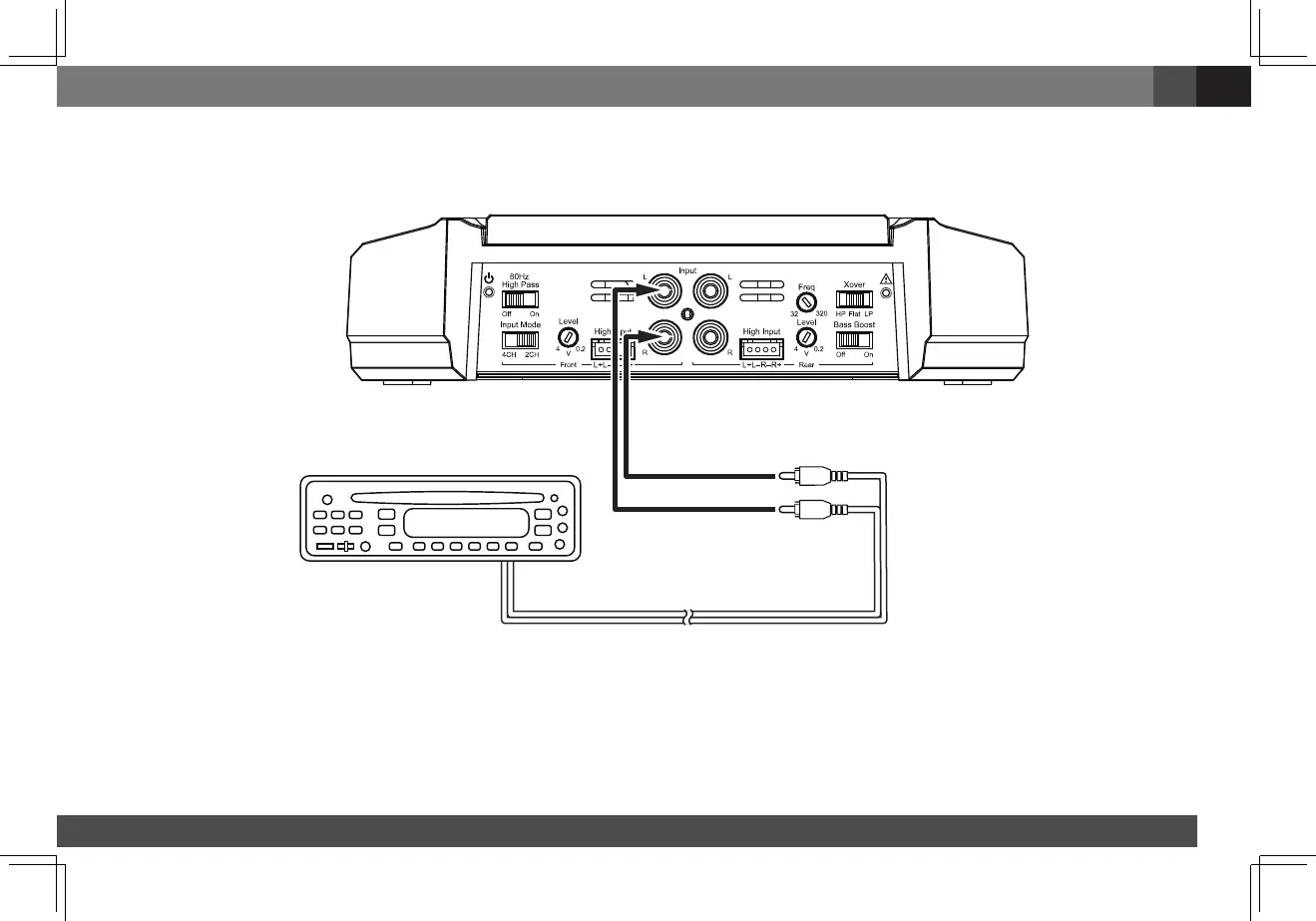

gX-a604 Input connectIons: 2-channel operatIon
Connectyoursourceunitorprocessor’slineoutputsasshownintheillustrationbelow.Useonlythefrontleftandrightinputconnectionsandmake
surethattheInputModeswitchissetinthe"2CH"position.
Source Unit
Front Line Outputs
See Set The Crossover Controls, onpage20,forinformationaboutsettingtheamplifier’scontrolsfor2-channeloperation.
To use the speaker-level inputs instead of the line-level inputs, see Using The Speaker-Level Inputs, on page 12.

JBL GX-A604 Specifications

General

Signal-to-Noise Ratio (SNR)	93 dB
Number of amplifier channels	4 channels
Frequency response	20 Hz
