Appendix B
Mounting Specifications for LSR6328P, LSR6332 and LSR6312SP
Mounting points are provided for use with readily available industry standard mounting brackets. Mounting points are located on the
bottom of the LSR6328P and rears of the LSR6332 and LSR6312SP models.
Fasterner specifications:
Type: M6 metric thread
Length: 38.1 mm (1.5 in) plus the thickness of the mounting plate

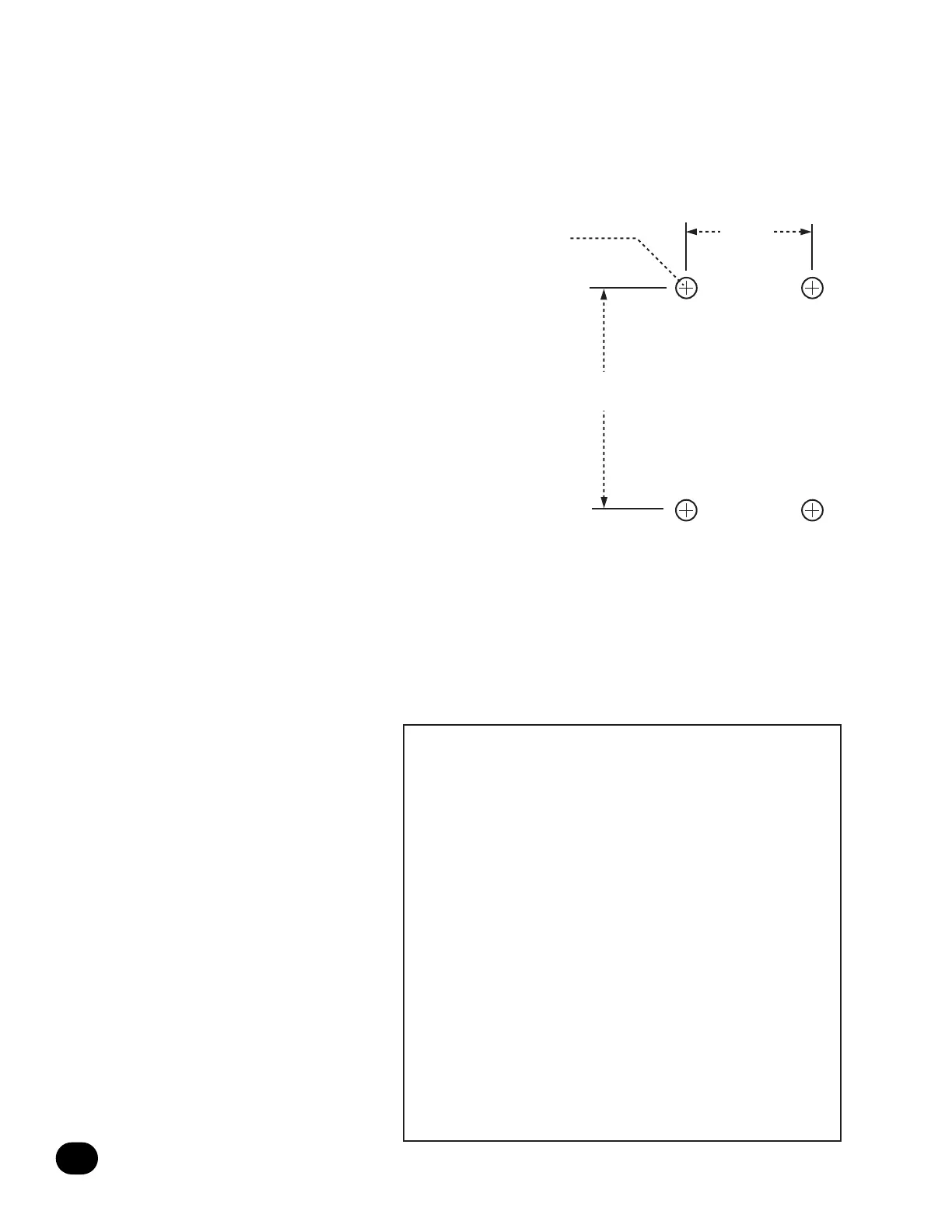

Hole Pattern:
Caution: Unsafe mounting or overhead suspension of any heavy load can result in serious injury and equipment damage. Mounting of
speakers should be done by qualified persons in accordance with all applicable local safety and construction standards. Be certain to
follow the instructions providied by the manufacturer of the mounting bracket, be certain that it is capable of supporting the weight of
the speaker to be mounted.
Appendix C
RMC™ Room Mode Correction System Specifications
Frequency Control: 18 frequency centers, 21 detents
Q Contorl: 1/2 octave to 1/20th octave, 21 detents
Depth Control: 0 dB to -14 dB cut, 21 detents
Makeup Gain Control (LSR6312SP only): 0 dB to +6 dB
Remote RMC Bypass Jack: 1/4” tip-sleeve jack
7.9 mm
(0.31 in)
127 mm
(5.0 in)
69.9 mm
(2.75 in)
Data Entry in RMC Equalizer:
Control Position Width (%) Frequency (Hz) Depth (dB)
0 (CCW) 4.5 24 0.0
1 5.0 25 0.0
2 7.5 26 0.0
3 10.0 28 0.5
4 12.5 31 1.1
5 16.5 35 1.9
6 20.5 41 2.9
7 23.0 45 4.4
8 26.0 47 6.4
9 28.0 50 7.9
10 29.5 53 8.3
11 31.0 57 8.9
12 34.0 62 9.5
13 39.0 68 10.2
14 41.5 76 11.0
15 43.5 85 11.7
16 45.0 90 12.7
17 46.5 90 13.1
18 48.0 95 13.5
19 49.0 95 13.9
20 (CW) 50.0 95 14
(CCW) counter clockwise
(CW) clockwise
18
