JBL MPS-1000 User Manual

Declaration of Conformity
W
e, Harman Consumer Group, Inc.
2, route de
T
ours
72500 Château du Loir
France
declare in own responsibility that the product
described in this manual is in compliance with
technical standards:
EN 55013:2001
EN 55020:2002
Klaus Lebherz
Harman Consumer Group, Inc.
Château du Loir
, France 5/07
Harman Consumer Group, Inc.
250 Crossways Park Drive
Woodbury, NY 11797 USA
www.jbl.com
© 2007 Harman International Industries,
Incorporated. All rights reserved.
JBL is a trademark of Harman International
Industries, Incorporated, registered in the
United States and/or other countries.
Part No. MPS1000OM5/07
www.jbl.com
SYMPTOM LIKELY CAUSE SOLUTION
Power LED is not lit. Fuse is blown. Fuse should be replaced.
Head unit is not Check remote voltage, and power,
functioning properly. ground or remote connections. The
MPS1000 is designed to shut off if
the battery voltage falls below 10V.
This is to ensure that your battery
isn’t completely drained. Charge
the boat’s battery.
Power LED is lit Inputs are not connected. Check connections.
but there is no bass.
Head-unit fader control Adjust head-unit fader control to
is not set properly. feed audio signals to the MPS1000.
MPS1000 sounds Gain control is set too high. Readjust Gain control (see “Tuning
muddy or distorted. the MPS1000” on the previous page).
Bass Boost is set too high. Readjust Bass Boost control
(see “Tuning the MPS1000” on the
previous page).
Head-unit output is
distorted or blown.
A valid serial number is required for warranty coverage.
Features, specifications and appearance are subject to change without notice.
TROUBLESHOOTING
MPS1000
10" (250mm) Marine Powered Subwoofer
• Amplifier Power: 250W RMS
• Frequency Response: 40Hz – 100Hz
• Signal-to-Noise Ratio: 81.1dB
• Fuse: 30A
• Max. Current Draw: 14A
• Idle Current Draw: <1.03A
• Input Sensitivity:
• Line-Level Input: 100mV to 6V
• Speaker-Level Input: 1V to 13V
• Crossover Frequency: 50Hz to 100Hz
• Crossover Slope: 12dB per octave
• Bass Boost: 0dB to +7dB @ 50Hz
• Mounting Depth: 7-15/16" (202mm)
• Cutout Diameter: 10-1/8" (258mm)
• Overall Diameter: 13"/13-1/16" (331mm/332mm)
• ISO-8846 Marine-compliant

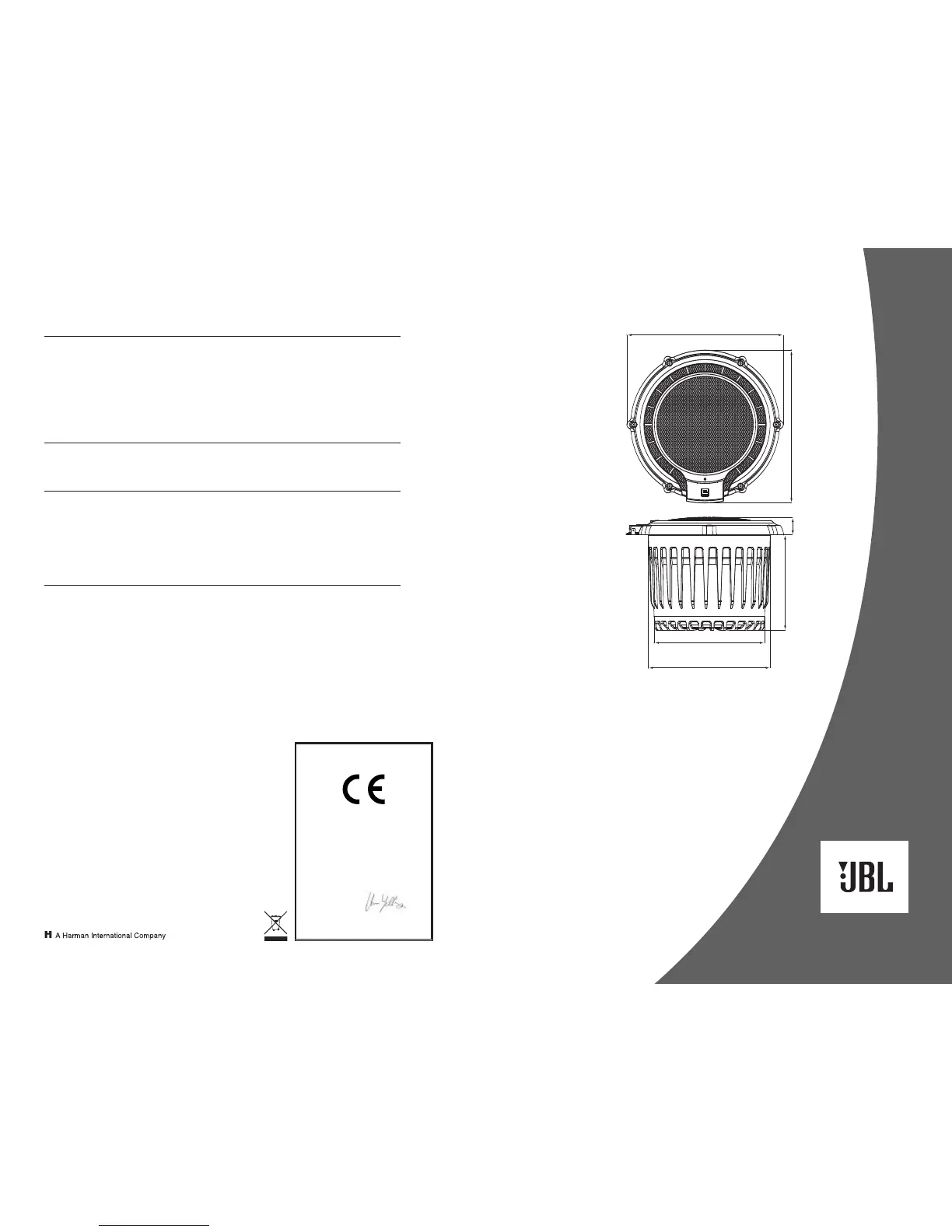

SPECIFICATIONS
13"
331mm
9-3/16"
234mm
10-1/8"
258mm
13-1/16"
332mm
1-1/2"
39mm
7-15/16"
202mm

JBL MPS-1000 Specifications

Audio Specifications

amplifier power	250W RMS
frequency response	40Hz – 100Hz
signal-to-noise ratio	81.1dB
input sensitivity (line-level)	100mV to 6V
input sensitivity (speaker-level)	1V to 13V
crossover frequency	50Hz to 100Hz
crossover slope	12dB per octave
bass boost	0dB to +7dB @ 50Hz

Power

fuse	30A
max. current draw	14A
idle current draw	<1.03A

Dimensions

mounting depth	7-15/16" (202mm)
cutout diameter	10-1/8" (258mm)
overall diameter	13"/13-1/16" (331mm/332mm)
