JBL PowerBass PB10 User Manual

5
Dolby Digital or DTS (or Other Digital Surround Mode) Connection
Use this installation method
for Dolby Digital, DTS or other
digital surround processors:
IMPORTANT: Make sure that
the LFE toggle switch on the
subwoofer is in the “LFE”
position. Use the line-level
input jacks for the Low-
Frequency Effects channel.
Connect these jacks to the
LFE output or subwoofer
output on your receiver or
amplifier.
Note: If your receiver or
amplifier only has one
subwoofer output jack,
then you may connect the
subwoofer output on your
receiver/preamplifier to either
the left or right line-level input
on the subwoofer. It makes no
difference which jack you
choose.
Connect each speaker to the
corresponding speaker
terminals on your receiver or
amplifier.
Make sure that you have
configured your surround-
sound processor for
“Subwoofer On” or “LFE On.”
The front left, front right,
center and rear speakers
should be set to “Small” or
“Large” depending on their
size and frequency response.
Consult your receiver’s or
processor’s owner’s manual.
CROSSOVER
FREQUENCY
LEVEL
LINE LEVEL IN
PHASE
Min
Max
L R
LFE NORMAL
HIGH
LEVEL
IN
L
R
HIGH
LEVEL
OUT
+ –
50Hz
0º 180º
150Hz

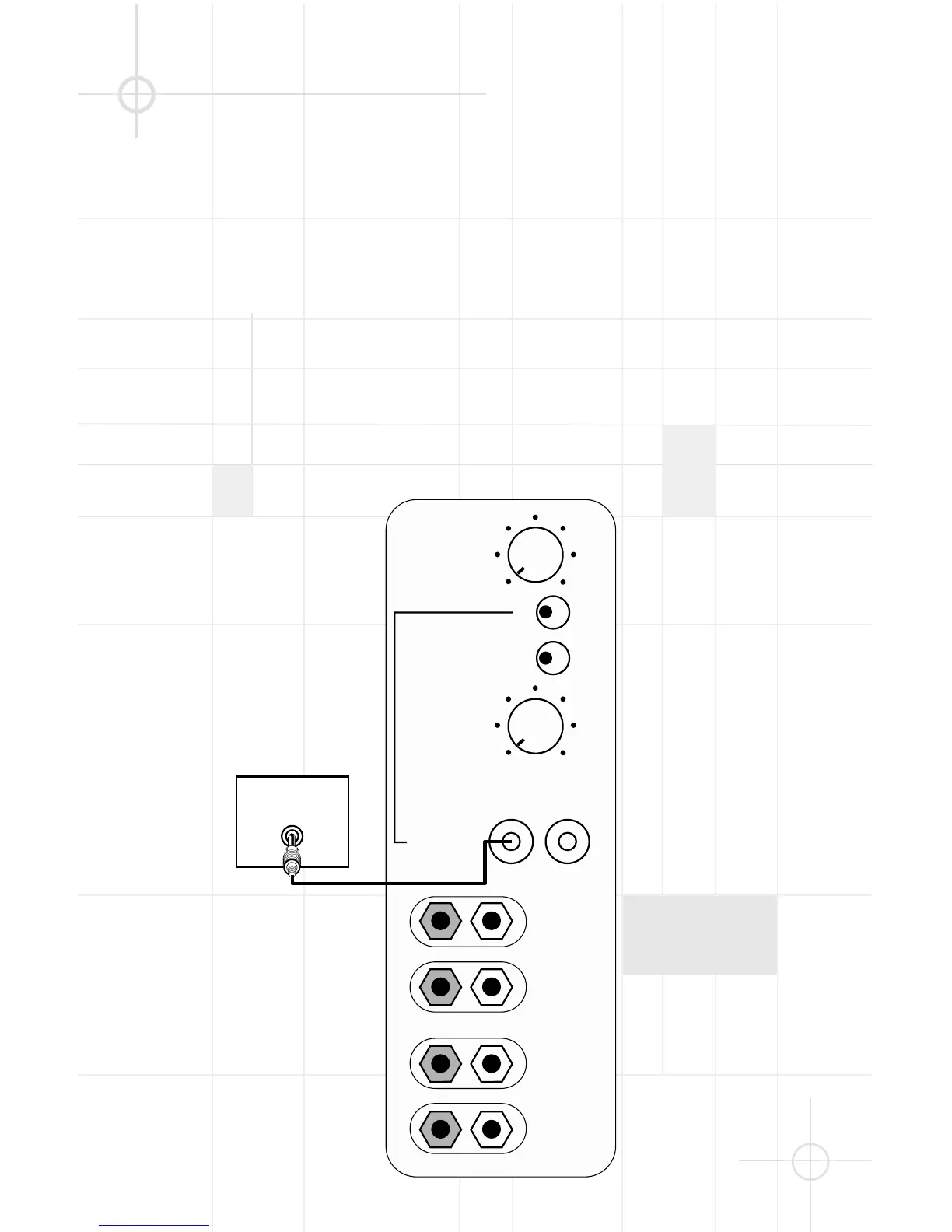

Subwoofer
Output/LFE
RECEIVER/PREAMPLIFIER
L
R
For LFE use L or R
