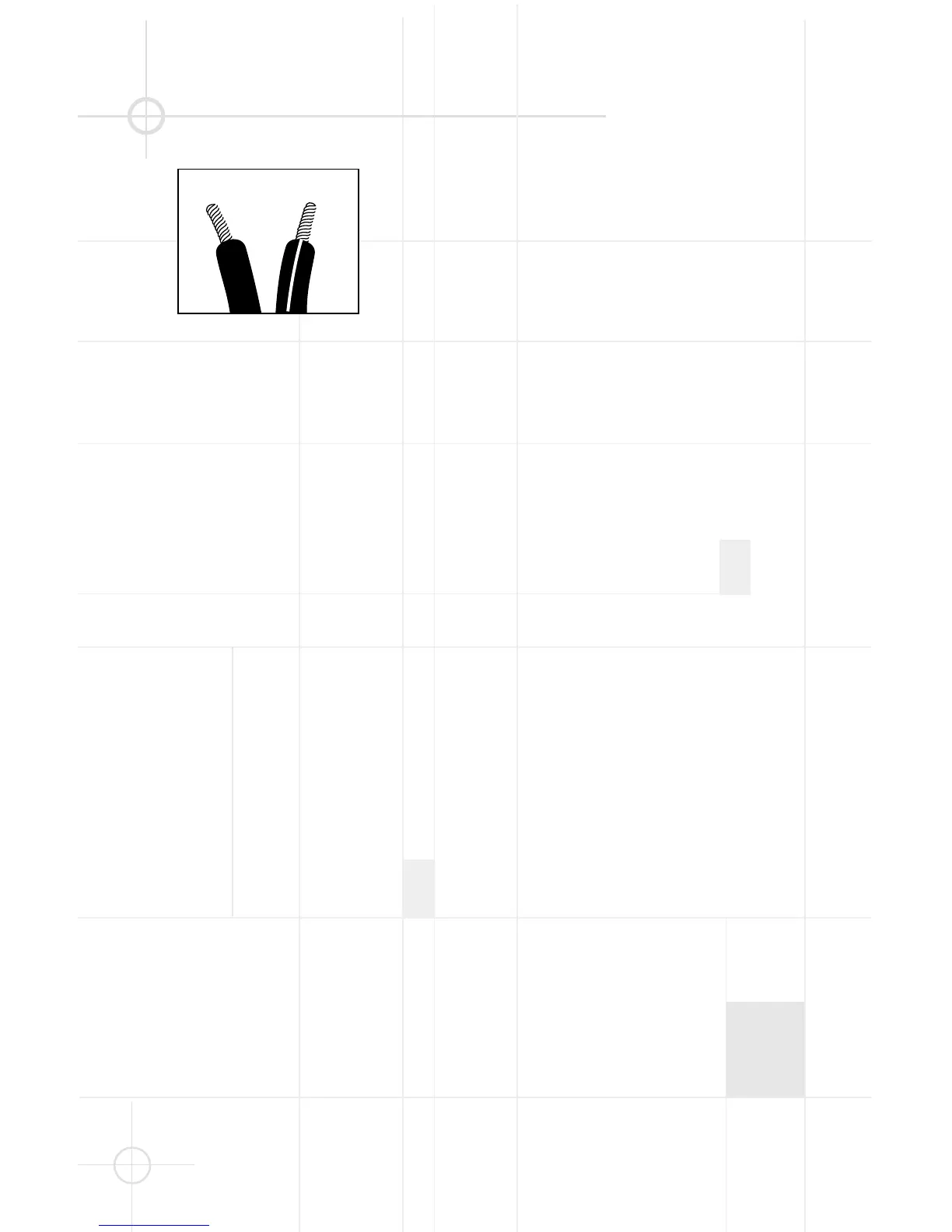

Separate and strip the

ends of the speaker wire

as shown. Speakers and

electronics terminals have

corresponding (+) and (–)

terminals. Most manu-

facturers of speakers and

electronics, including JBL,

use red to denote the (+)

terminal and black for the

(–) terminal.

The (+) lead of the speaker

wire is noted with a stripe. It

is important to connect both

speakers identically: (+) on

the speaker to (+) on the

amplifier and (–) on the

speaker to (–) on the

amplifier. Wiring “out of

phase” results in thin sound,

weak bass and a poor

stereo image.

With the advent of

multichannel surround-

sound systems, connecting

all of the speakers in your

system with the correct

polarity remains equally

important in order to

preserve the proper

ambience and directionality

of the program material.

SPEAKER CONNECTIONS

Connection Tips
