TURNING THE SUBWOOFER ON AND OFF
Set the subwoofer’s Power Switch to the “On” position. The subwoofer will
automatically turn itself on when it receives an audio signal, and it will go
into Standby mode after it has received no audio signal for approximately
10 minutes. The subwoofer’s LED will glow green when the subwoofer is
on and will glow red when the subwoofer is in Standby.
If you will not be using the subwoofer for an extended period – for
instance, if you’re going on vacation – set the Power Switch to the “Off”
position.

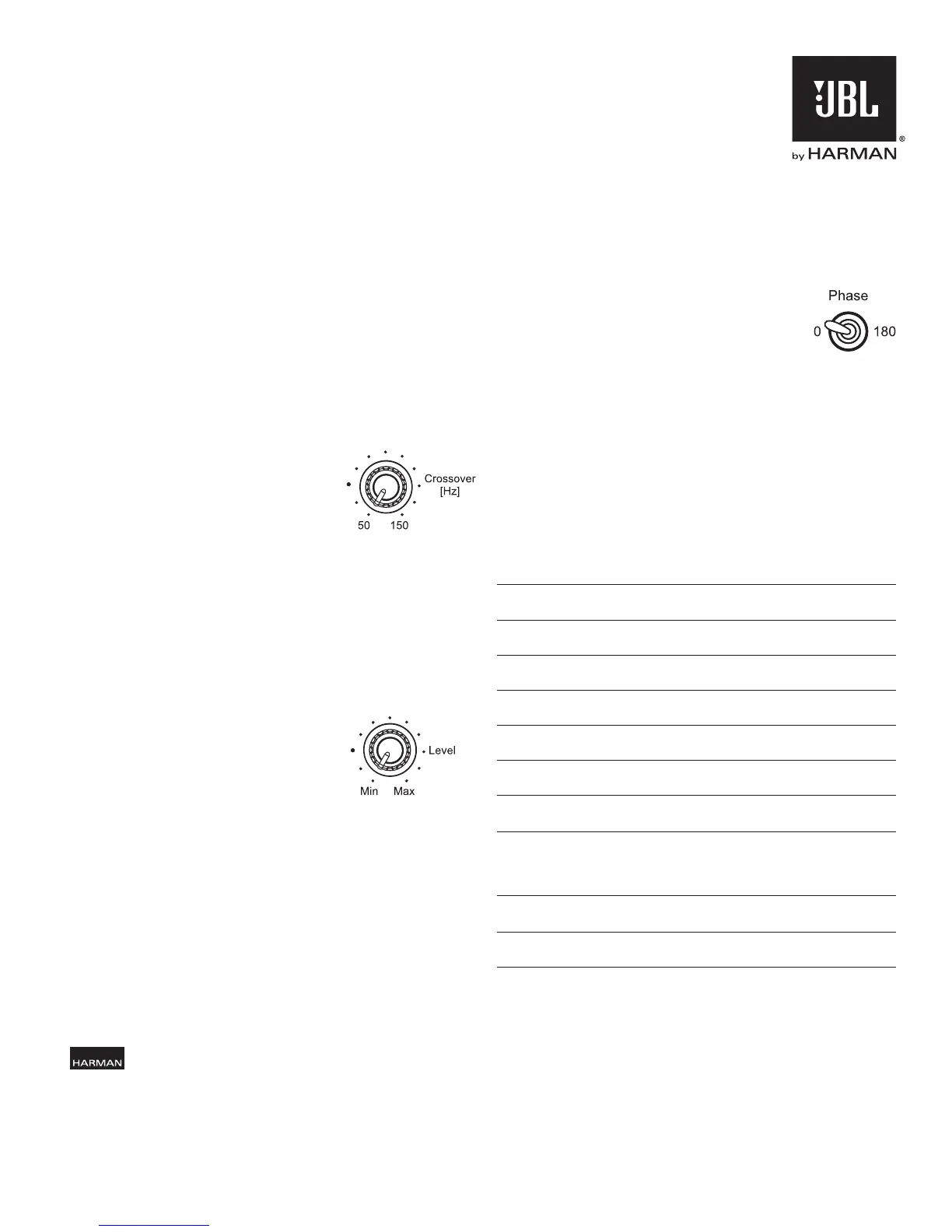

SUBWOOFER ADJUSTMENTS: CROSSOVER CONTROL
NOTE: The Crossover control functions only
when the Input Mode switch is in the “Normal”
position.
The Crossover control adjusts the subwoofer’s
built-in low-pass filter crossover between
50Hz and 200Hz. The higher you set the
Crossover control, the higher in frequency the
subwoofer will operate and the more its bass will “overlap” that of the
satellite speakers. This adjustment helps achieve a smooth transition of
bass frequencies between the subwoofer and the satellites for a variety of
different rooms and subwoofer locations.
To set the Crossover control, listen for the smoothness of the bass. If
the bass seems too strong at certain frequencies, try a lower Crossover
control setting. If the bass seems too weak at certain frequencies, try a
higher Crossover control setting.
SUBWOOFER ADJUSTMENTS: VOLUME
Use the Level control to set the subwoofer’s
volume. Turn the knob clockwise to increase
the subwoofer’s volume; turn the knob
counterclockwise to decrease the volume. Once
you have balanced the subwoofer’s volume
with that of the other speakers in your system,
you shouldn’t have to change the Level control
setting.
Notes on Setting Subwoofer Volume:
• Sometimes the ideal subwoofer volume setting for music is too loud
for films, while the ideal setting for films is too quiet for music. When
setting the subwoofer volume, listen to both music and films with
strong bass content and find a “middle ground” volume level that
works for both.
• If your subwoofer always seems too loud or too quiet, you may want
to place it in a different location. Placing the subwoofer in a corner will
tend to increase its bass output, while placing it away from any walls
or corners will tend to lessen its bass output.
SUBWOOFER ADJUSTMENTS: PHASE
The Phase switch determines whether the subwoofer
driver’s piston-like action moves in and out in phase
with the satellite speakers. If the subwoofer were to
play out of phase with the satellite speakers, the sound
waves from the satellites could partially cancel out the
waves from the subwoofer, reducing bass performance
and sonic impact. This phenomenon depends in part on the placement of
all the speakers relative to each other in the room.
Although in most cases you should leave the Phase switch in the “Normal”
position, there is no absolutely correct setting for the Phase switch. When
the subwoofer is properly in phase with the satellite speakers, the sound
will be clearer and have maximum impact, and percussive sounds like
drums, piano and plucked strings will sound more lifelike. The best way
to set the Phase switch is to listen to music that you know well and to set
the switch in the position that gives drums and other percussive sounds
maximum impact.
SPECIFICATIONS
OPERATING THE SUBWOOFER
© 2010 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. PolyPlas
is a trademark of HARMAN International Industries, Incorporated.
Features, specifications and appearance are subject to change without notice.
Part No. 950-0328-001
HARMAN Consumer, Inc.
8500 Balboa Boulevard, Northridge, CA 91329 USA www.jbl.com
Low-frequency
transducer:
10" (250mm) PolyPlas cone (down-firing)
Enclosure type: Ported (down-firing)
Amplifier power: 300 watts (RMS); 500 watts (peak)
Frequency response: 27Hz – 150Hz (–3dB)
Audio controls: Volume level, crossover frequency, phase
Connections: RCA line-level and LFE inputs
Power requirement: 120V, 60Hz (US); 220V – 230V, 50Hz/60Hz
(EU)
Power consumption: <1W (0.040A @ 230V) standby;
320W (1.8A @ 230V) peak
<6W (0.06A @ 120V) standby;
320W (3.2A @ 120V) peak
Dimensions (W x H x D): 17-3/8" x 18-1/2" x 17-3/8"
(441mm x 470mm x 441mm)
Weight: 39.7 lb (18.0kg)
0242CSK - JBL SUB150P OM_v3.indd 4 29/09/10 9:57:52
