ARRAY CONFIGURATION SELECTOR (ACS)

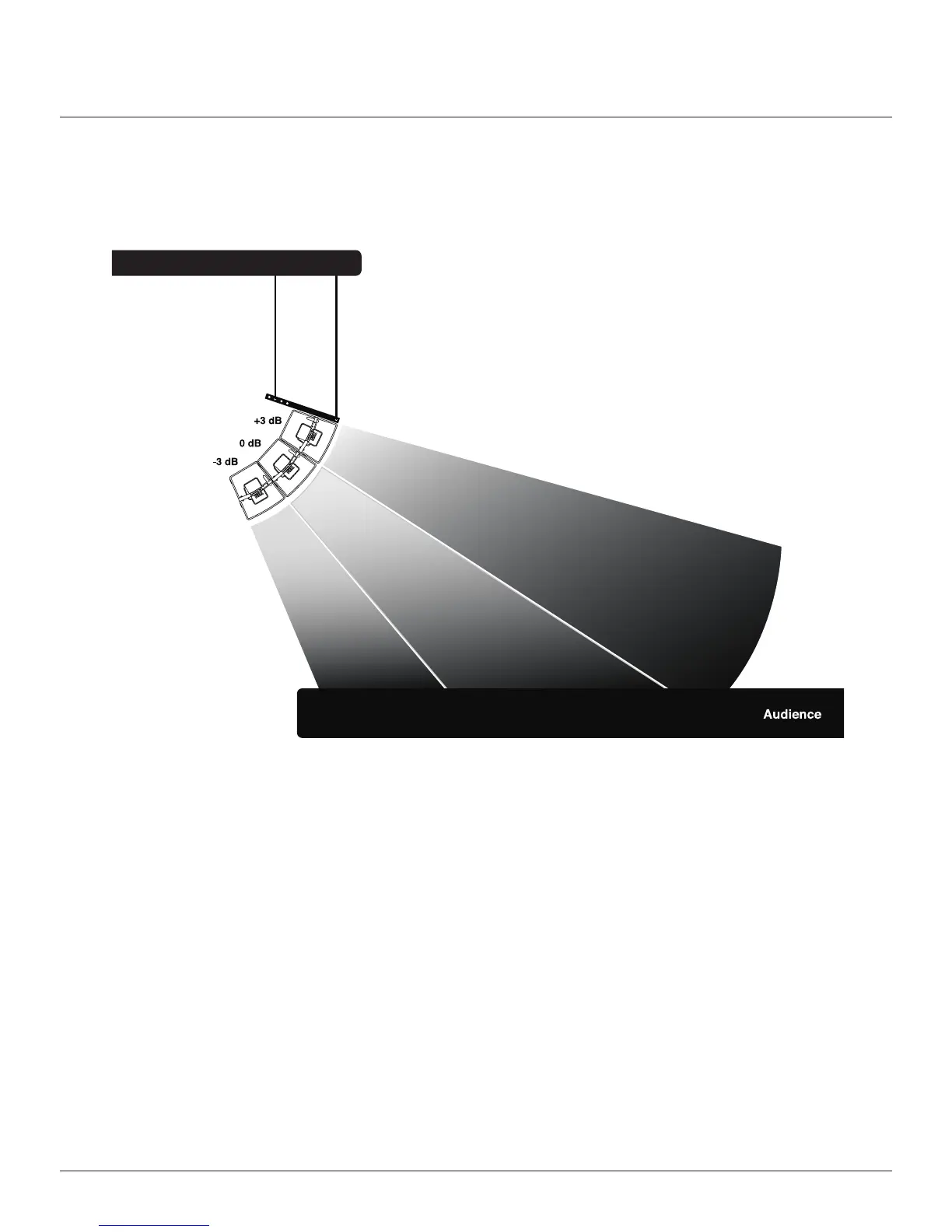

Below is an example of applying the ACS in a three-speaker array. In this particular configuration, the ACS on
the top speaker is set at +3 dB, the middle speaker at 0 dB, and the bottom speaker -3 dB.
VRX_Powered_UsersGuid012808 copy 3.qxp 1/30/08 4:52 PM Page 20

JBL VRX932LAP Specifications

General

Frequency Response	57 Hz - 20 kHz
Coverage Pattern	100° x 15° nominal
Maximum SPL Output	136 dB
LF Driver	1 x JBL 2262FF 305 mm (12 in) Differential Drive woofer with neodymium magnet
HF Driver	3 x JBL 2408J, 38 mm (1.5 in) voice-coil compression driver
Dimensions	597 mm
Type	Powered loudspeaker
Amplifier	Crown Class D
Input Connectors	XLR with loop through
Suspension	Integral rigging hardware for simple connection of enclosures
System Processing	DSP-based
