Introduction
Make the machine safe before you start a
maintenance procedure. Refer to (PIL 01-03).
You can complete most of the maintenance
procedures with the lift arm lowered. Unless a
maintenance procedure instructs you differently, you
must lower the lift arm.
If you raise the lift arm to get access for maintenance,
you must install the maintenance strut on the lift arm.
If the cab is to be lifted to get access for
maintenance, you must raise the lift arm and install
the maintenance strut on the lift arm.
Release the hydraulic pressure. Refer to (PIL 30-00).

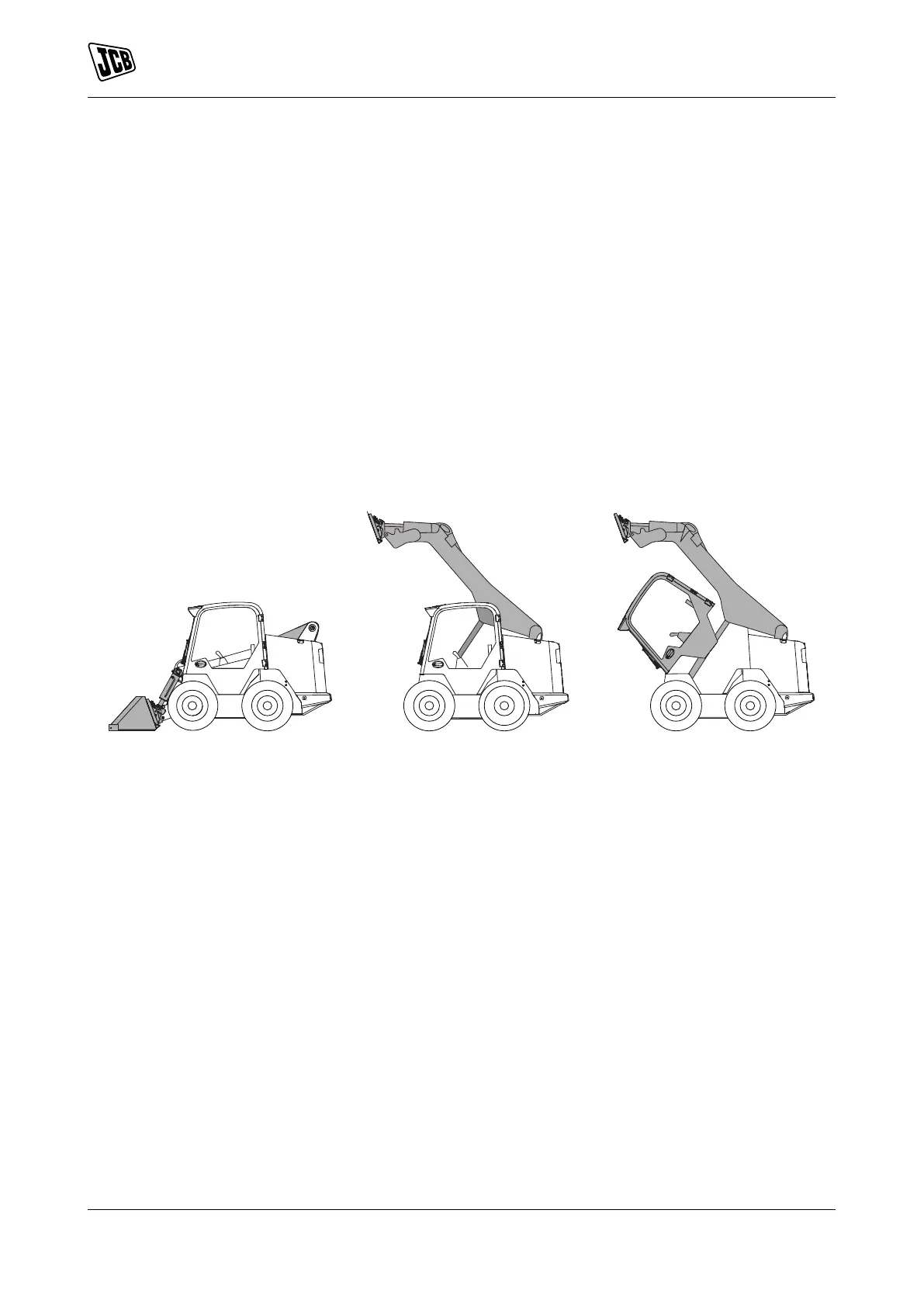

Figure 2.
A Lift arm lowered B Lift arm raised
C Lift arm and cab raised
Lift Arm Lowered
1. Park the machine on level, solid ground. Refer to
(PIL 01-03).
2. Lower the lift arm.
3. Put the attachment flat on the ground.
4. Stop the engine and remove the ignition key. If
the keyless ignition option is installed stop the
engine and wait
Duration: 15s
5. Disconnect the battery to prevent accidental
operation of the engine. Refer to (PIL 33-03).
6. If necessary, put blocks against the two sides of
the wheels before you get below the machine.
Lift Arm Raised and Lift Arm and Cab
Raised
If you raise the lift arm to get access for maintenance,
you must install the maintenance strut on the lift arm.
