General
> Machine Type – Compact Wheeled Loader
> 406,407 &409 front end articulated Loader
Intended Use
> Machine intended to be used in normal conditions
> With bucket fitted, machine work cycle consists of digging and discharging of materials
> Applications include earthmoving, road construction, building and construction, landscaping etc.
> Can be used for object handling
> Not intended for use in mining and quarrying applications, demolition, forestry and any
explosive atmospheres
> Must not be used with attachments of unknown weight, used on surfaces with unknown stability
– list not exhaustive
> PPE may be required in certain applications/environments e.g. high silica concentration or asbestos
> The machine should not be operated by any person who isn’t appropriately qualified or had the
correct training
> Prior to use, the machines suitability should be considered with regards to the intended applications
and any hazards which may be present

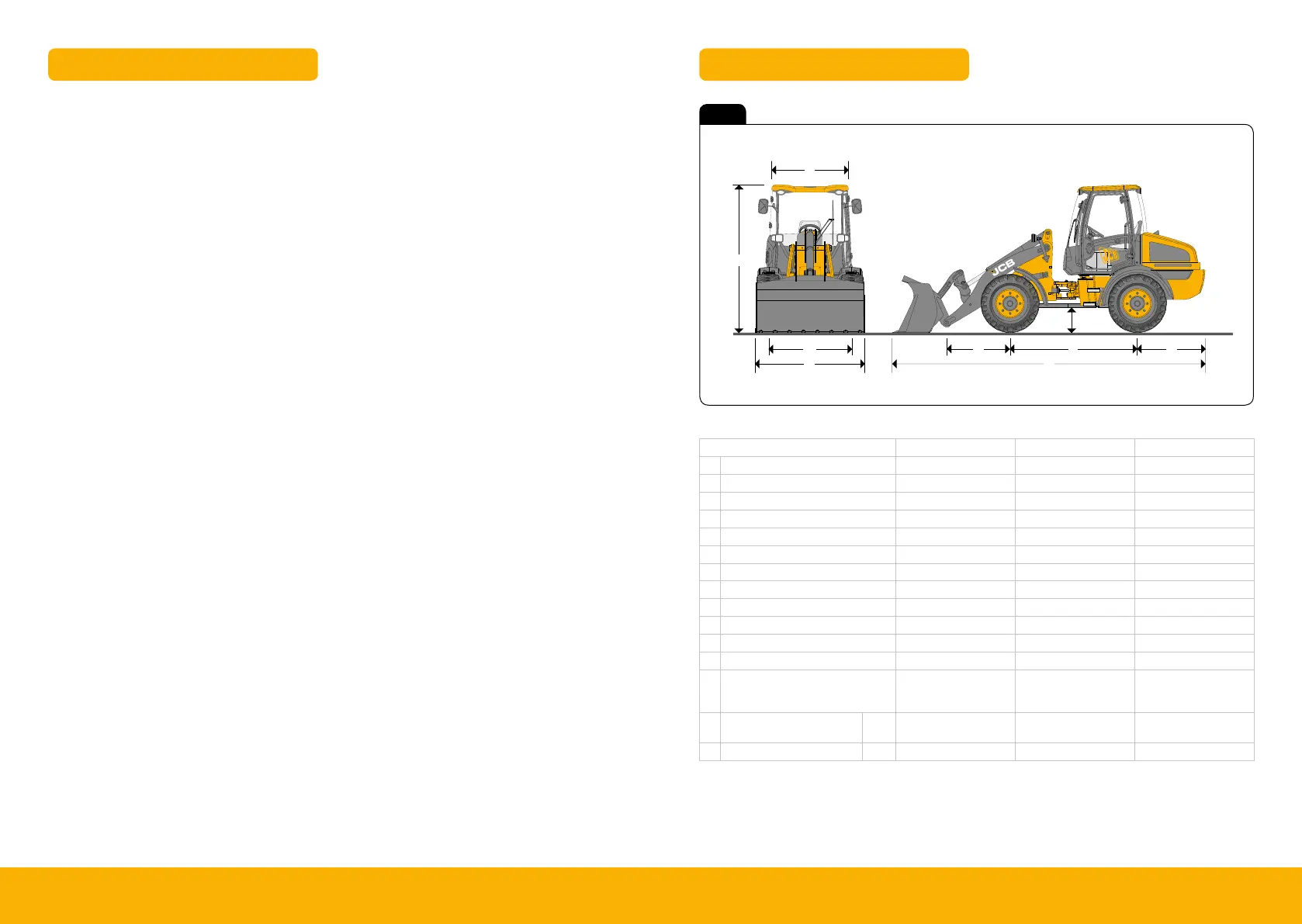

Intended Use Dimensions
Machine model 406 407 409
A Overall length mm 5133 5133 5465
B Axle to pivot pin mm 906 906 1130
C Wheelbase mm 2100 2100 2205
D Axle to counterweight face mm 1268 1268 1295
E Ground clearance mm 313 313 472
F Width over cab mm 1468 1468 1468
G Width over tyres mm 1727 1727 1898
H Wheel track mm 1390 1390 1490
J Height over cab mm 2500 2500 2643
Front axle weight kg 1475 1395 1850
Rear axle weight kg 3398 3668 4076
Total weight kg 4873 5063 5926
Engine
JCB Kohler
Mechanical 36kW
(49hP)
JCB Kohler
Mechanical 48kW
(64hP)
JCB Kohler
Mechanical 55.4kW
(74hP)
Transmission Hydrostatic 2 Speed Hydrostatic 2 Speed
Hydrostatic 2 Speed
(Option 3 speed)
Axles Dana III Dana III Dana III
A
C
B
D
E
J
G
F
H
Fig 1
