Introduction
Machine Description
3 3
9811/5200-2
Machine Description
The JCB Backhoe Loader
P2-1001_3
The Backhoe Loader is a self propelled wheeled machine
with a main frame designed to carry both front mounted
equipment and rear mounted backhoe equipment with
stabilisers.
When used in the backhoe mode, the machine is
stationary and normally digs below ground level. A
backhoe work cycle normally comprises excavating,
elevating, swinging and discharging material
When used in the loader mode (bucket use), the machine
loads through forward motion. A loader work cycle
normally comprises filling, elevating, transporting and
discharge of material.
Intended Use
The machine is intended to be used under normal
conditions for the applications described in this manual. If
the machine is used for other purposes or in dangerous
environments, for example in a flammable atmosphere or
in areas with dust containing asbestos, special safety
regulations must be followed and the machine must be
equipped for use in these environments.

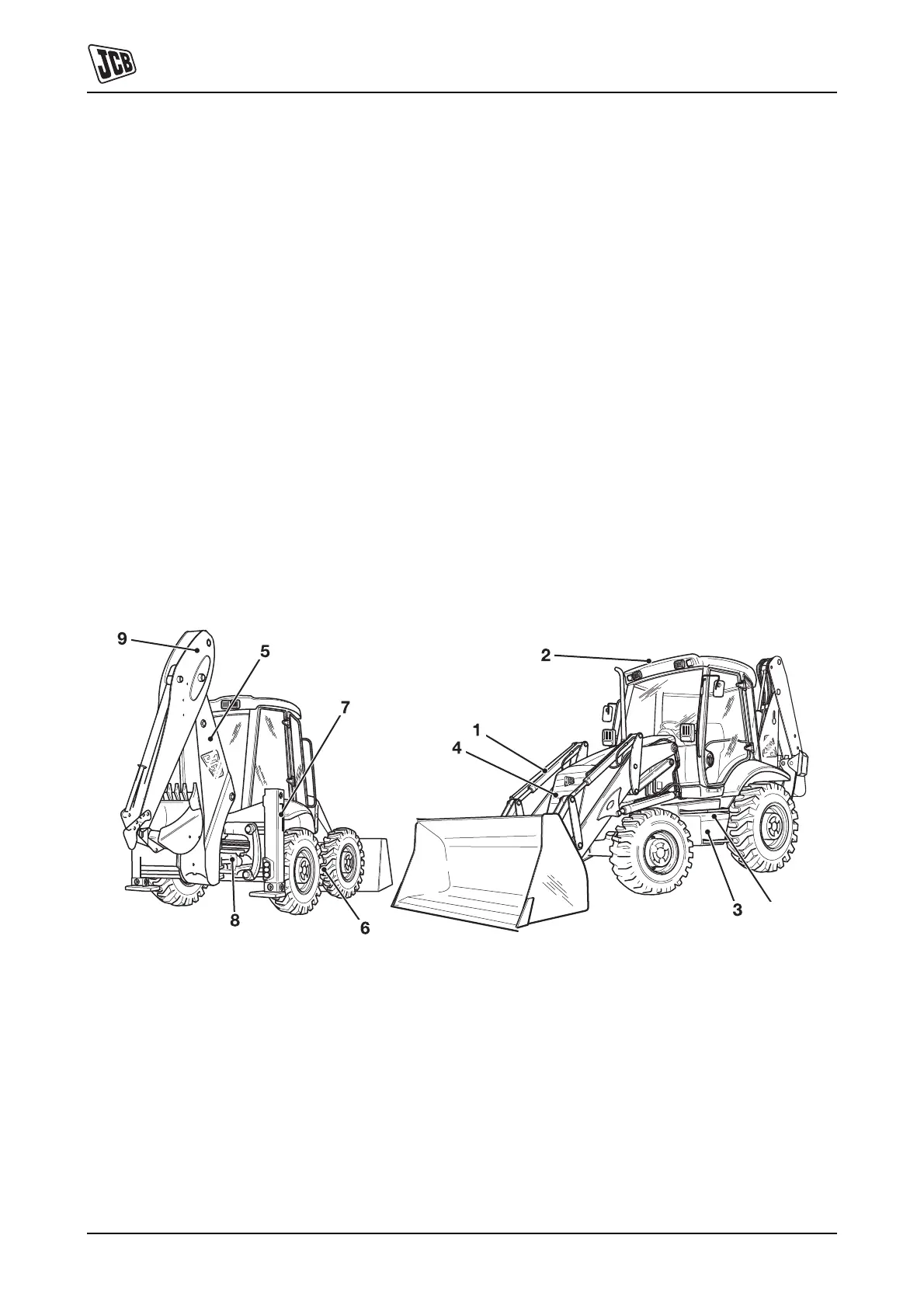

Component List
1 Loader arm
2 ROPS/FOPS cab
3 Hydraulic oil tank
4 Battery compartment
5 Boom
6 Fuel tank
7 Stabilisers
8 Kingpost
9 Dipper
10 Toolbox (If Fitted)
711680-2
Fig 2.
10
