About the Product
Console Switches
19 9821/7850-4 19
Console Switches
General
The installed switches and their positions can change according to the specification of the machine.
Each switch has a graphic symbol to show the function of the switch. Before you operate a switch, make sure
that you understand its function.
The rocker switches have two or three positions (as shown).
If the switch has a backlight, then the graphic symbol illuminates when the ignition switch or side lights are
in the on position.
The light bar illuminates to show that the switch function is active.

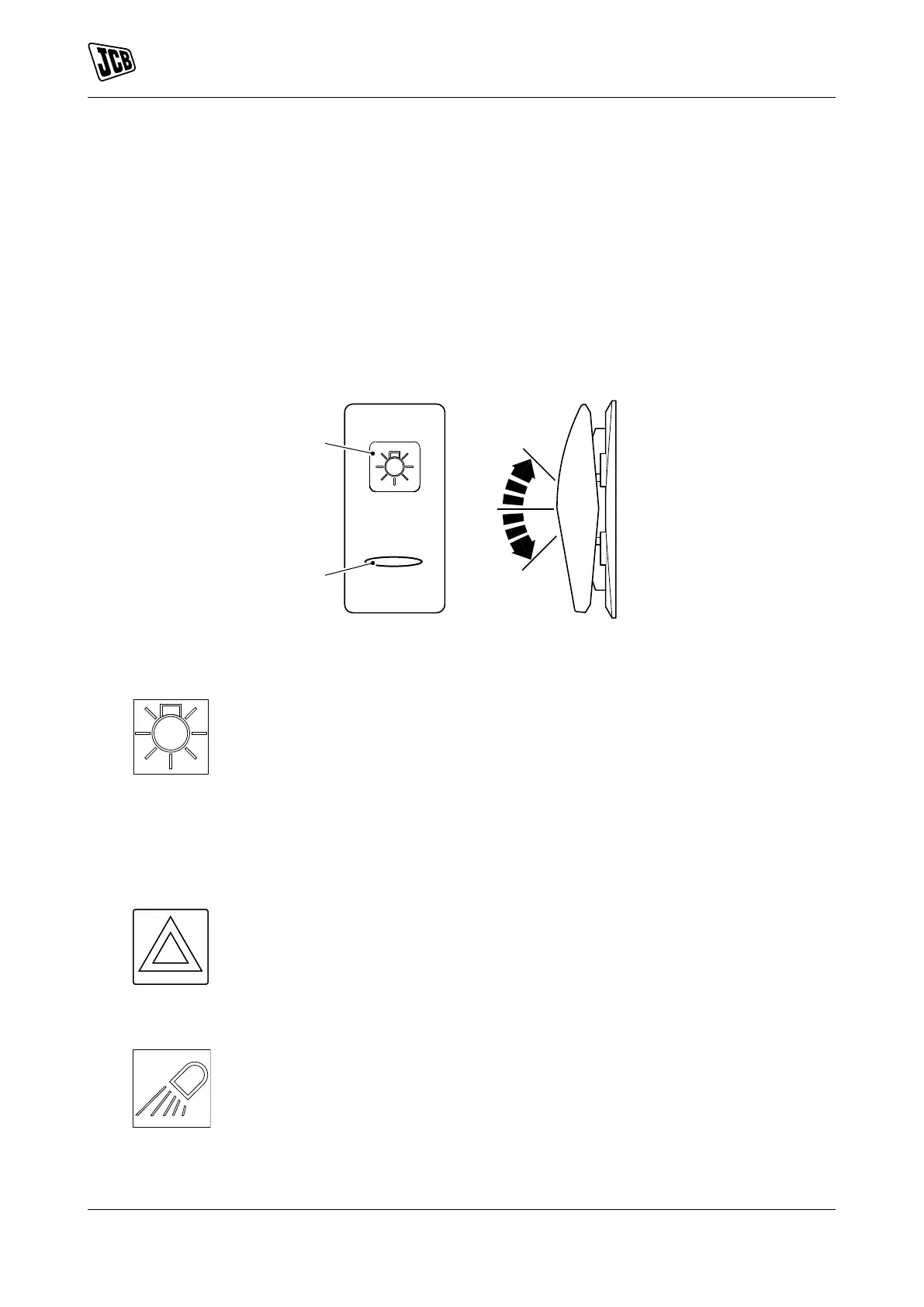

Figure 15.
A Graphic symbol B Light bar
Road Lights
Three position rocker switch. The switch functions operate front sidelight, headlights
and rear tail lights. Position 2 operates when the ignition is in the on and off positions.
Position 3 operates when the ignition is in the on position. Machines without headlights
or side lights are designed for site use. You may be breaking local laws if you travel
on the road without headlights or side lights.
Position : 1 = Off
Position : 3 = Sidelights on.
Position : 2 = Headlights and rear tail lights on (ignition switch on).
Position : 2 = Sidelights and rear tail lights on (ignition switch off).
Hazard Warning Lights
Two position rocker switch. The switch functions operate when the ignition switch is
in the on and off positions.
Position : 1 = Off
Position : 2 = On. A light on the instrument panel flashes with the outside lights.
Front Work Lights
Two position rocker switch. The switch functions operate when the ignition switch is
in the on and off positions.
Position 1: Off
Position 2: Front work lights on
WARNING! Do not drive on the road with the work lights switched on. You can interfere with other drivers
visibility and cause an accident.
