Auxiliary Circuits
96
9821/6100-4
96
Refer to: Entering and Leaving the Operator Station (Page 26).
5.
Lower the
left hand
console and press
the control
isolation switch
(in toolbox compartment)
to enable
the
hydraulics.

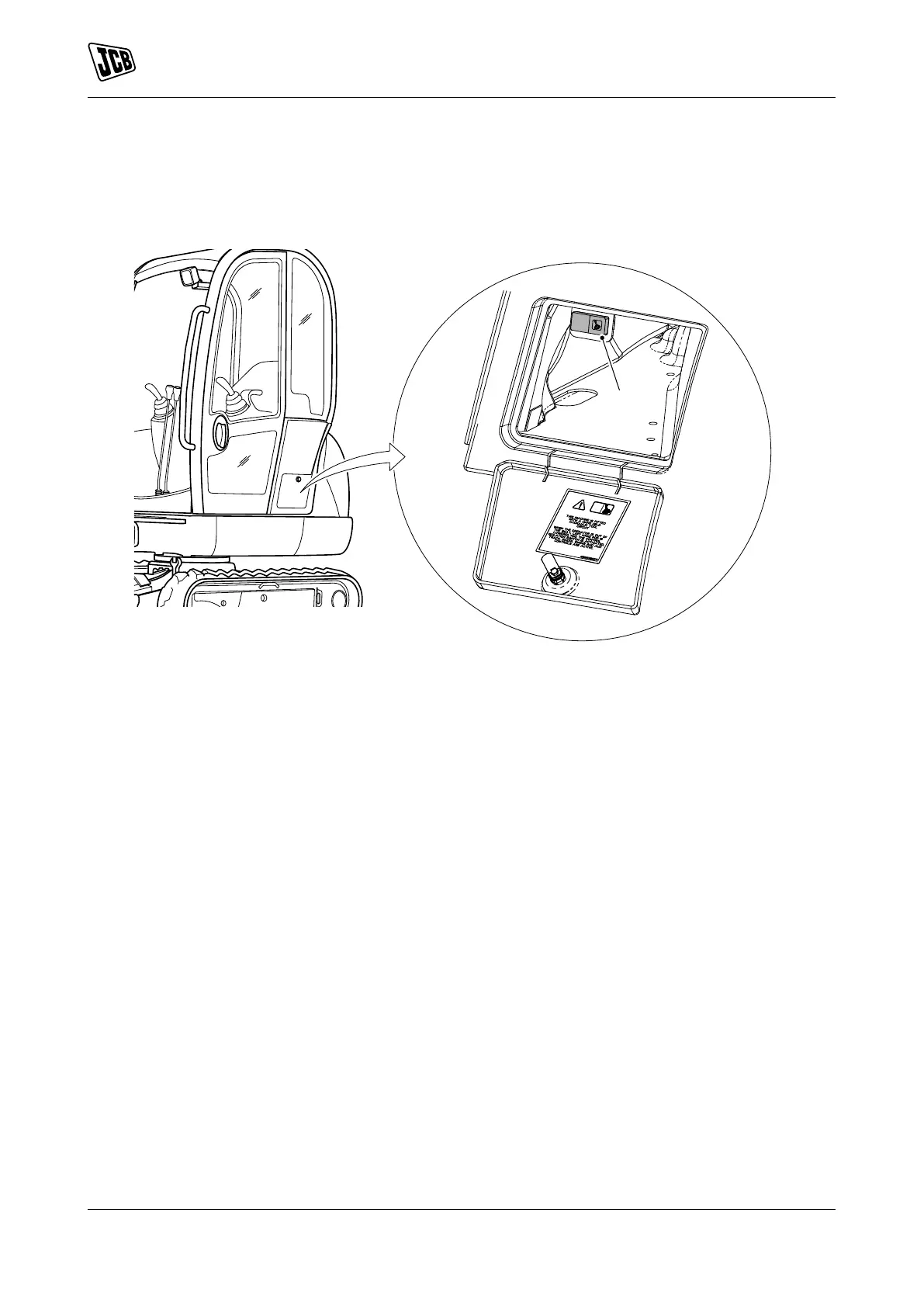

Figure 82.
A
A
Control isolation switch (in toolbox compartment)
6.
Latch the Auxiliary service pedal into position (extreme left) using the locking peg supplied.
107
