Section 1 - General Information
Service Tools
Tool Detail Reference
1-25 1-25
9803/9360-3

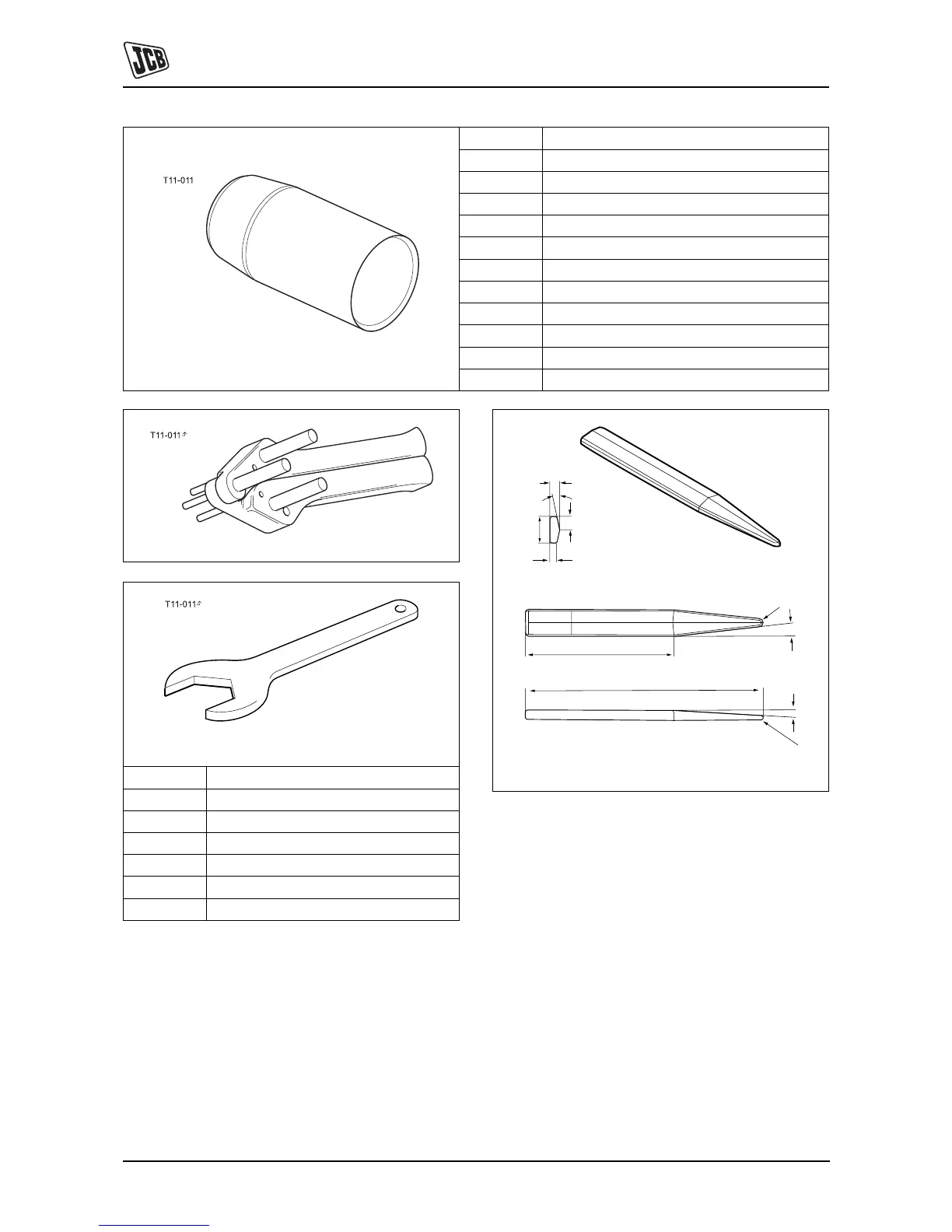

Fig 27. Ram Protection Sleeves
892/01016 For 25 mm Rod Diameter
892/01017 For 30 mm Rod Diameter
892/01018 For 40 mm Rod Diameter
892/01019 For 50 mm Rod Diameter
892/01020 For 50 mm Rod Diameter (slew ram)
892/01021 For 60 mm Rod Diameter
892/01022 For 60 mm Rod Diameter (slew ram)
892/01023 For 65 mm Rod Diameter
892/01024 For 70 mm Rod Diameter
892/01025 For 75 mm Rod Diameter
892/01026 For 80 mm Rod Diameter
892/00167 For 90 mm Rod Diameter
Fig 28. 892/00334 Ram Seal Fitting Tool
Fig 29. Hexagon Spanners for Ram Pistons and End
Caps
992/09300 55mm A/F
992/09400 65mm A/F
992/09500 75mm A/F
992/09600 85mm A/F
992/09700 95mm A/F
992/09900 115mm A/F
992/10000 125mm A/F
Fig 30. 892/01027 Piston Seal Assembly Tool
110mm
175mm
R 1.4mm
3
o
R3m
m
7mm
11
o
10mm
2
0mm
5mm
