06 - Body and Framework
03 - Chassis
37 - Lower Crossmember
06 - 12 9813/5350-2 06 - 12
37 - Lower Crossmember
Remove and Install
(For: 10TFT, 9TFT)
CAUTION This component is heavy. It must only
be removed or handled using a suitable lifting
method and device.
Remove
1. Make the machine safe.
Refer to: PIL 01-03-27.
2. Isolate the battery.
Refer to: PIL 33-03.
3. Remove the pin from the tow hitch.
4. Remove the screws.
5. Support the lower crossmember with suitable
lifting equipment.
6. Remove the lower crossmember from the
machine.

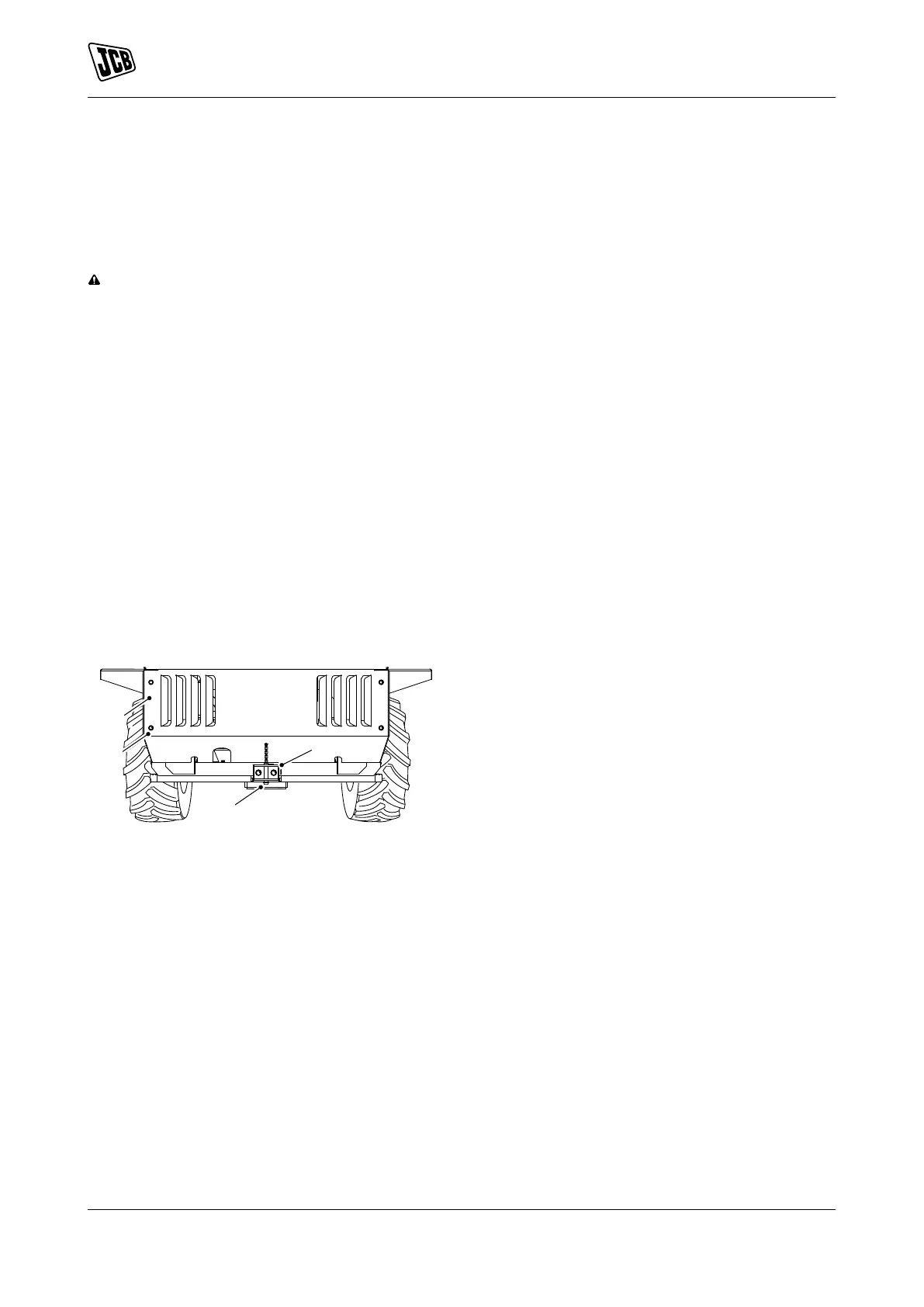

Figure 19.
A Lower crossmember
B Screws
C Pin
D Tow hitch
Install
1. The installation procedure is the opposite of the
removal procedure.
