jcb Fastrac 3230 User Manual

Service Tools
Section C - Electrics
6 - 1
Section 1 General Information
9803/8030
Section 1
6 - 1
Issue 2*
188230

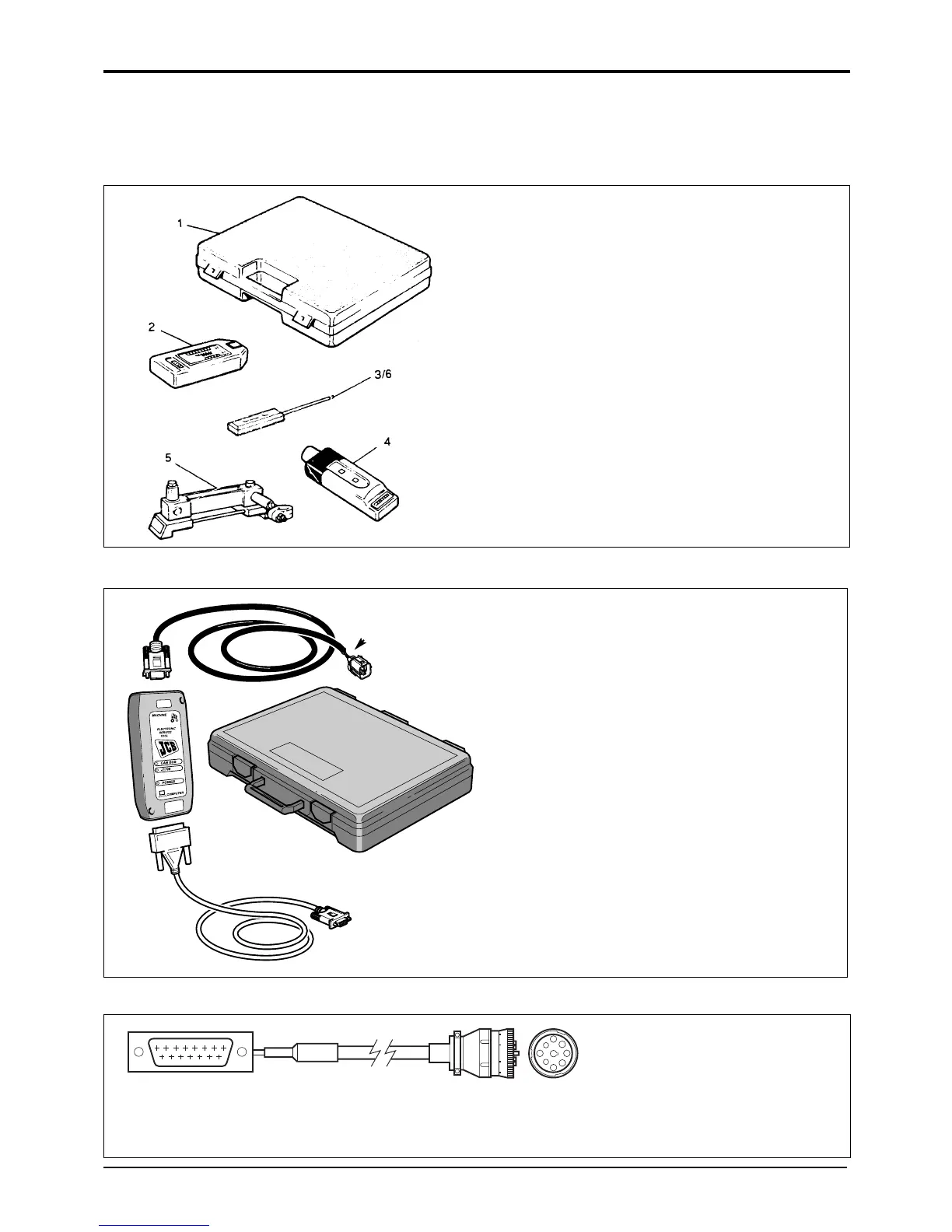

Electrical Test Equipment
1 892/00283 Tool Kit Case
2 892/00281 AVO Meter
3 892/00286 Surface Temperature Probe
4 892/00284 Microtach Digital Tachometer
5 892/00282 100 Amp Shunt - open type
6 892/00285 Hydraulic Oil Temperature Probe
7 892/00298 Fluke 85 Multimeter
8
1514131211109
7654321
D
F
AB
C
H
J
E
G
A386040
721/10885 Harness - Diagnostic (J1939)
A360250
892/01033 Data Link Adapter Kit - ABS
Note: Item A of the Data Link Adapter Kit is unsuitable
for use with the Fastrac and must be replaced by the
‘Harness - Diagnostic (J1939)’ shown below.
AA
*
