Maintenance
Engine
99
9831/0650-3
99
Alarms
During
normal
operation
and
a
duty
cycle
of 50%,
an
indicator
light
mounted
on
the
board
flashes
every
two
seconds. It flashes differently in the event of intervention or alarm.

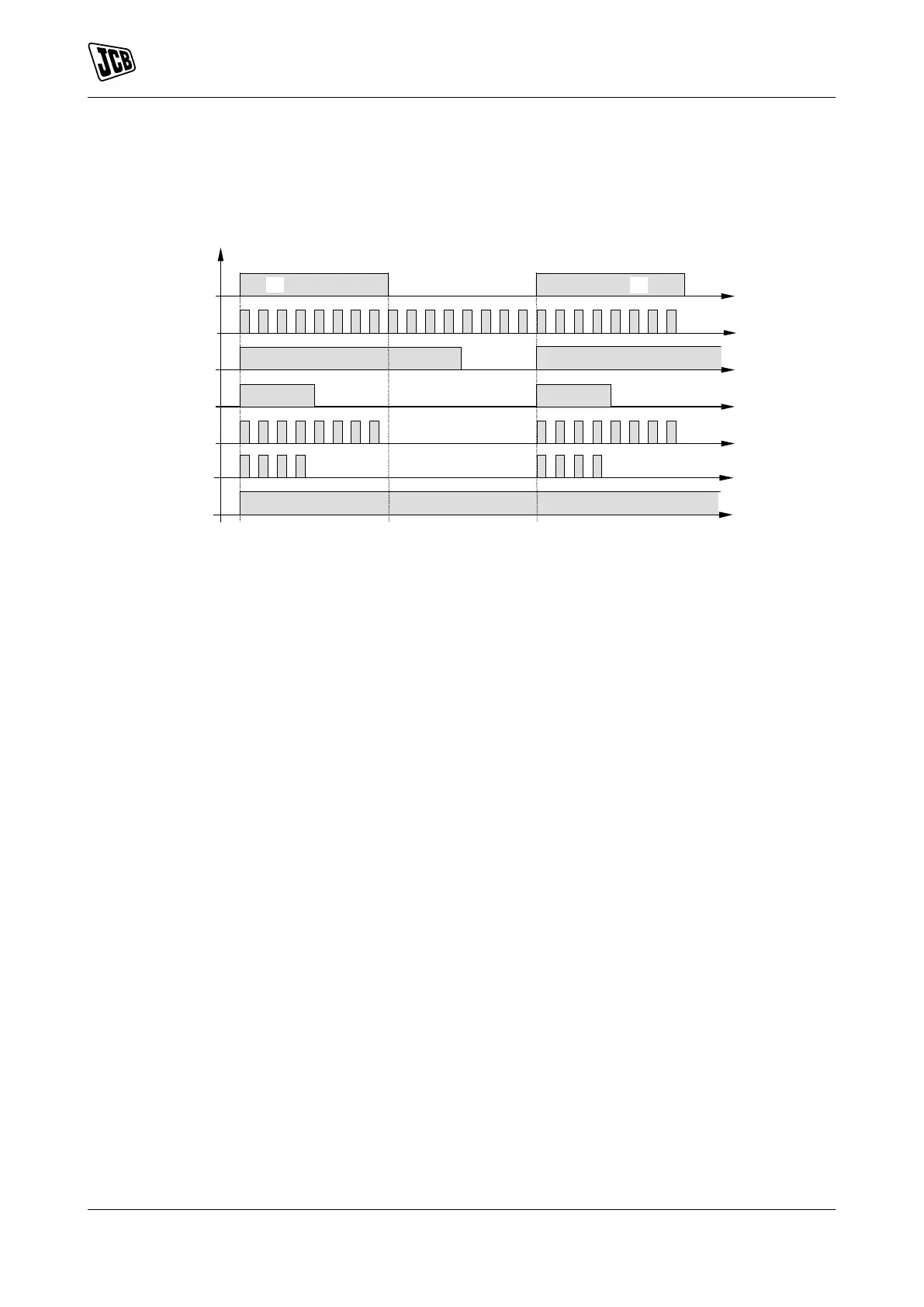

Figure 78.
A
B
C
D
E
F
Y
G
L
L
M
H
J
K
X
A
Stop
B
Amp and (Hz or O.S.)
C
Hz or O.S.
D
Amp
E
Short circuit
F
Check sum
G
Ok
H
Allarm intervention
J
1
K
2
L
Lead on
M
Lead off
X
t (sec)
Y
Led
105
107
