06 - Body and Framework
06 - Moveable Panel and Cover
06 - Engine Compartment
06 - 6
9813/6700-1
06 - 6
06 - Engine Compartment
Open and Close
Open
1.
Make the machine safe.
Refer to: Safety (Page 01-1).
2.
Use the ignition key to unlock the cover
.
3.
Pull
the
handle
to
release
the
latch.
The
cover
opens
automatically
and
is
supported
on
a
gas
strut.
4.
Ensure the support bar has fully engaged.

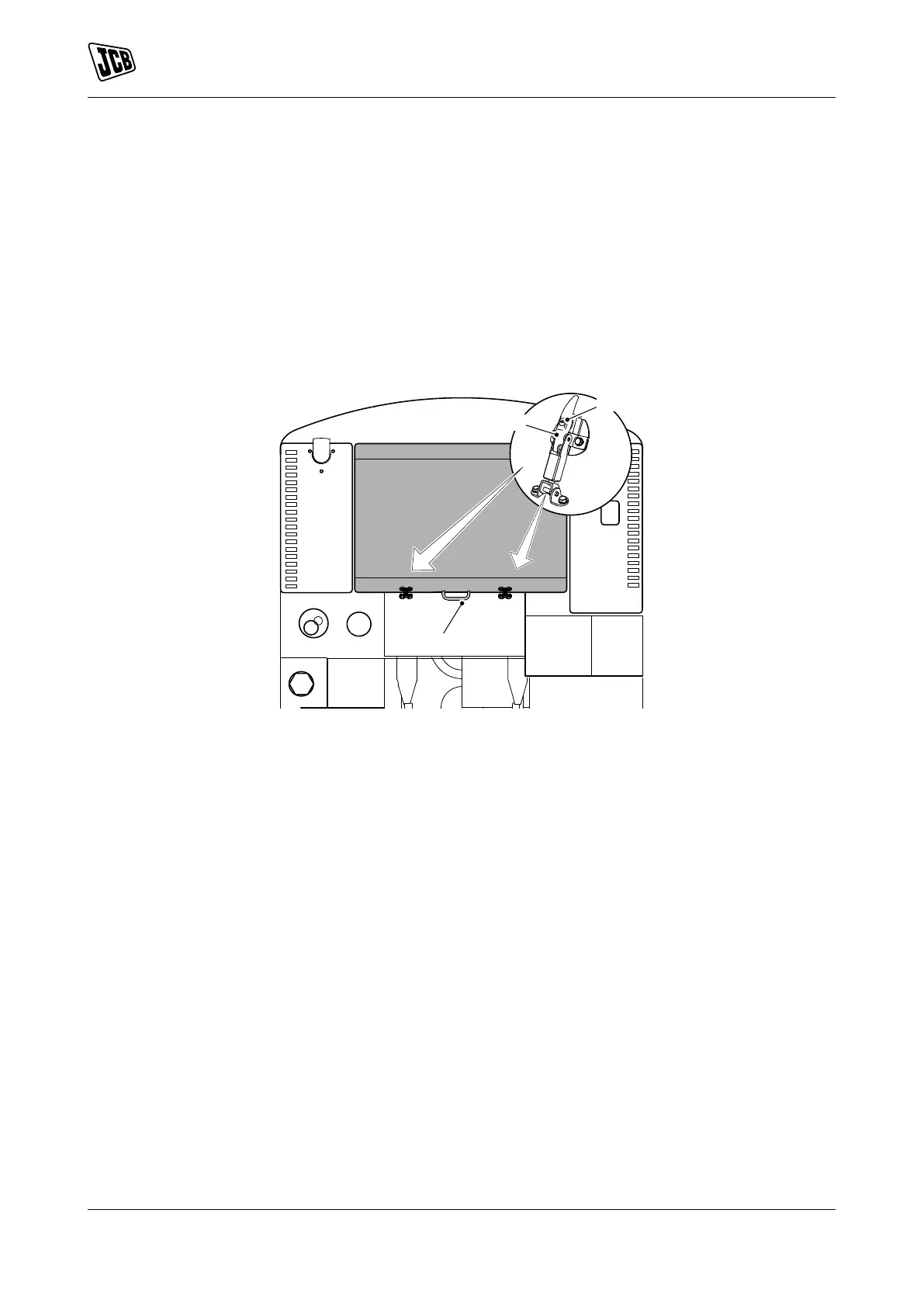

Figure 16.
A
B
C
A
Lock
B
Handle
C
Cover
49
