jcb JS160W Service Manual

01 - Machine
09 - Description
15 - Service Point Locations
01 - 18 9813/2650-3 01 - 18
15 - Service Point Locations
Introduction
CAUTION Make sure the steps, handrails, and
your footwear soles are clean and dry before
climbing onto the machine. Always face the
machine when climbing on and off it.
Upper Structure

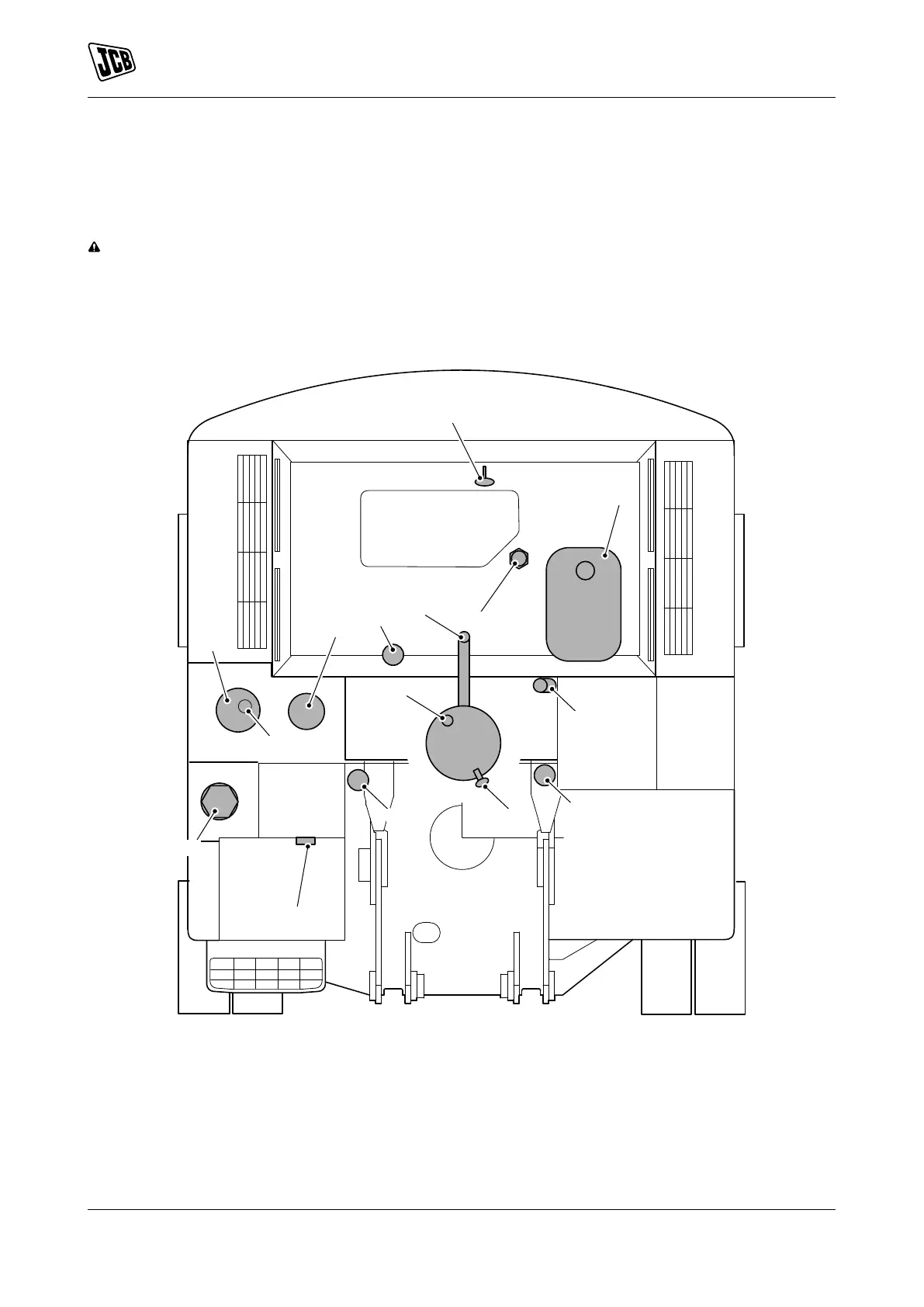

Figure 5.
A
B
C
E
F
G
D
H
J
K
LM
Q
N
P
A Engine oil dipstick B Radiator cap and expansion bottle
C Engine oil filler cap D Diesel level indicator
E Fuel filler cap F Cover - suction strainer
G Hydraulic oil filler cap/ cover - return filter H Hydraulic tank breather
J Drain plug - slew gearbox K Filler port - slew gearbox (if installed)
L Dipstick - slew gearbox M Filter, breaker in-line - JS110 - 190
N Cushion valve filter - JS115 - 190 P Filter, breaker in-line - JS200 - 220
Q Cushion valve filter - JS200 - 220
