About the Product
Product and Component Identification
12 9821/3250-5 12

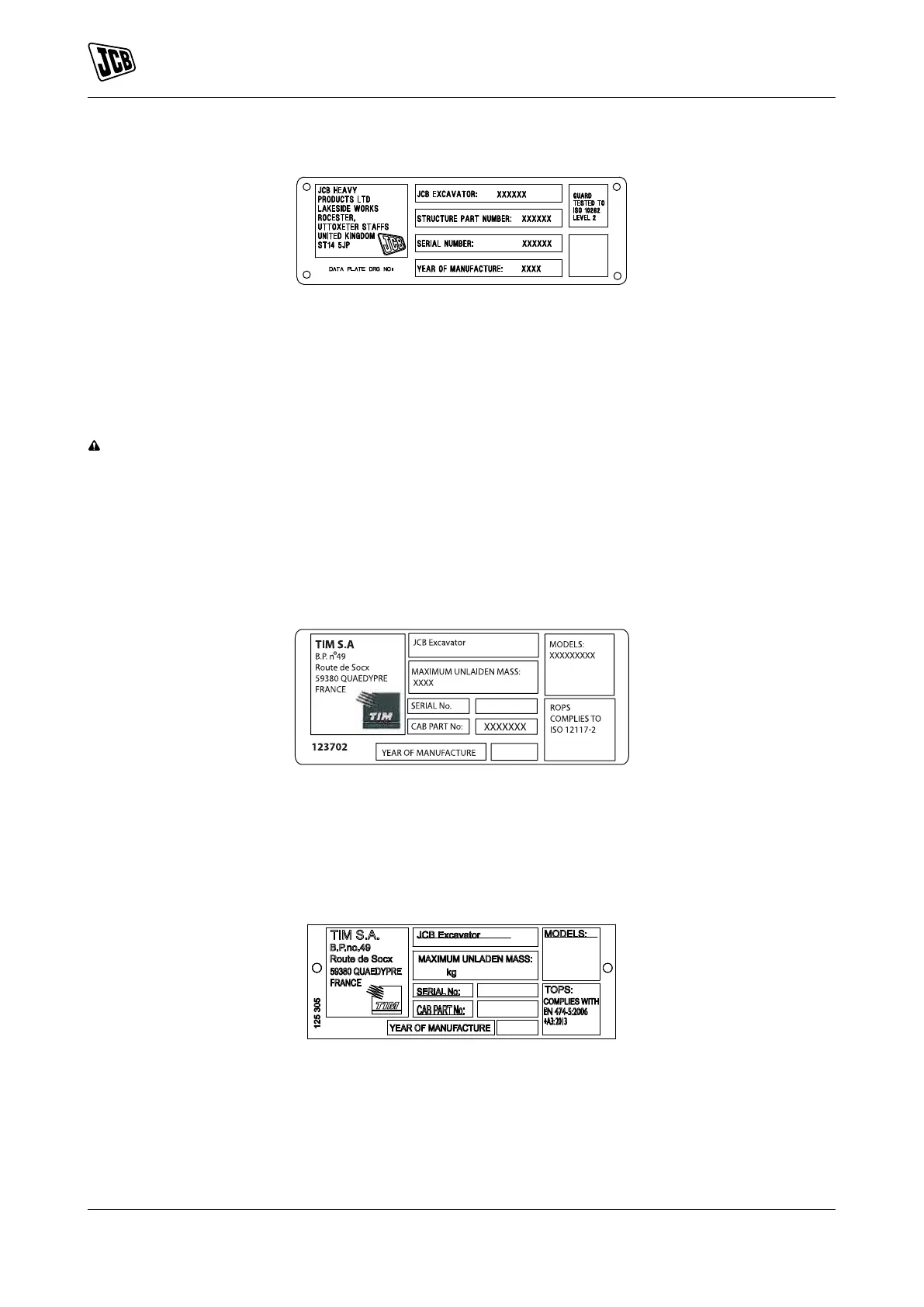

Figure 9.
The cab mounted FOGS available for the JS excavator range are tested to ISO 10262 level 2 and comply
with EN 13627:2000.
The frame mounted FOGS available for the JS excavator range are tested to ISO 3449 level 2 and comply
with EN 13627:2000.
ROPS Data Plate
WARNING Your machine may be installed with a Roll-Over Protective Structure (ROPS) indicating that the
purchaser specified the machine for use in applications where there is risk of roll-over. ROPS is a device
to protect the operator in the event of roll-over. Any damage or modification to the structure may invalidate
the ROPS certification. If damage has occurred then an authorised JCB dealer should be consulted.
An excavator with a ROPS (Roll-Over Protective Structure) can be identified by referring to the cab identification
plate. Work place (work site, job site) risk assessment should facilitate the machine selection and the need
for an excavator with a ROPS.
Figure 10.
TOPS Data Plate
An excavator with a TOPS (Tip-Over Protective Structure) can be identified by referring to the cab identification
plate. Work place (work site, job site) risk assessment should facilitate the machine selection and the need
for an excavator with a TOPS.
Figure 11.
