About the Product
Operator Station
15 9831/1100-6 15

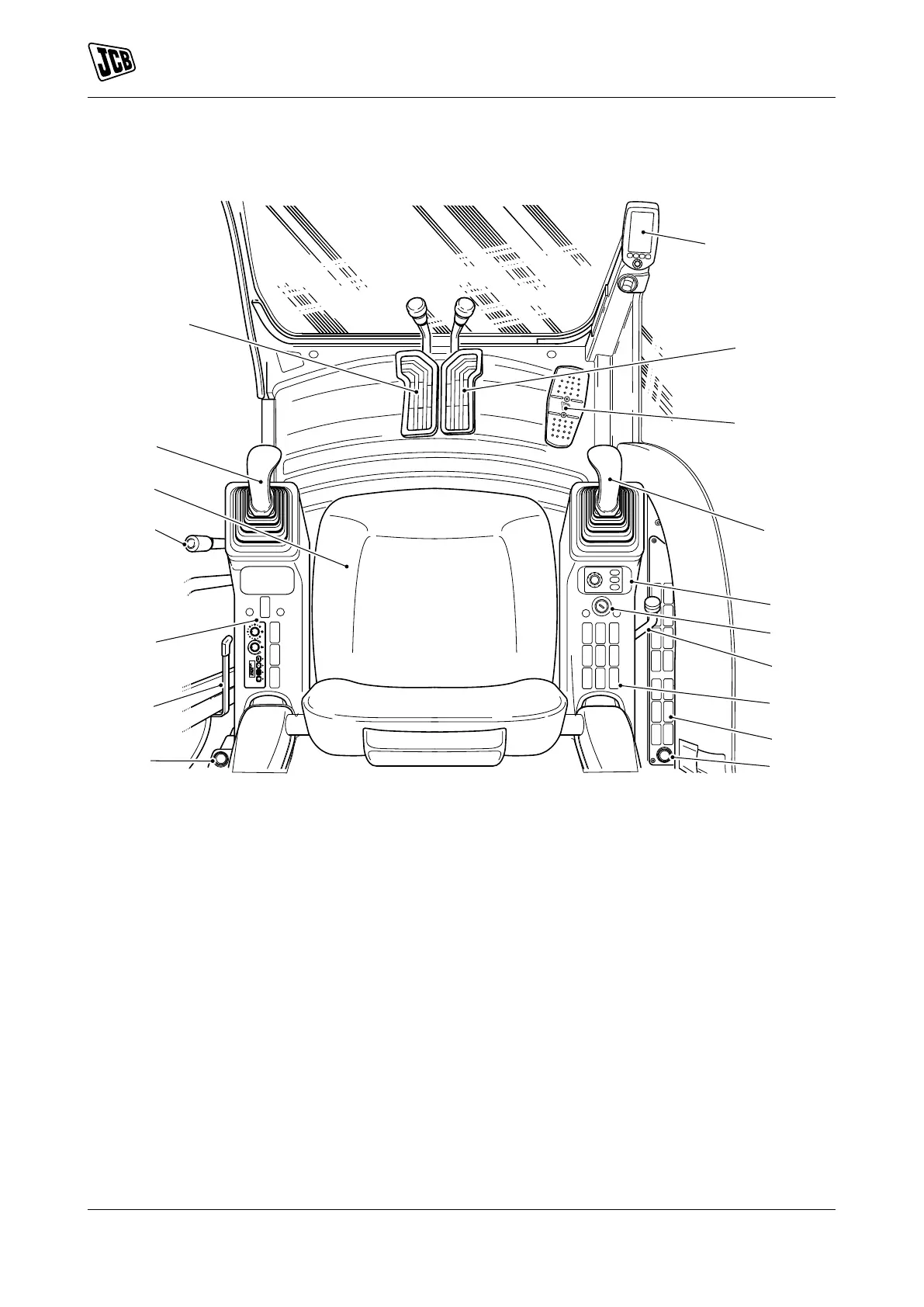

Operator Station
Component Locations
Figure 12.
C
B
H
L
N
A
E
G
K
J
D
M
F
P
Q
J
K
A Left hand track control, Refer to: Track Controls
(Page 60).
B DECU (Display Electronic Control Unit), Refer
to: Instrument Panel (Page 64).
C Right hand track control, Refer to: Track
Controls (Page 60).
D Optional circuit pedal, Refer to: Auxiliary Circuit
Controls (Page 107).
E Right joystick, Refer to: Excavator Arm Controls
(Page 99).
F Machine power band controller, Refer to:
General (Page 63).
G Ignition switch, Refer to: Ignition Switch
(Page 16).
H Dozer lever,
J Right switch console, Refer to: Console
Switches (Page 18).
K 12V auxiliary power socket, Refer to: Auxiliary
Power Socket (Page 126).
L Door lever, Refer to: Operator Door
(Page 31).
M Left switch console, Refer to: Console Switches
(Page 18).
N Controls isolation lever,Refer to: Control Lock
(Page 58).
P Seat, Refer to: Operator Seat (Page 40).
Q Left joystick, Refer to: Excavator Arm Controls
(Page 99).
