01 - Machine
09 - Description
12 - Main Component Locations
01 - 21
9813/7500-2
01 - 21
12 - Main Component Locations
Introduction

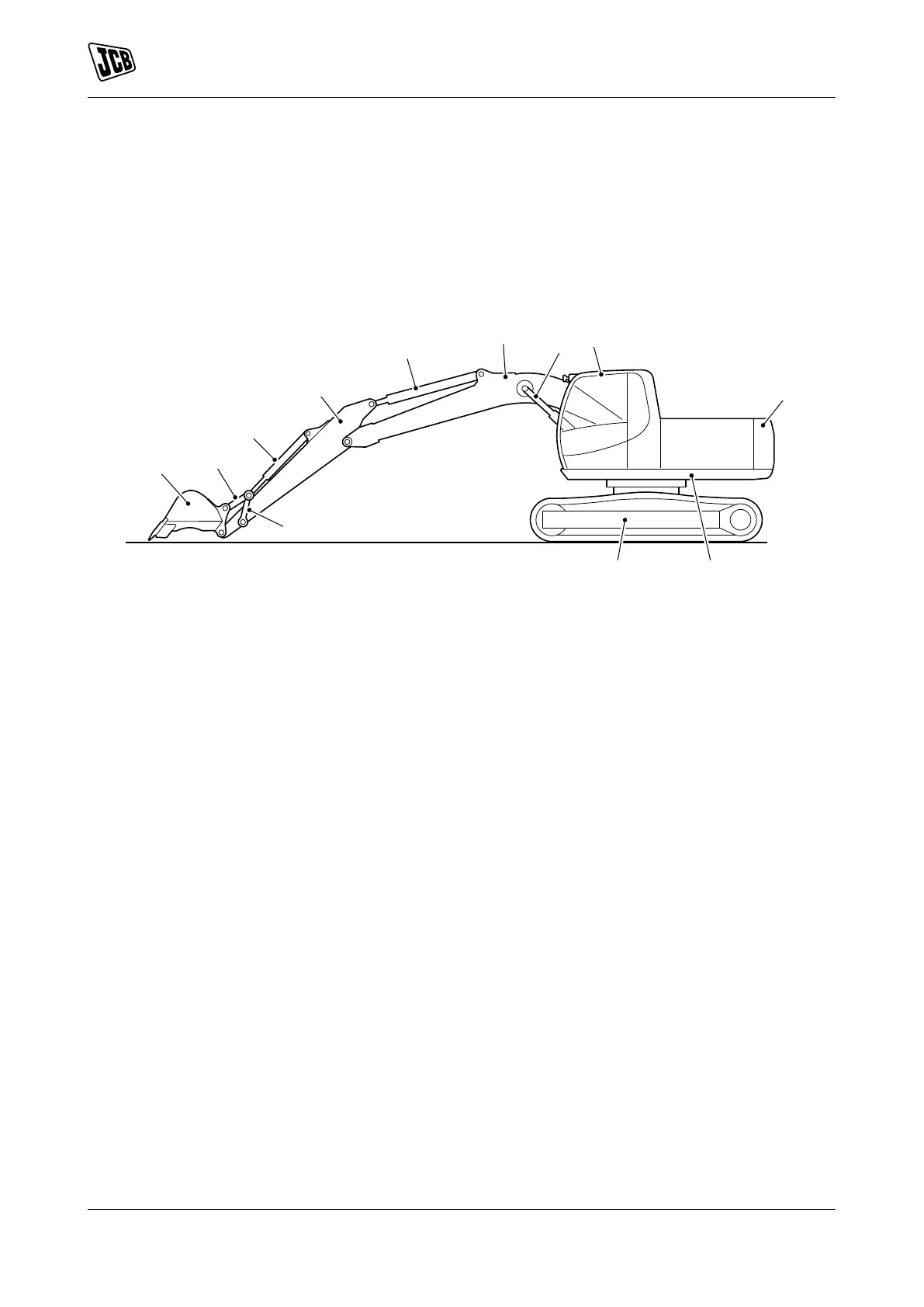

Main Assemblies
Figure 3.
A
B
C
D
F
G
H
J
K
E
M
L
A
Bucket (attachment)
B
Tipping link
C
Bucket ram
D
Dipper
E
T
ipping lever
F
Dipper ram
G
Boom
H
Boom ram
J
Operator station
K
Counterweight
L
Undercarriage
M
Revolving chassis
26
28
