jcb S3246E User Manual

Maintenance
Service Points
62 9831/3200-3 62
Battery Compartment

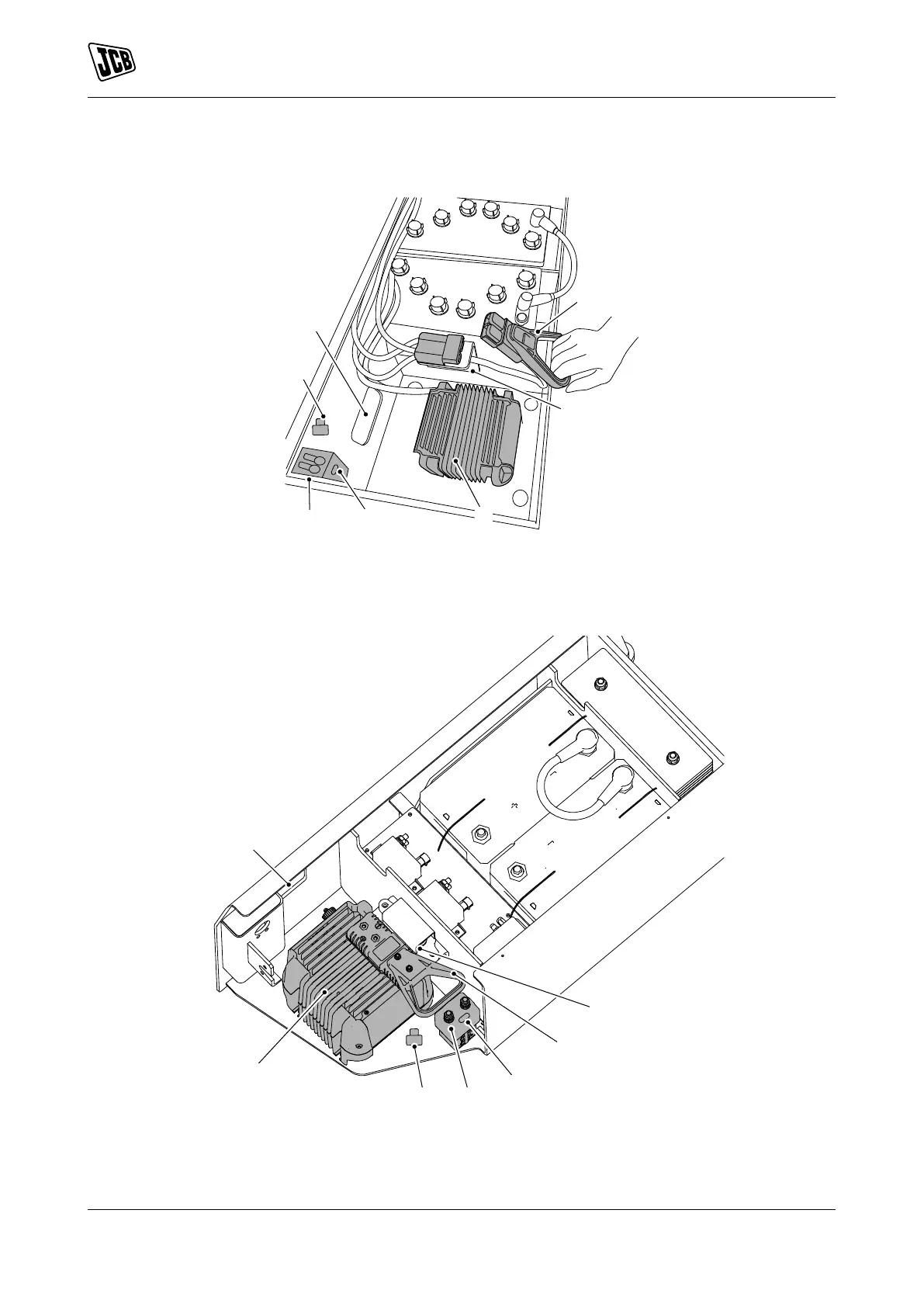

Figure 36. Lead Acid Battery
B
C
A
E
G
D
F
A Battery isolator B Primary fuses (275A rating)
C Battery Charger D Primary fuse (20A rating)
E DC contactor resistor F Battery charger status sight hole
G DC contactor
Figure 37. Lithium Iron Phosphate Battery
E
GD
F
A
B
C
A Battery isolator B Primary fuses (275A rating)
C Battery Charger D Primary fuse (20A rating)
E DC contactor resistor F Battery charger status sight hole
G DC contactor
